| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_103T01_9000006524_54704cztM0_level2.fits | modeM0/AS1A14_103T01_9000006524_54704cztM0_level2_quad_clean.evt |
| Size (bytes) | 599,149,440 | 90,224,640 |
| Size | 571.4 MB | 86.0 MB |
| Events in quadrant A | 4,362,998 | 599,948 |
| Events in quadrant B | 4,647,366 | 651,669 |
| Events in quadrant C | 5,815,112 | 568,455 |
| Events in quadrant D | 6,854,100 | 463,029 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17292 | 1 |
| B | 0 | 18361 | 1 |
| C | 0 | 21737 | 1 |
| D | 0 | 24858 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6435 | 447 | 6.946387% |
| B | 6435 | 372 | 5.780886% |
| C | 6435 | 531 | 8.251748% |
| D | 6435 | 1308 | 20.326340% |

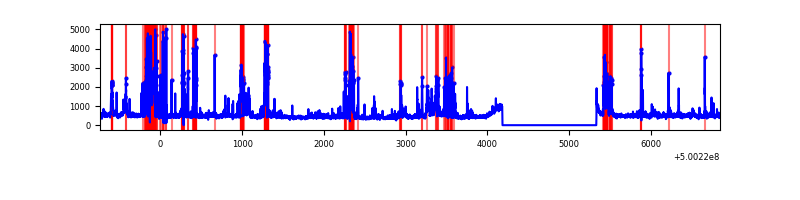

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7585 | 6436 | 299 | 299 | 3.94% | 4.65% |  |
| B | 7585 | 6436 | 247 | 247 | 3.26% | 3.84% |  |
| C | 7585 | 6436 | 546 | 546 | 7.20% | 8.48% |  |
| D | 7585 | 6435 | 1062 | 1062 | 14.00% | 16.50% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 862190 | 5144.1 | 676 | 657 | 167.5 |
| A | 7 | 14 | 478050 | 2850.45 | 676 | 657 | 167.5 |
| A | 3 | 14 | 88654 | 525.42 | 676 | 657 | 167.5 |
| B | 2 | 249 | 1056036 | 7357.53 | 676 | 652 | 143.4 |
| B | 7 | 0 | 600638 | 4182.75 | 676 | 652 | 143.4 |
| B | 0 | 213 | 183431 | 1274.23 | 676 | 652 | 143.4 |
| C | 4 | 5 | 2079629 | 11586.71 | 649 | 644 | 179.4 |
| C | 3 | 242 | 699288 | 3893.72 | 649 | 644 | 179.4 |
| C | 12 | 250 | 124996 | 693.05 | 649 | 644 | 179.4 |
| D | 11 | 129 | 3256076 | 18771.6 | 609 | 582 | 173.4 |
| D | 3 | 224 | 467461 | 2692.09 | 609 | 582 | 173.4 |
| D | 3 | 12 | 194658 | 1119.07 | 609 | 582 | 173.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

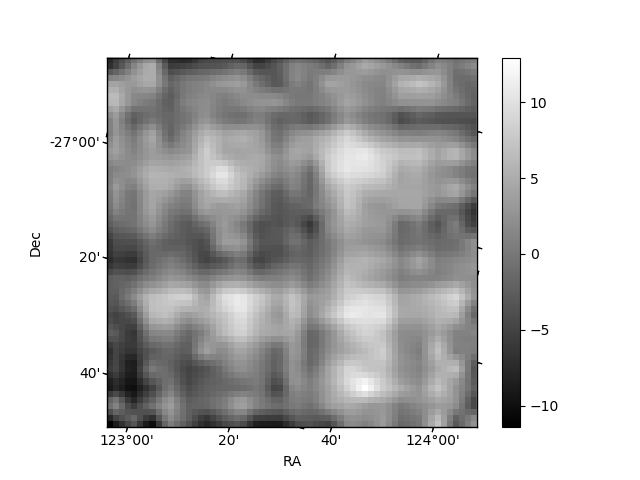

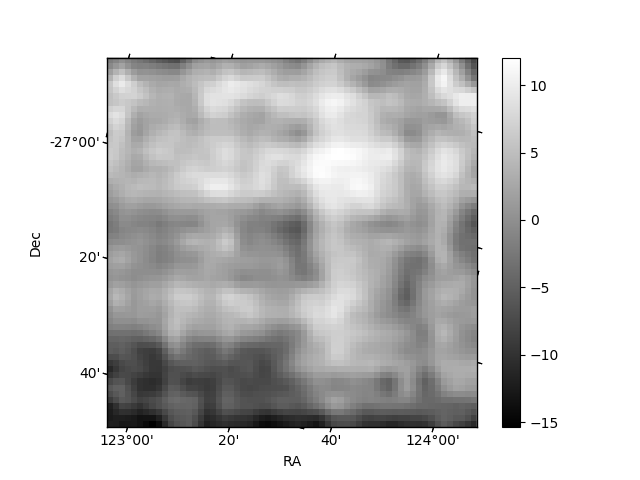

| Plot type | Count rate plots | Images |
|---|---|---|

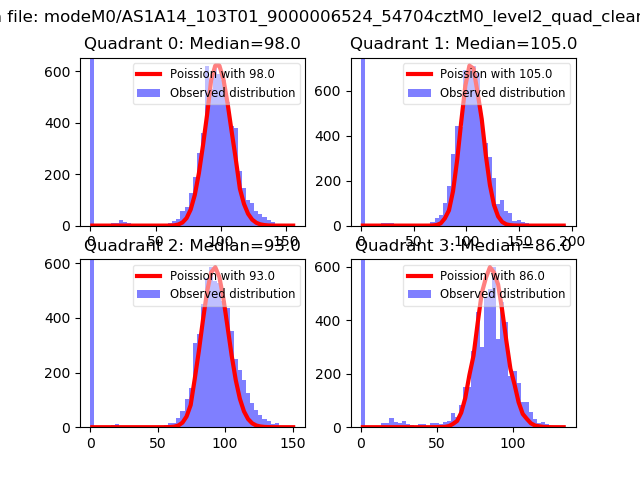

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

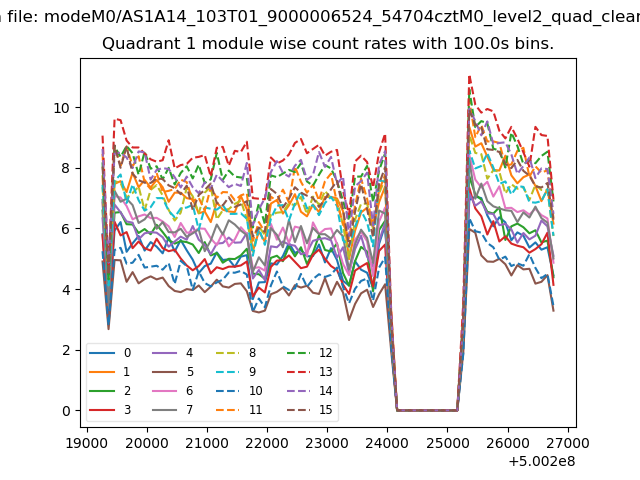

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

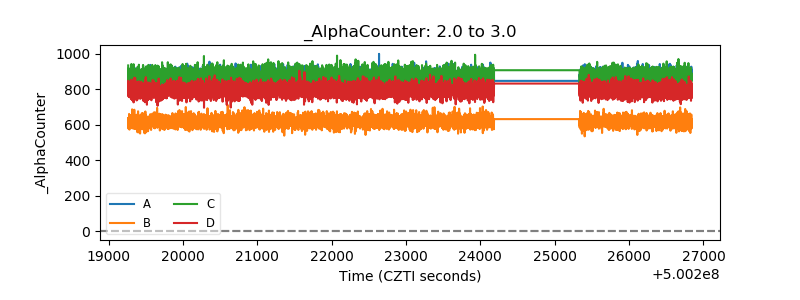

| Alpha Counter |  |

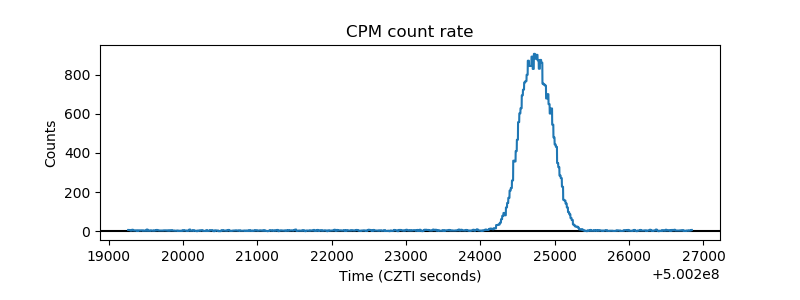

| _CPM_Rate |  |

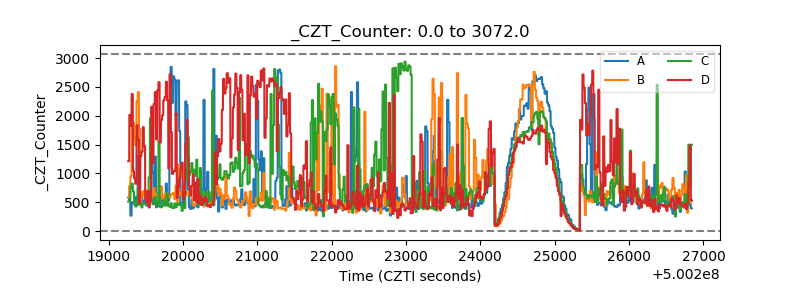

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
