| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_103T01_9000006524_54705cztM0_level2.fits | modeM0/AS1A14_103T01_9000006524_54705cztM0_level2_quad_clean.evt |
| Size (bytes) | 520,882,560 | 94,150,080 |
| Size | 496.8 MB | 89.8 MB |
| Events in quadrant A | 3,725,672 | 640,504 |
| Events in quadrant B | 5,248,950 | 658,020 |
| Events in quadrant C | 4,417,828 | 591,992 |
| Events in quadrant D | 5,386,127 | 508,715 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15384 | 2 |
| B | 0 | 19980 | 2 |
| C | 0 | 17711 | 2 |
| D | 0 | 20577 | 7 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6473 | 192 | 2.966167% |
| B | 6473 | 549 | 8.481384% |
| C | 6473 | 366 | 5.654256% |
| D | 6472 | 889 | 13.736094% |

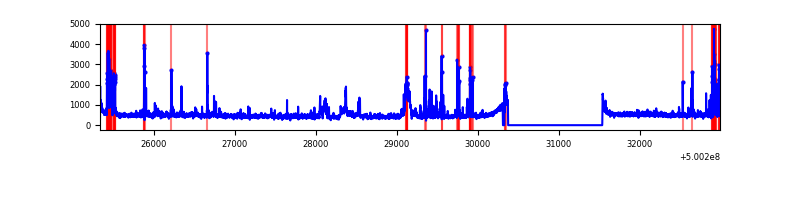

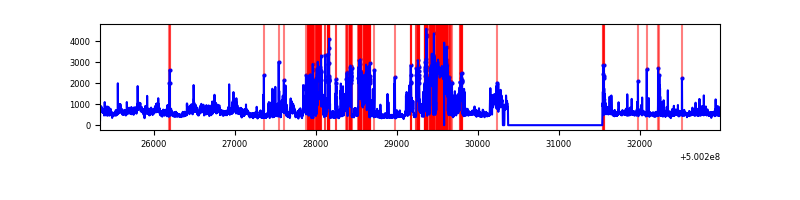

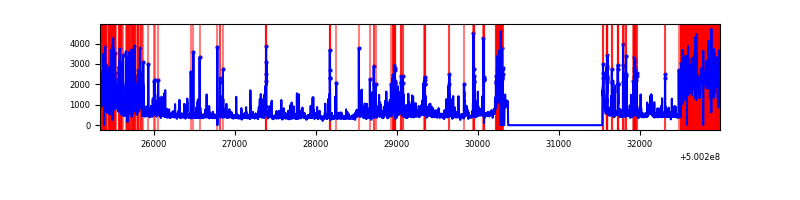

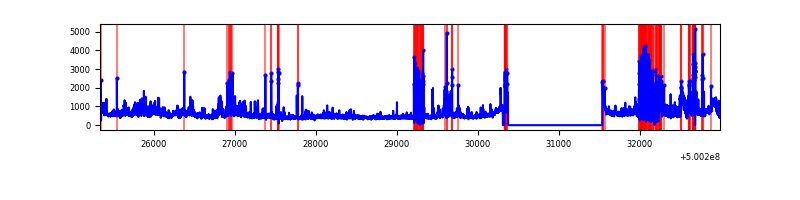

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7658 | 6475 | 92 | 92 | 1.20% | 1.42% |  |
| B | 7658 | 6475 | 414 | 414 | 5.41% | 6.39% |  |
| C | 7658 | 6475 | 163 | 163 | 2.13% | 2.52% |  |
| D | 7657 | 6473 | 650 | 650 | 8.49% | 10.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 14 | 383821 | 2198.24 | 704 | 687 | 174.3 |
| A | 0 | 8 | 285343 | 1633.22 | 704 | 687 | 174.3 |
| A | 3 | 14 | 138176 | 788.85 | 704 | 687 | 174.3 |
| B | 2 | 249 | 1411664 | 9780.07 | 681 | 658 | 144.3 |
| B | 7 | 0 | 438890 | 3037.5 | 681 | 658 | 144.3 |
| B | 1 | 255 | 360435 | 2493.71 | 681 | 658 | 144.3 |
| C | 3 | 242 | 693908 | 3813.38 | 663 | 659 | 181.8 |
| C | 4 | 5 | 633927 | 3483.44 | 663 | 659 | 181.8 |
| C | 14 | 254 | 173321 | 949.76 | 663 | 659 | 181.8 |
| D | 11 | 129 | 1929276 | 10582.72 | 630 | 602 | 182.2 |
| D | 3 | 224 | 344822 | 1888.75 | 630 | 602 | 182.2 |
| D | 3 | 12 | 201024 | 1099.72 | 630 | 602 | 182.2 |

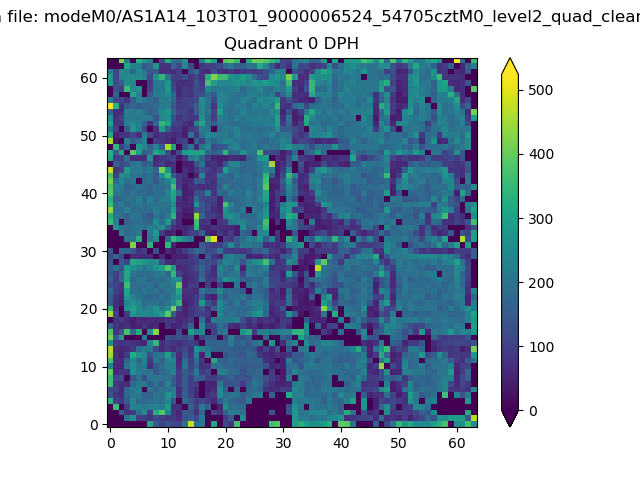

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

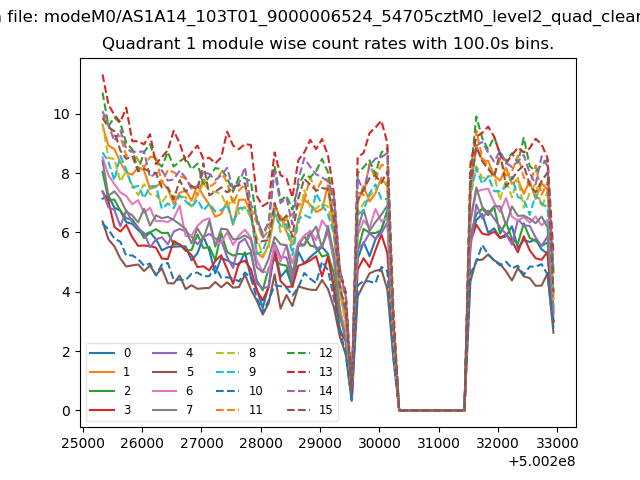

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

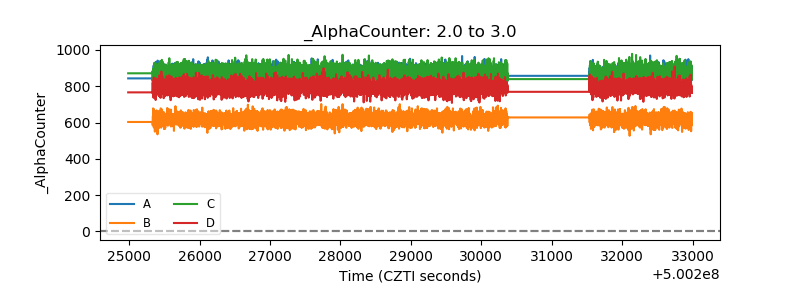

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

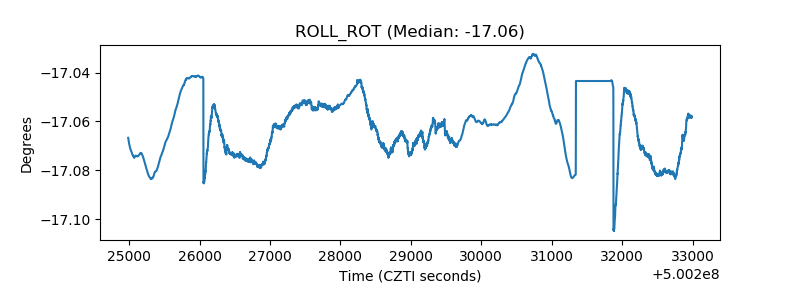

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
