| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_103T01_9000006524_54706cztM0_level2.fits | modeM0/AS1A14_103T01_9000006524_54706cztM0_level2_quad_clean.evt |
| Size (bytes) | 586,039,680 | 84,813,120 |
| Size | 558.9 MB | 80.9 MB |
| Events in quadrant A | 3,593,676 | 600,422 |
| Events in quadrant B | 4,453,458 | 625,824 |
| Events in quadrant C | 5,672,793 | 504,253 |
| Events in quadrant D | 7,489,960 | 403,497 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14772 | 1 |
| B | 0 | 17505 | 1 |
| C | 0 | 21115 | 1 |
| D | 0 | 26641 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6221 | 177 | 2.845202% |
| B | 6221 | 391 | 6.285163% |
| C | 6222 | 918 | 14.754098% |
| D | 6222 | 1808 | 29.058181% |

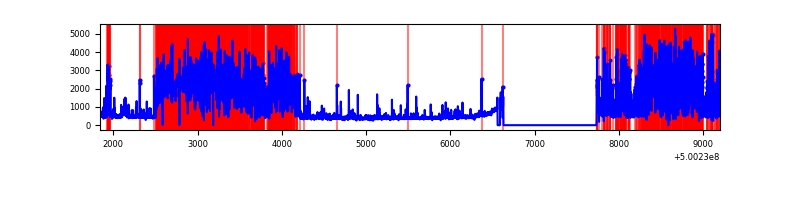

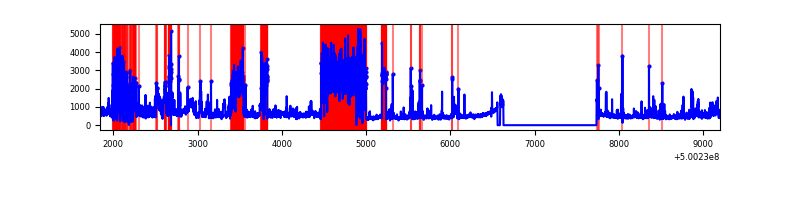

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7356 | 6223 | 89 | 89 | 1.21% | 1.43% |  |
| B | 7356 | 6223 | 263 | 263 | 3.58% | 4.23% |  |
| C | 7357 | 6224 | 751 | 751 | 10.21% | 12.07% |  |
| D | 7357 | 6223 | 1523 | 1523 | 20.70% | 24.47% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 264385 | 1588.3 | 665 | 650 | 166.0 |
| A | 7 | 14 | 236115 | 1418.04 | 665 | 650 | 166.0 |
| A | 3 | 14 | 200811 | 1205.43 | 665 | 650 | 166.0 |
| B | 2 | 249 | 1129501 | 8183.57 | 652 | 632 | 137.9 |
| B | 7 | 0 | 335374 | 2426.66 | 652 | 632 | 137.9 |
| B | 0 | 213 | 141801 | 1023.38 | 652 | 632 | 137.9 |
| C | 4 | 5 | 2575794 | 15420.96 | 602 | 596 | 167.0 |
| C | 3 | 242 | 342748 | 2048.89 | 602 | 596 | 167.0 |
| C | 1 | 16 | 68345 | 405.7 | 602 | 596 | 167.0 |
| D | 11 | 129 | 3547377 | 22299.45 | 549 | 522 | 159.1 |
| D | 15 | 94 | 1214114 | 7629.98 | 549 | 522 | 159.1 |
| D | 3 | 12 | 212533 | 1332.94 | 549 | 522 | 159.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

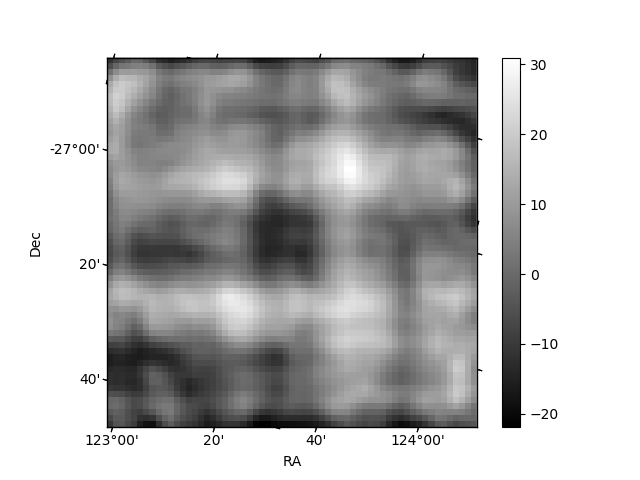

| Plot type | Count rate plots | Images |
|---|---|---|

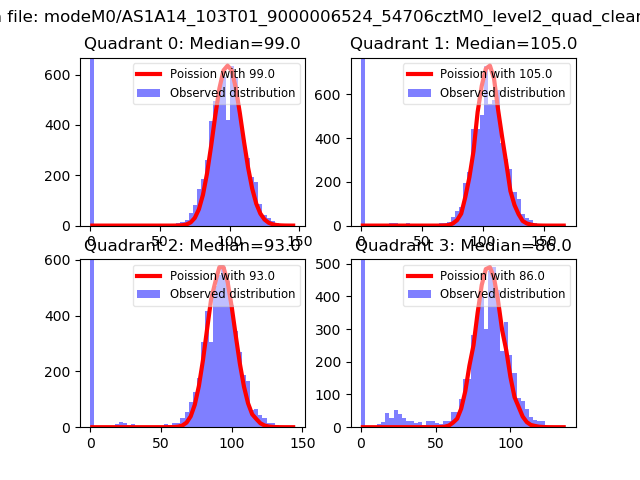

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

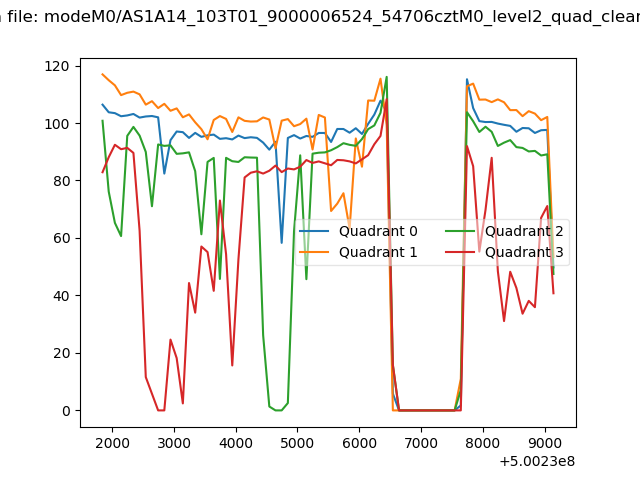

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

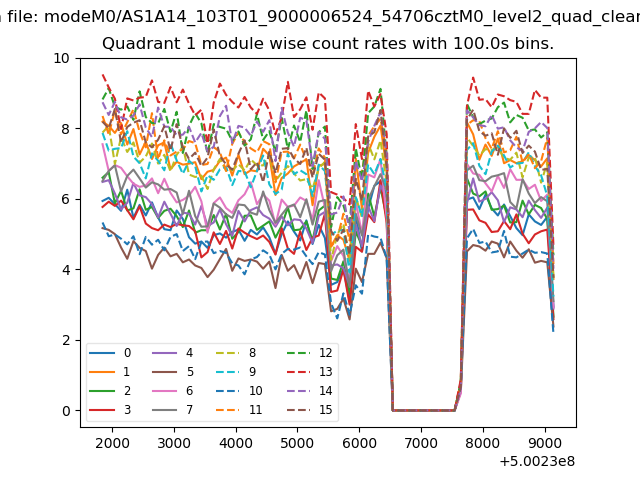

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

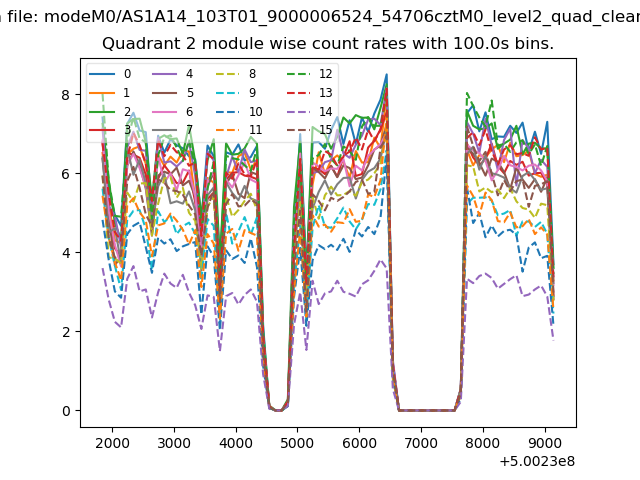

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

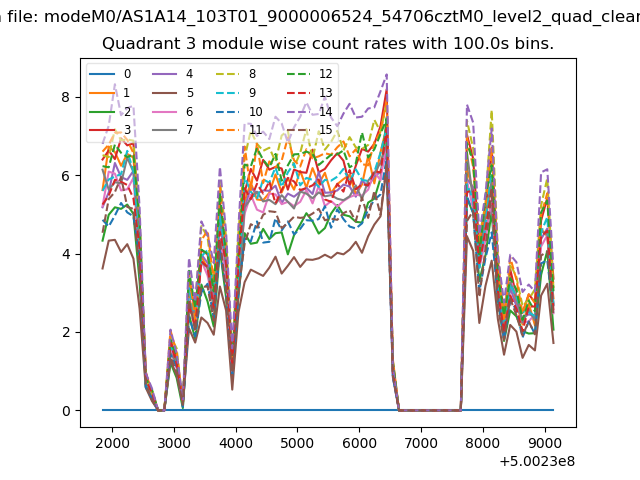

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
