| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_103T01_9000006524_54715cztM0_level2.fits | modeM0/AS1A14_103T01_9000006524_54715cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,287,915,840 | 255,196,800 |
| Size | 1.2 GB | 243.4 MB |
| Events in quadrant A | 9,062,049 | 1,651,375 |
| Events in quadrant B | 11,682,409 | 1,778,930 |
| Events in quadrant C | 10,623,852 | 1,585,504 |
| Events in quadrant D | 14,847,489 | 1,413,187 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 380 | 0 |
| B | 0 | 380 | 0 |
| C | 0 | 380 | 0 |
| D | 0 | 380 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41349 | 4 |
| B | 0 | 48303 | 5 |
| C | 0 | 45888 | 6 |
| D | 0 | 57569 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18847 | 500 | 2.652942% |
| B | 18846 | 614 | 3.257986% |
| C | 18845 | 625 | 3.316530% |
| D | 18846 | 1733 | 9.195585% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20788 | 18851 | 197 | 197 | 0.95% | 1.05% |  |
| B | 20787 | 18851 | 201 | 201 | 0.97% | 1.07% |  |
| C | 20787 | 18851 | 340 | 340 | 1.64% | 1.80% |  |
| D | 20786 | 18850 | 1342 | 1342 | 6.46% | 7.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 14 | 493564 | 1031.07 | 1930 | 1880 | 476.9 |
| A | 3 | 14 | 367539 | 766.79 | 1930 | 1880 | 476.9 |
| A | 0 | 8 | 265762 | 553.36 | 1930 | 1880 | 476.9 |
| B | 7 | 0 | 1844404 | 4584.67 | 1895 | 1825 | 401.9 |
| B | 2 | 249 | 1618622 | 4022.88 | 1895 | 1825 | 401.9 |
| B | 10 | 247 | 205918 | 507.82 | 1895 | 1825 | 401.9 |
| C | 9 | 38 | 877579 | 1708.39 | 1874 | 1859 | 512.6 |
| C | 14 | 254 | 593240 | 1153.69 | 1874 | 1859 | 512.6 |
| C | 3 | 248 | 514977 | 1001.01 | 1874 | 1859 | 512.6 |
| D | 15 | 94 | 4331560 | 8228.92 | 1844 | 1763 | 526.2 |
| D | 3 | 12 | 1702145 | 3231.63 | 1844 | 1763 | 526.2 |
| D | 11 | 129 | 706236 | 1338.87 | 1844 | 1763 | 526.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

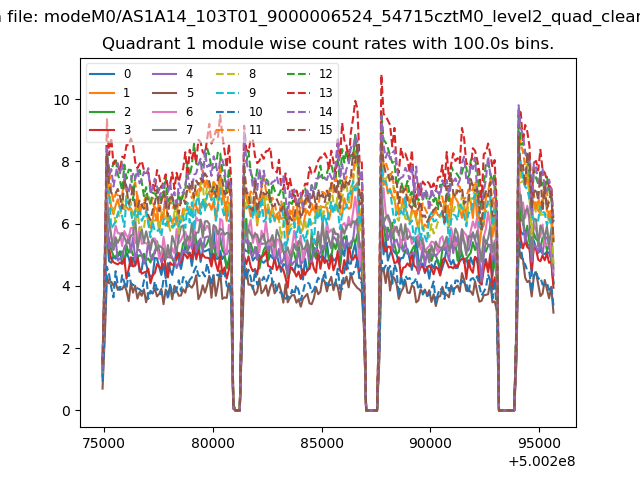

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

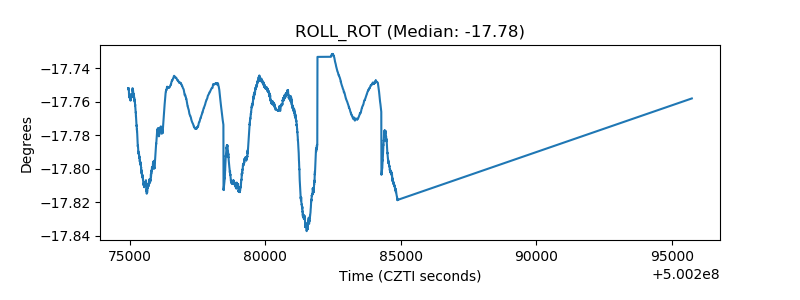

| _ROLL_ROT |  |
| _Roll_DEC |  |

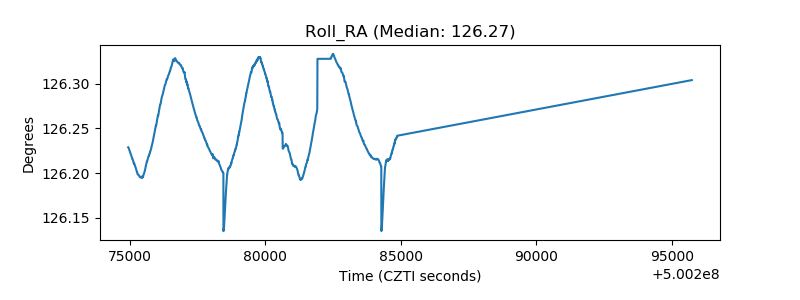

| _Roll_RA |  |

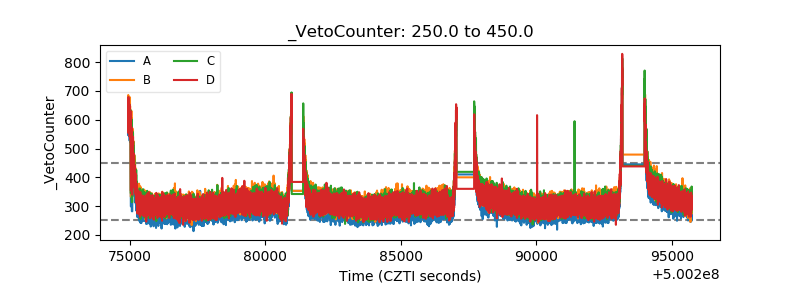

| Veto Counter |  |
