| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_103T01_9000006524_54720cztM0_level2.fits | modeM0/AS1A14_103T01_9000006524_54720cztM0_level2_quad_clean.evt |
| Size (bytes) | 579,695,040 | 94,858,560 |
| Size | 552.8 MB | 90.5 MB |
| Events in quadrant A | 4,154,964 | 633,850 |
| Events in quadrant B | 3,399,674 | 694,796 |
| Events in quadrant C | 4,665,726 | 598,974 |
| Events in quadrant D | 8,731,257 | 488,418 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16921 | 2 |
| B | 0 | 14658 | 2 |
| C | 0 | 18470 | 2 |
| D | 0 | 30462 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6537 | 313 | 4.788129% |
| B | 6537 | 184 | 2.814747% |
| C | 6537 | 404 | 6.180205% |
| D | 6537 | 1315 | 20.116261% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7662 | 6538 | 162 | 162 | 2.11% | 2.48% |  |
| B | 7662 | 6538 | 34 | 34 | 0.44% | 0.52% |  |
| C | 7662 | 6538 | 419 | 419 | 5.47% | 6.41% |  |
| D | 7662 | 6538 | 1180 | 1180 | 15.40% | 18.05% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 190 | 850485 | 4813.54 | 719 | 702 | 176.5 |
| A | 4 | 249 | 232735 | 1314.33 | 719 | 702 | 176.5 |
| A | 0 | 8 | 137053 | 772.35 | 719 | 702 | 176.5 |
| B | 5 | 185 | 135847 | 883.76 | 717 | 693 | 152.9 |
| B | 2 | 249 | 125990 | 819.31 | 717 | 693 | 152.9 |
| B | 10 | 247 | 93344 | 605.84 | 717 | 693 | 152.9 |
| C | 9 | 38 | 1292675 | 6753.05 | 695 | 689 | 191.3 |
| C | 12 | 252 | 202271 | 1053.64 | 695 | 689 | 191.3 |
| C | 13 | 3 | 106308 | 552.06 | 695 | 689 | 191.3 |
| D | 2 | 62 | 3984231 | 21480.71 | 652 | 622 | 185.5 |
| D | 11 | 129 | 1225021 | 6602.29 | 652 | 622 | 185.5 |
| D | 3 | 12 | 237780 | 1278.82 | 652 | 622 | 185.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

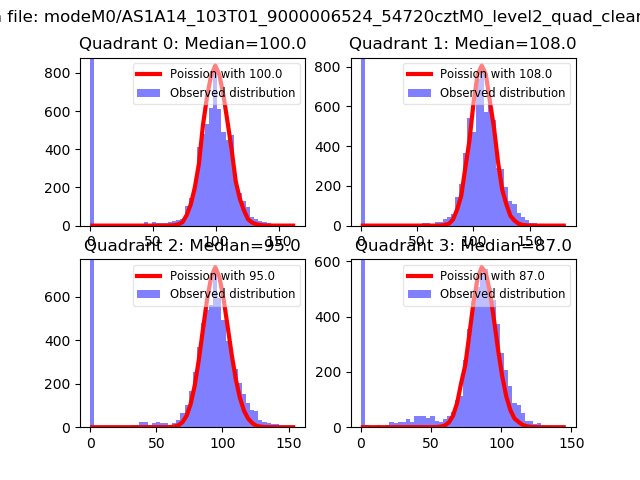

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

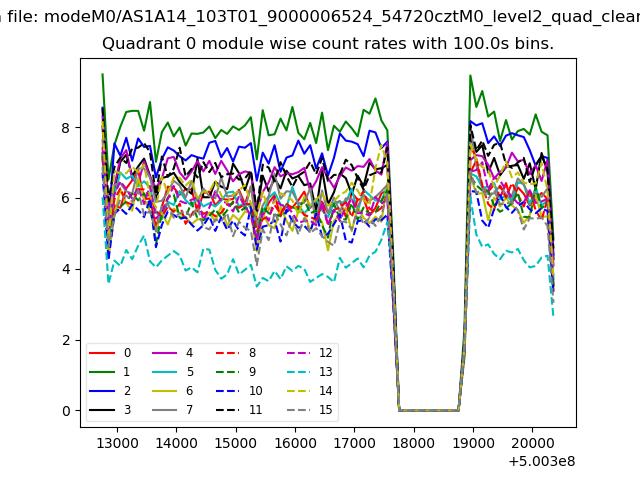

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

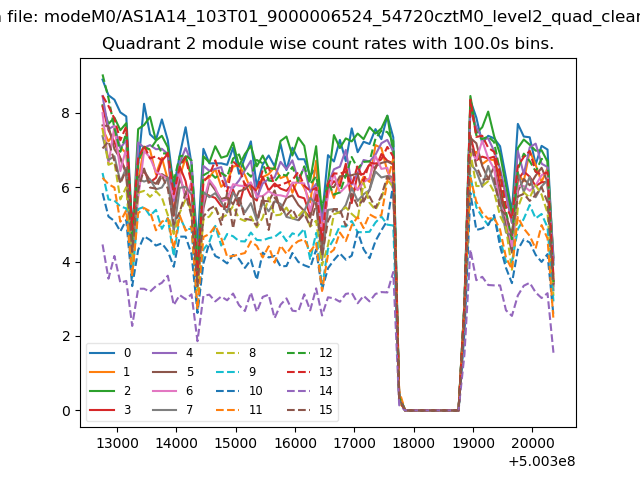

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

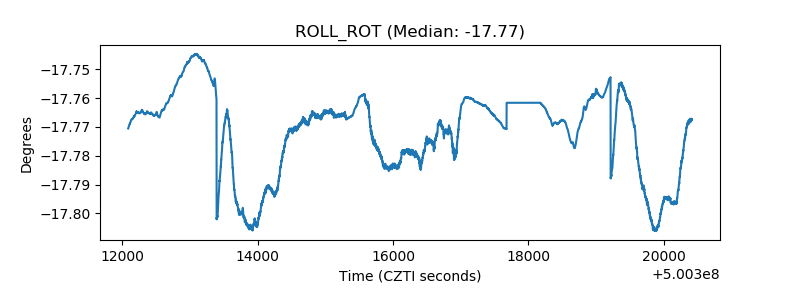

| _ROLL_ROT |  |
| _Roll_DEC |  |

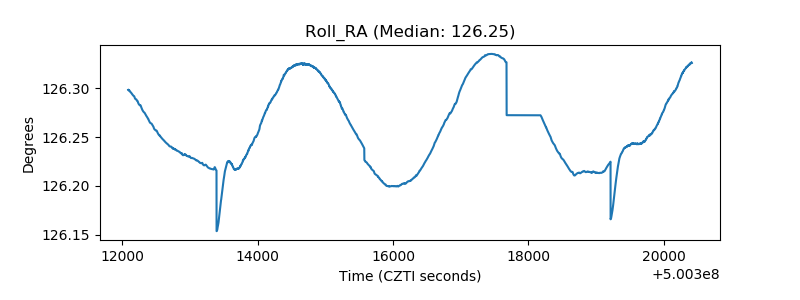

| _Roll_RA |  |
| Veto Counter |  |
