| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_103T01_9000006524_54723cztM0_level2.fits | modeM0/AS1A14_103T01_9000006524_54723cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,183,360 | 115,992,000 |
| Size | 503.7 MB | 110.6 MB |
| Events in quadrant A | 3,900,760 | 763,619 |
| Events in quadrant B | 5,674,163 | 789,904 |
| Events in quadrant C | 4,558,540 | 718,697 |
| Events in quadrant D | 4,786,805 | 674,794 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17674 | 3 |
| B | 0 | 22691 | 3 |
| C | 0 | 19798 | 3 |
| D | 0 | 20055 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8127 | 86 | 1.058201% |
| B | 8128 | 515 | 6.336122% |
| C | 8128 | 178 | 2.189961% |
| D | 8127 | 224 | 2.756245% |

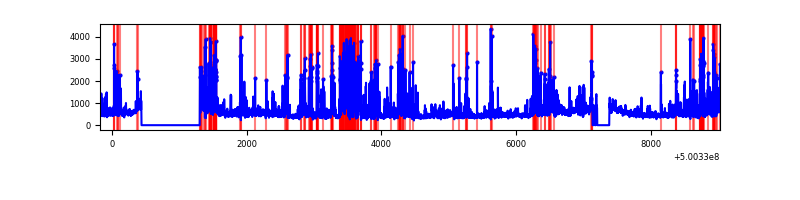

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9202 | 8131 | 18 | 18 | 0.20% | 0.22% |  |
| B | 9203 | 8132 | 290 | 290 | 3.15% | 3.57% |  |
| C | 9203 | 8132 | 162 | 162 | 1.76% | 1.99% |  |
| D | 9202 | 8131 | 152 | 152 | 1.65% | 1.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 206 | 189899 | 877.94 | 869 | 847 | 215.3 |
| A | 7 | 190 | 108043 | 497.81 | 869 | 847 | 215.3 |
| A | 4 | 3 | 46087 | 210.09 | 869 | 847 | 215.3 |
| B | 5 | 185 | 1090987 | 6045.71 | 845 | 815 | 180.3 |
| B | 2 | 249 | 538768 | 2983.3 | 845 | 815 | 180.3 |
| B | 7 | 252 | 107684 | 592.66 | 845 | 815 | 180.3 |
| C | 9 | 38 | 546571 | 2375.19 | 837 | 829 | 229.8 |
| C | 6 | 223 | 195649 | 847.9 | 837 | 829 | 229.8 |
| C | 13 | 3 | 153931 | 666.33 | 837 | 829 | 229.8 |
| D | 2 | 172 | 344816 | 1441.48 | 830 | 791 | 238.7 |
| D | 8 | 240 | 229101 | 956.63 | 830 | 791 | 238.7 |
| D | 3 | 12 | 170799 | 712.34 | 830 | 791 | 238.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

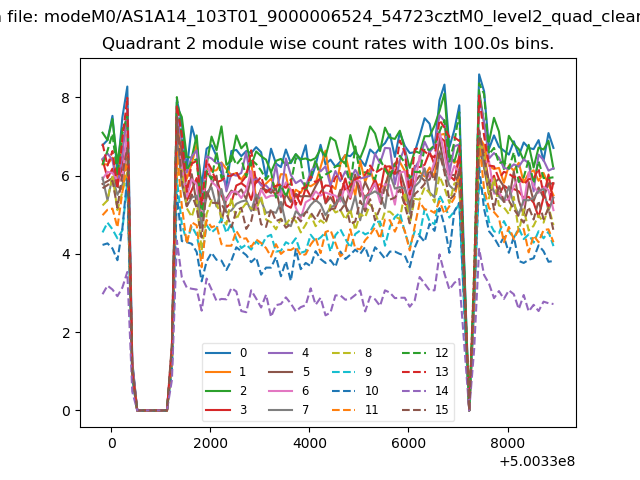

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

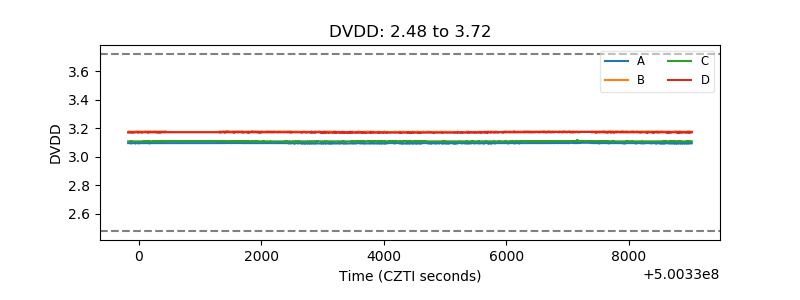

| D_VDD |  |

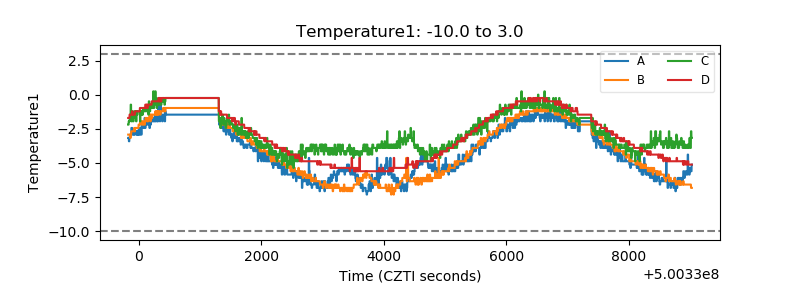

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

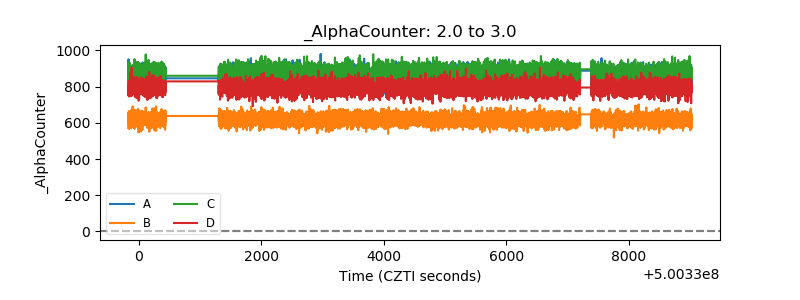

| Alpha Counter |  |
| _CPM_Rate |  |

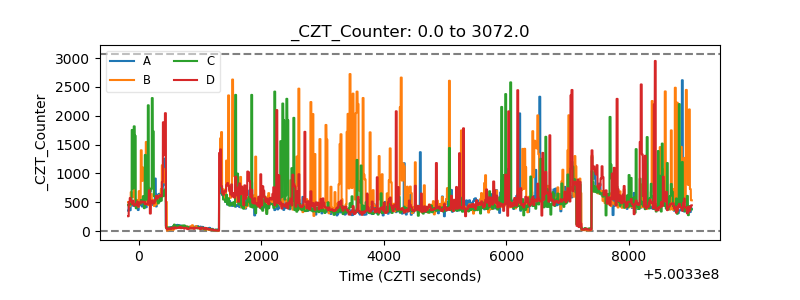

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

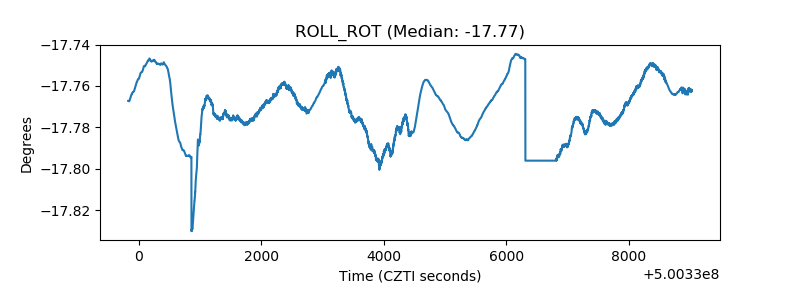

| _ROLL_ROT |  |

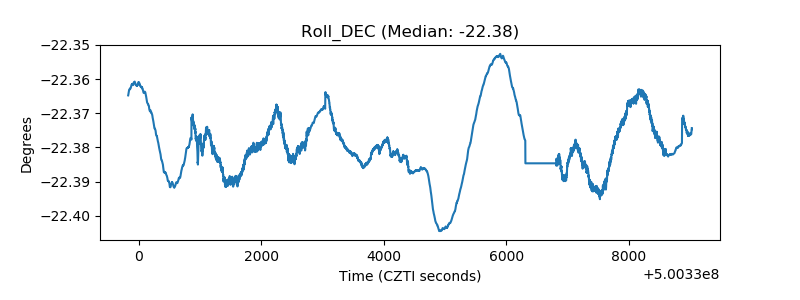

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
