| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_103T01_9000006524_54732cztM0_level2.fits | modeM0/AS1A14_103T01_9000006524_54732cztM0_level2_quad_clean.evt |
| Size (bytes) | 444,214,080 | 98,766,720 |
| Size | 423.6 MB | 94.2 MB |
| Events in quadrant A | 3,106,589 | 647,952 |
| Events in quadrant B | 5,163,799 | 671,960 |
| Events in quadrant C | 3,836,223 | 618,701 |
| Events in quadrant D | 3,806,780 | 577,201 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14142 | 2 |
| B | 0 | 20069 | 2 |
| C | 0 | 16051 | 3 |
| D | 0 | 16027 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6816 | 103 | 1.511150% |
| B | 6816 | 467 | 6.851526% |
| C | 6815 | 173 | 2.538518% |
| D | 6815 | 207 | 3.037417% |

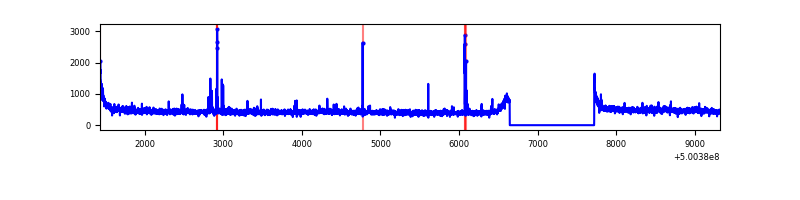

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7891 | 6816 | 8 | 8 | 0.10% | 0.12% |  |
| B | 7890 | 6815 | 318 | 318 | 4.03% | 4.67% |  |
| C | 7890 | 6815 | 89 | 89 | 1.13% | 1.31% |  |
| D | 7890 | 6815 | 137 | 137 | 1.74% | 2.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 3 | 65458 | 358.37 | 736 | 719 | 180.7 |
| A | 11 | 3 | 43421 | 236.38 | 736 | 719 | 180.7 |
| A | 3 | 14 | 36042 | 195.53 | 736 | 719 | 180.7 |
| B | 2 | 249 | 1368458 | 9022.12 | 710 | 685 | 151.6 |
| B | 0 | 173 | 436202 | 2872.76 | 710 | 685 | 151.6 |
| B | 5 | 185 | 268005 | 1763.3 | 710 | 685 | 151.6 |
| C | 1 | 16 | 489057 | 2496.5 | 711 | 705 | 195.6 |
| C | 13 | 3 | 231876 | 1181.77 | 711 | 705 | 195.6 |
| C | 4 | 5 | 96308 | 488.73 | 711 | 705 | 195.6 |
| D | 3 | 12 | 384110 | 1898.05 | 714 | 683 | 202.0 |
| D | 11 | 129 | 234703 | 1158.45 | 714 | 683 | 202.0 |
| D | 2 | 62 | 75182 | 368.78 | 714 | 683 | 202.0 |

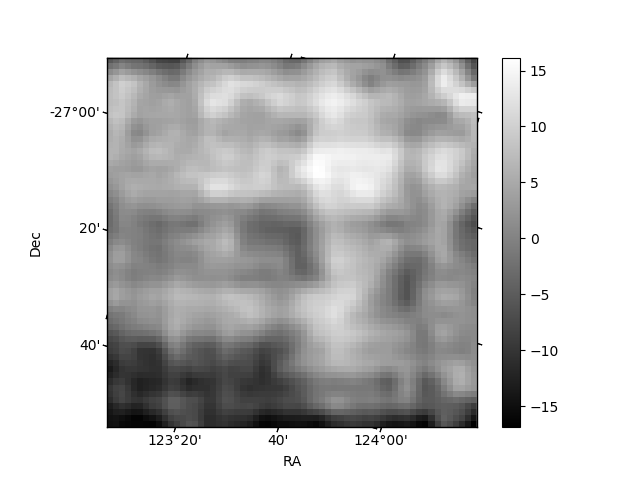

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

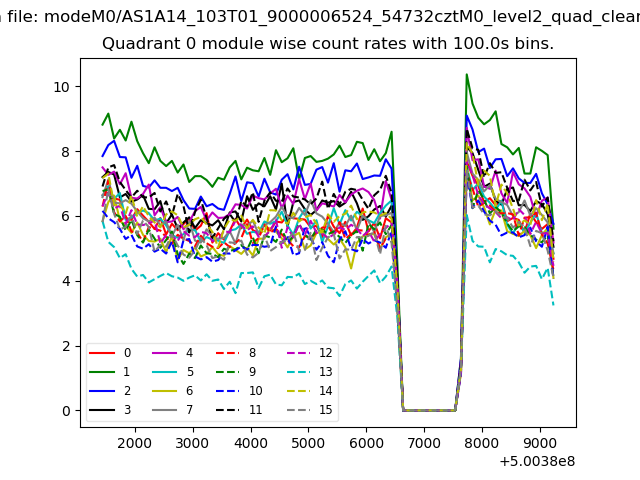

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

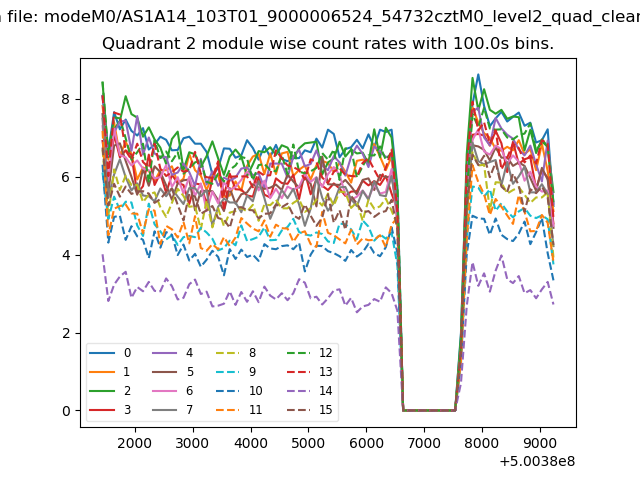

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

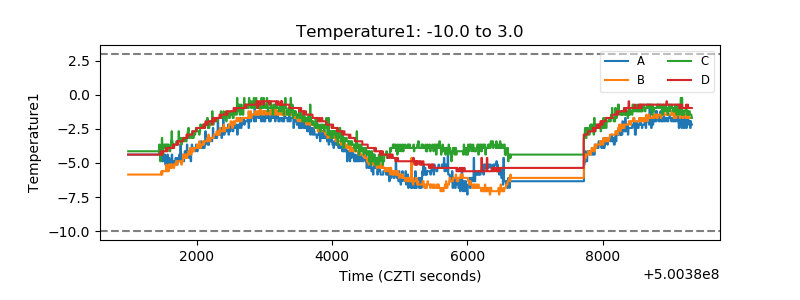

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

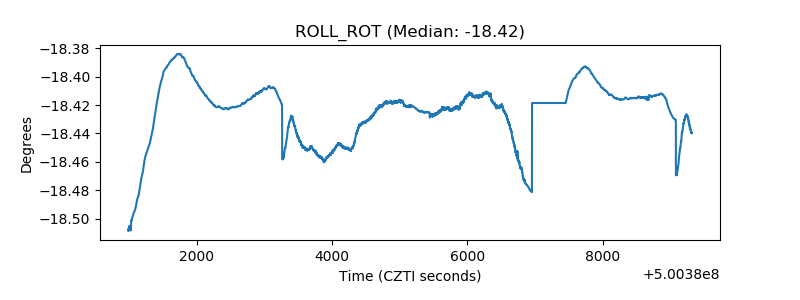

| _ROLL_ROT |  |
| _Roll_DEC |  |

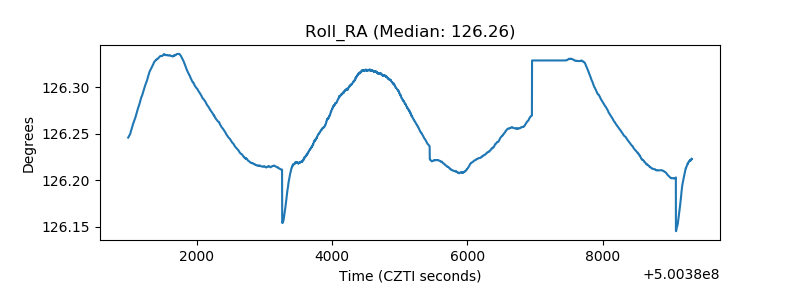

| _Roll_RA |  |

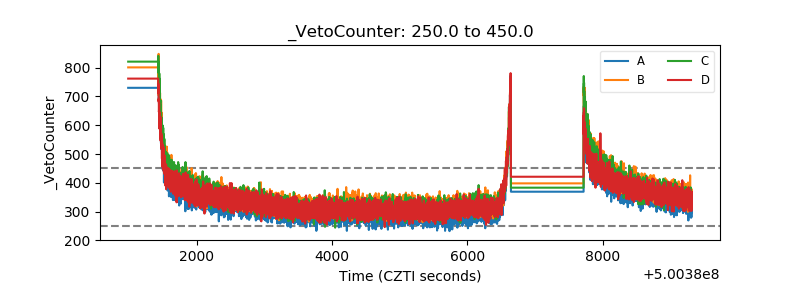

| Veto Counter |  |
