| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_103T01_9000006524_54733cztM0_level2.fits | modeM0/AS1A14_103T01_9000006524_54733cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,260,160 | 100,039,680 |
| Size | 432.3 MB | 95.4 MB |
| Events in quadrant A | 3,143,250 | 669,697 |
| Events in quadrant B | 4,272,173 | 703,818 |
| Events in quadrant C | 4,592,181 | 604,283 |
| Events in quadrant D | 4,248,919 | 583,607 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13978 | 2 |
| B | 0 | 17291 | 2 |
| C | 0 | 18403 | 2 |
| D | 0 | 17152 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6712 | 75 | 1.117402% |
| B | 6712 | 292 | 4.350417% |
| C | 6712 | 471 | 7.017282% |
| D | 6712 | 295 | 4.395113% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7857 | 6712 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7857 | 6712 | 157 | 157 | 2.00% | 2.34% |  |
| C | 7857 | 6712 | 406 | 406 | 5.17% | 6.05% |  |
| D | 7857 | 6713 | 223 | 223 | 2.84% | 3.32% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 11 | 3 | 113027 | 610.11 | 745 | 726 | 184.1 |
| A | 4 | 3 | 71831 | 386.3 | 745 | 726 | 184.1 |
| A | 3 | 14 | 20007 | 104.75 | 745 | 726 | 184.1 |
| B | 2 | 249 | 717237 | 4644.01 | 724 | 701 | 154.3 |
| B | 5 | 185 | 209239 | 1351.58 | 724 | 701 | 154.3 |
| B | 0 | 173 | 128124 | 825.85 | 724 | 701 | 154.3 |
| C | 4 | 5 | 1088211 | 5646.95 | 699 | 691 | 192.6 |
| C | 1 | 16 | 349277 | 1810.03 | 699 | 691 | 192.6 |
| C | 13 | 3 | 201383 | 1042.09 | 699 | 691 | 192.6 |
| D | 3 | 12 | 471569 | 2326.09 | 712 | 681 | 202.4 |
| D | 11 | 129 | 396853 | 1957.01 | 712 | 681 | 202.4 |
| D | 10 | 181 | 216660 | 1066.89 | 712 | 681 | 202.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

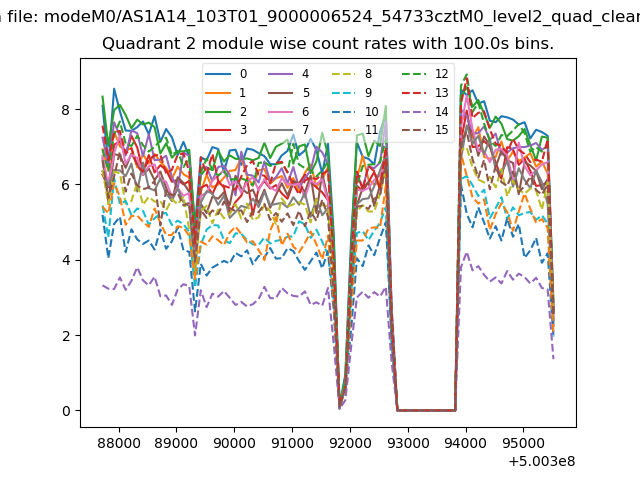

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

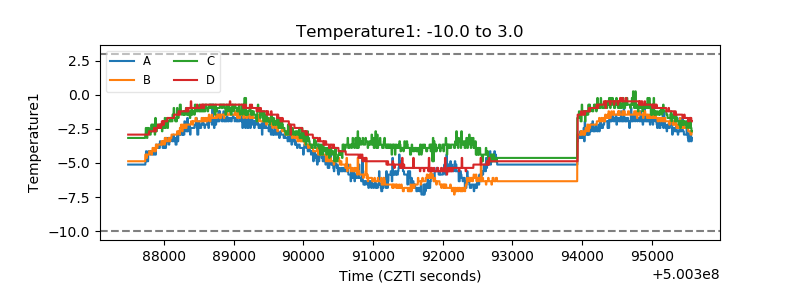

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

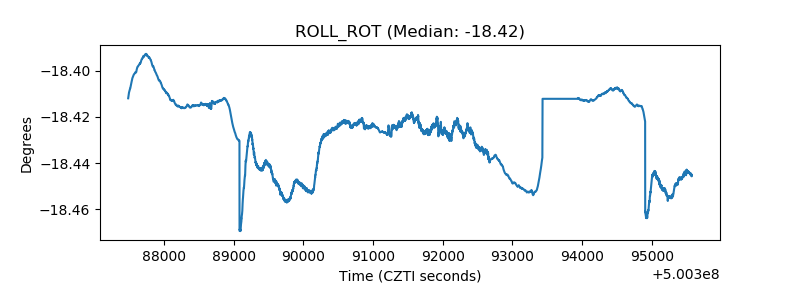

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

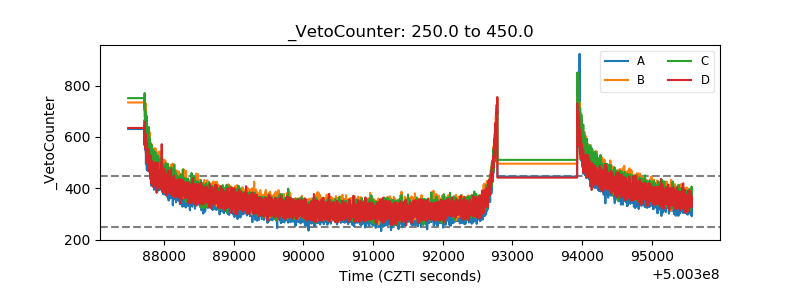

| Veto Counter |  |
