| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_103T01_9000006524_54744cztM0_level2.fits | modeM0/AS1A14_103T01_9000006524_54744cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,736,470,080 | 286,655,040 |
| Size | 1.6 GB | 273.4 MB |
| Events in quadrant A | 10,037,994 | 1,985,393 |
| Events in quadrant B | 13,120,922 | 2,073,230 |
| Events in quadrant C | 18,804,940 | 1,554,500 |
| Events in quadrant D | 20,631,830 | 1,567,250 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 438 | 0 |
| B | 0 | 438 | 0 |
| C | 0 | 438 | 0 |
| D | 0 | 438 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46296 | 2 |
| B | 0 | 55209 | 2 |
| C | 0 | 72057 | 2 |
| D | 0 | 76843 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 21765 | 196 | 0.900528% |
| B | 21766 | 1082 | 4.971056% |
| C | 21766 | 3333 | 15.312873% |
| D | 21766 | 2631 | 12.087660% |

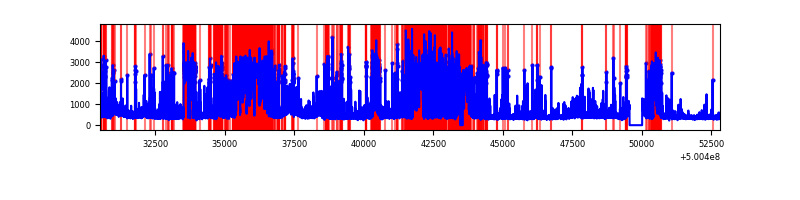

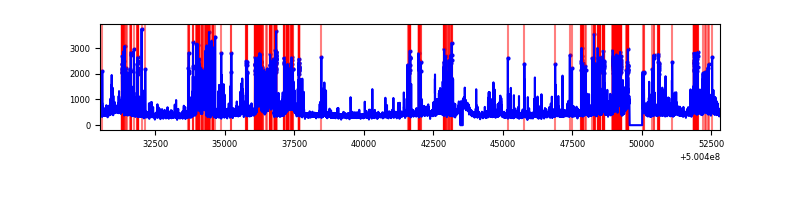

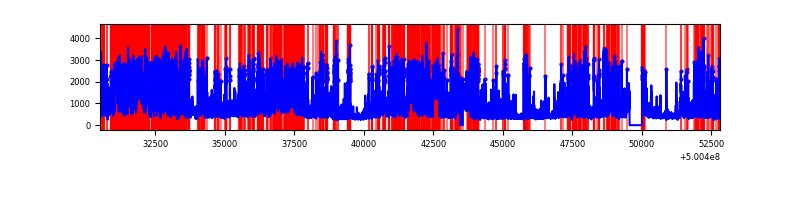

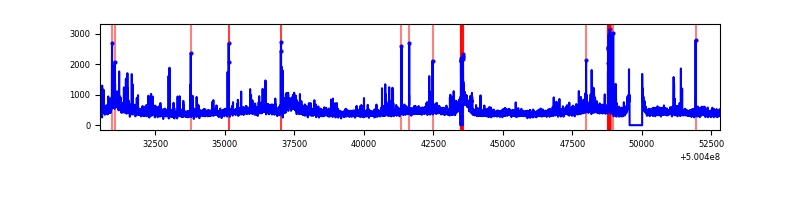

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 22300 | 21767 | 41 | 41 | 0.18% | 0.19% |  |
| B | 22301 | 21769 | 605 | 605 | 2.71% | 2.78% |  |
| C | 22301 | 21768 | 3096 | 3096 | 13.88% | 14.22% |  |
| D | 22301 | 21767 | 2585 | 2585 | 11.59% | 11.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 579733 | 1041.04 | 2261 | 2208 | 554.8 |
| A | 0 | 8 | 216693 | 386.63 | 2261 | 2208 | 554.8 |
| A | 4 | 206 | 107330 | 189.49 | 2261 | 2208 | 554.8 |
| B | 2 | 249 | 1575777 | 3311.02 | 2216 | 2134 | 475.3 |
| B | 0 | 213 | 773757 | 1623.53 | 2216 | 2134 | 475.3 |
| B | 5 | 185 | 640789 | 1343.76 | 2216 | 2134 | 475.3 |
| C | 12 | 252 | 3881859 | 6884.79 | 2036 | 2020 | 563.5 |
| C | 4 | 5 | 3665516 | 6500.88 | 2036 | 2020 | 563.5 |
| C | 14 | 254 | 986892 | 1747.66 | 2036 | 2020 | 563.5 |
| D | 11 | 129 | 6643947 | 11149.67 | 2102 | 2013 | 595.7 |
| D | 3 | 12 | 2123649 | 3561.54 | 2102 | 2013 | 595.7 |
| D | 2 | 62 | 1978100 | 3317.21 | 2102 | 2013 | 595.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

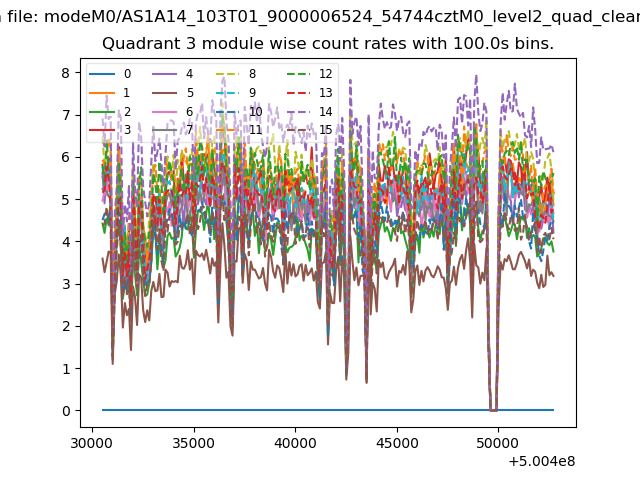

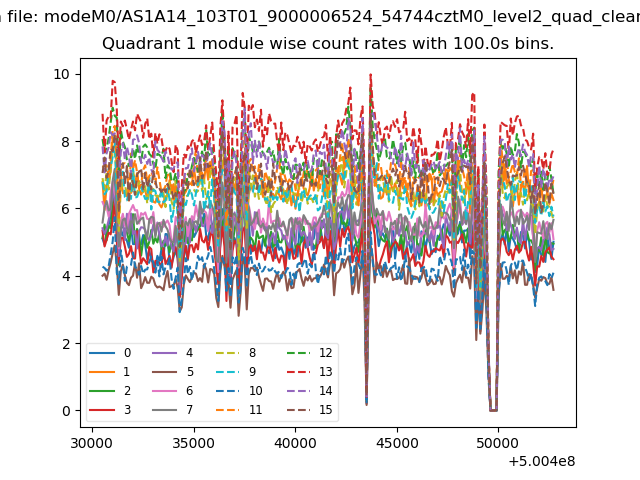

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

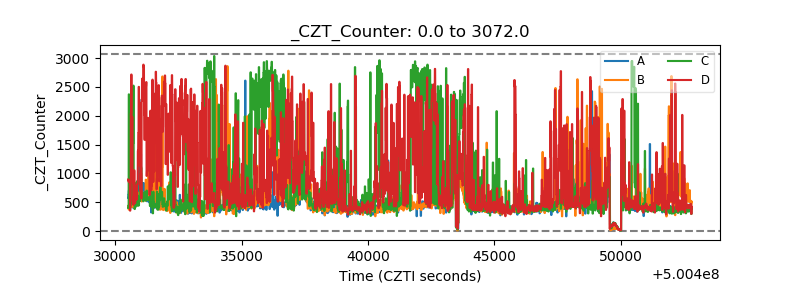

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

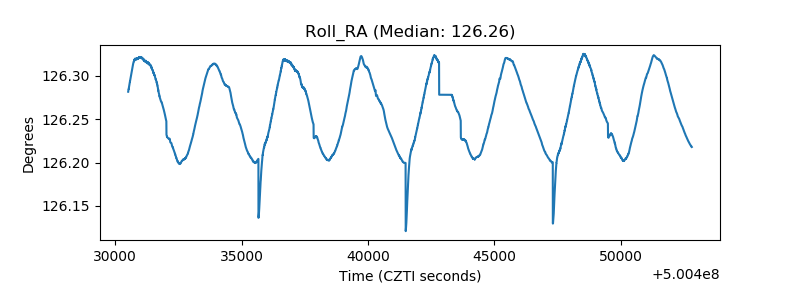

| _Roll_RA |  |
| Veto Counter |  |
