| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_103T01_9000006524_54748cztM0_level2.fits | modeM0/AS1A14_103T01_9000006524_54748cztM0_level2_quad_clean.evt |
| Size (bytes) | 572,814,720 | 91,992,960 |
| Size | 546.3 MB | 87.7 MB |
| Events in quadrant A | 4,585,929 | 629,053 |
| Events in quadrant B | 8,003,973 | 504,441 |
| Events in quadrant C | 3,499,477 | 622,628 |
| Events in quadrant D | 4,608,339 | 574,640 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17895 | 1 |
| B | 0 | 28198 | 1 |
| C | 0 | 15033 | 1 |
| D | 0 | 18090 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6513 | 341 | 5.235682% |
| B | 6514 | 2060 | 31.624194% |
| C | 6514 | 148 | 2.272029% |
| D | 6513 | 275 | 4.222325% |

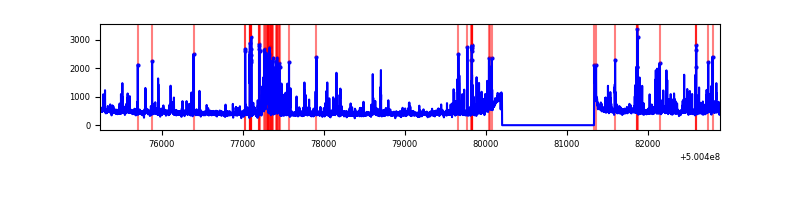

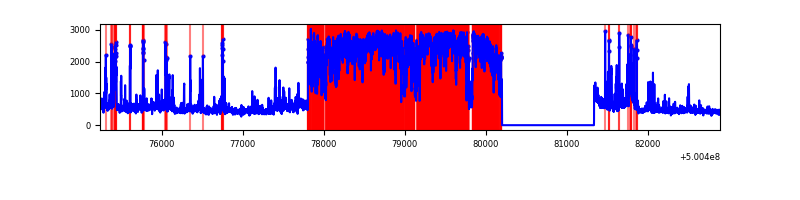

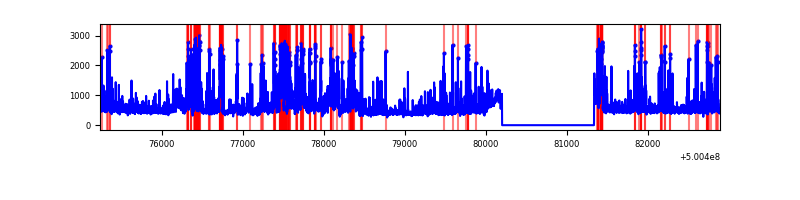

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7648 | 6513 | 230 | 230 | 3.01% | 3.53% |  |
| B | 7649 | 6514 | 1940 | 1940 | 25.36% | 29.78% |  |
| C | 7649 | 6514 | 70 | 70 | 0.92% | 1.07% |  |
| D | 7648 | 6513 | 235 | 235 | 3.07% | 3.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 858678 | 4808.0 | 723 | 705 | 178.4 |
| A | 3 | 14 | 483112 | 2703.36 | 723 | 705 | 178.4 |
| A | 7 | 14 | 197245 | 1101.39 | 723 | 705 | 178.4 |
| B | 2 | 249 | 5226059 | 39651.04 | 620 | 598 | 131.8 |
| B | 5 | 185 | 99825 | 752.94 | 620 | 598 | 131.8 |
| B | 10 | 247 | 59570 | 447.48 | 620 | 598 | 131.8 |
| C | 14 | 254 | 188366 | 970.61 | 707 | 703 | 193.3 |
| C | 15 | 219 | 165480 | 852.24 | 707 | 703 | 193.3 |
| C | 13 | 3 | 146369 | 753.4 | 707 | 703 | 193.3 |
| D | 11 | 129 | 941798 | 4776.35 | 701 | 672 | 197.0 |
| D | 3 | 12 | 375091 | 1900.23 | 701 | 672 | 197.0 |
| D | 15 | 94 | 111849 | 564.24 | 701 | 672 | 197.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

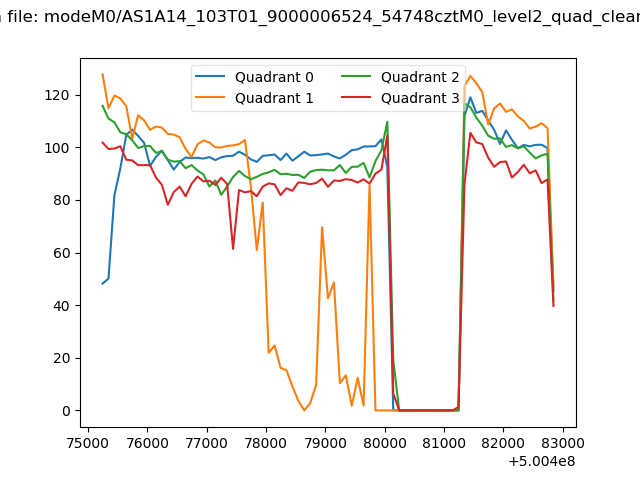

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

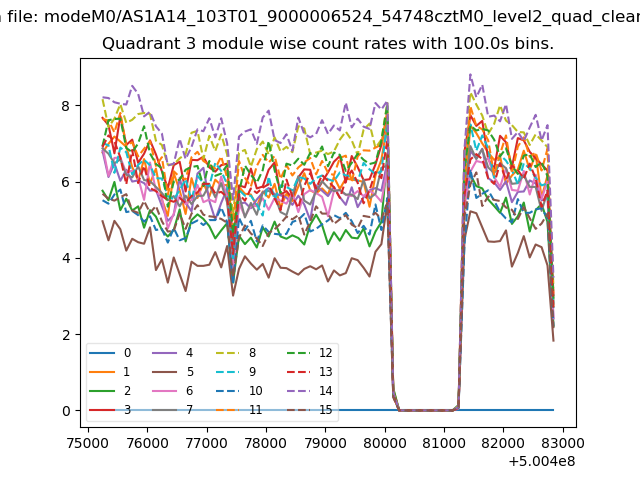

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

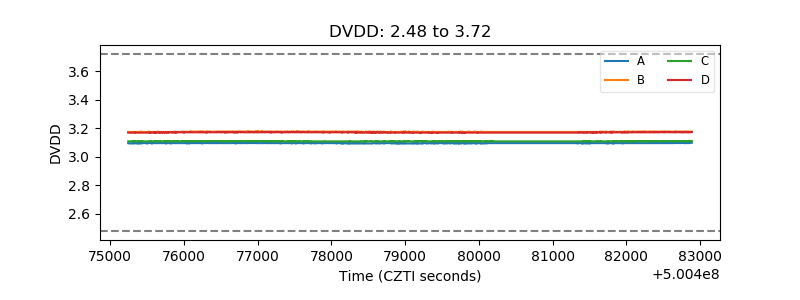

| D_VDD |  |

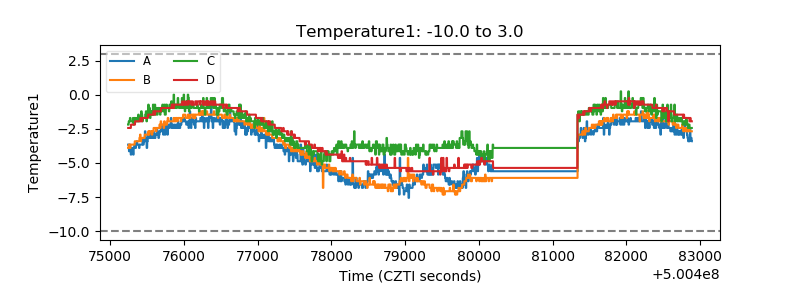

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

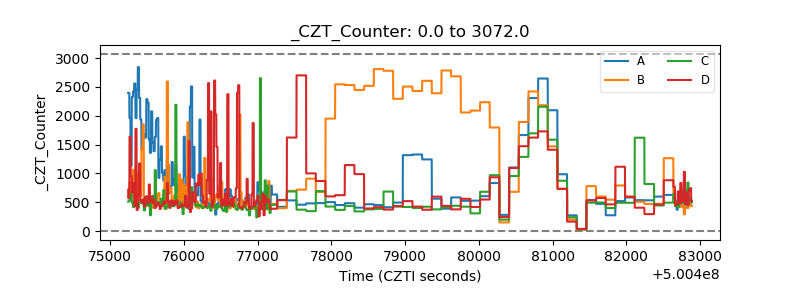

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
