| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_103T01_9000006524_54752cztM0_level2.fits | modeM0/AS1A14_103T01_9000006524_54752cztM0_level2_quad_clean.evt |
| Size (bytes) | 550,477,440 | 105,912,000 |
| Size | 525.0 MB | 101.0 MB |
| Events in quadrant A | 3,946,428 | 701,745 |
| Events in quadrant B | 5,369,724 | 724,712 |
| Events in quadrant C | 5,246,356 | 637,314 |
| Events in quadrant D | 5,234,746 | 623,375 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17225 | 2 |
| B | 0 | 21129 | 2 |
| C | 0 | 20907 | 2 |
| D | 0 | 20733 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7467 | 148 | 1.982054% |
| B | 7467 | 502 | 6.722914% |
| C | 7467 | 505 | 6.763091% |
| D | 7467 | 230 | 3.080220% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

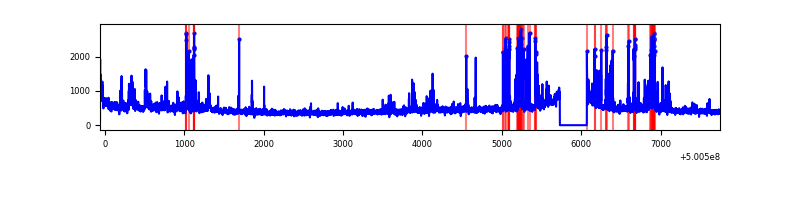

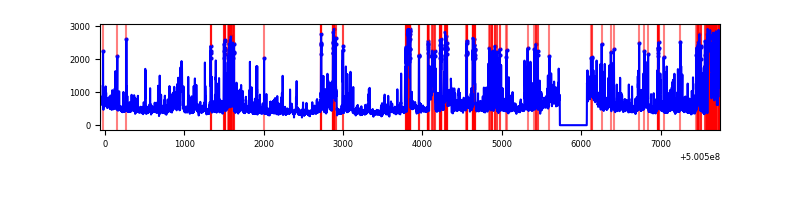

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7806 | 7467 | 86 | 86 | 1.10% | 1.15% |  |
| B | 7806 | 7466 | 332 | 332 | 4.25% | 4.45% |  |
| C | 7806 | 7466 | 443 | 443 | 5.68% | 5.93% |  |
| D | 7807 | 7468 | 189 | 189 | 2.42% | 2.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 261030 | 1319.72 | 796 | 777 | 197.2 |
| A | 3 | 14 | 138714 | 699.47 | 796 | 777 | 197.2 |
| A | 3 | 114 | 131407 | 662.42 | 796 | 777 | 197.2 |
| B | 2 | 249 | 1274630 | 7618.63 | 778 | 749 | 167.2 |
| B | 5 | 185 | 403868 | 2410.91 | 778 | 749 | 167.2 |
| B | 0 | 213 | 212096 | 1263.99 | 778 | 749 | 167.2 |
| C | 4 | 5 | 1015494 | 4890.91 | 752 | 746 | 207.5 |
| C | 9 | 38 | 330186 | 1587.84 | 752 | 746 | 207.5 |
| C | 13 | 3 | 315725 | 1518.14 | 752 | 746 | 207.5 |
| D | 11 | 129 | 771829 | 3528.28 | 763 | 730 | 218.5 |
| D | 10 | 181 | 527944 | 2412.35 | 763 | 730 | 218.5 |
| D | 3 | 12 | 523763 | 2393.22 | 763 | 730 | 218.5 |

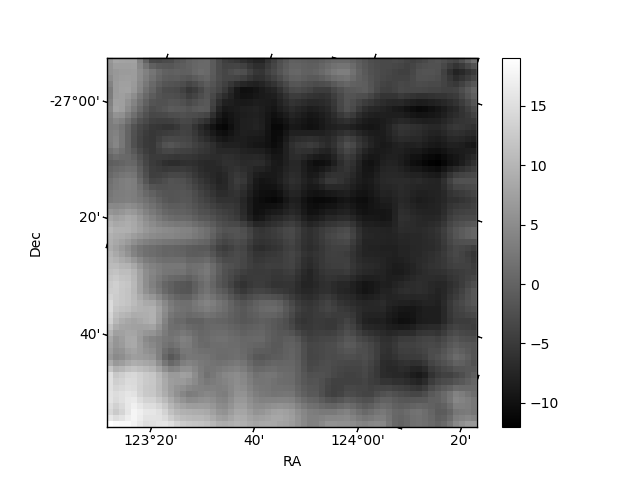

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

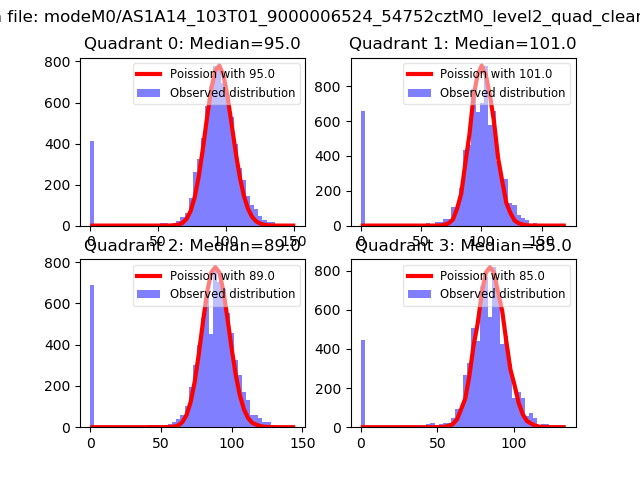

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

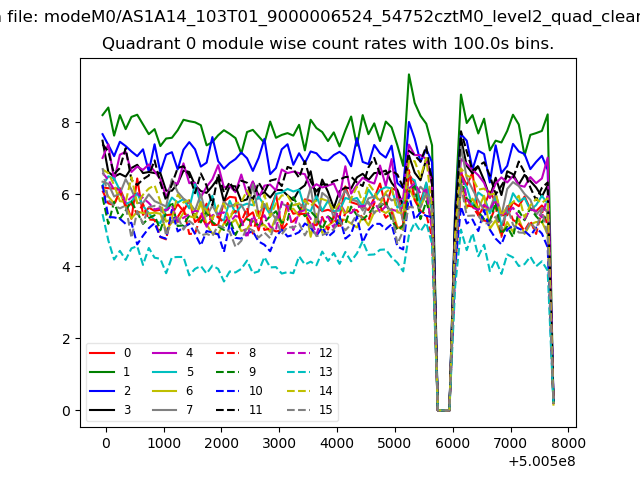

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

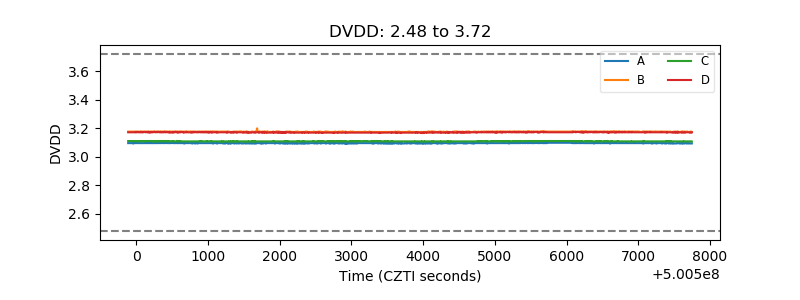

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

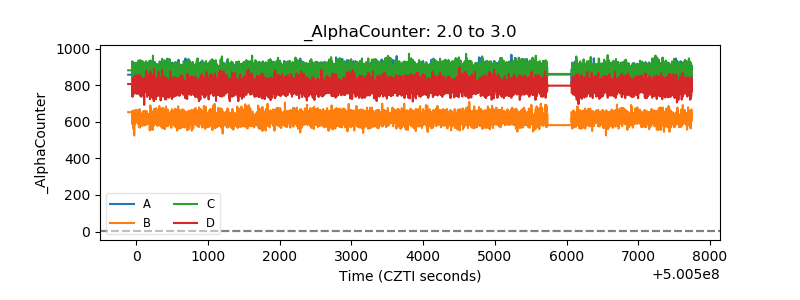

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

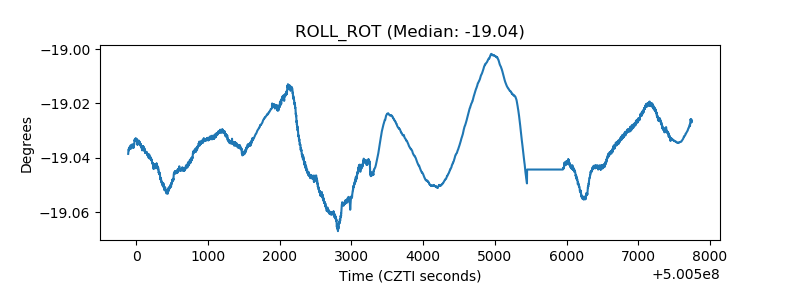

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
