| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_103T01_9000006524_54759cztM0_level2.fits | modeM0/AS1A14_103T01_9000006524_54759cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,927,373,760 | 338,889,600 |
| Size | 1.8 GB | 323.2 MB |
| Events in quadrant A | 11,092,687 | 2,295,857 |
| Events in quadrant B | 20,034,510 | 2,295,305 |
| Events in quadrant C | 22,511,901 | 1,935,441 |
| Events in quadrant D | 15,770,262 | 2,011,382 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 508 | 0 |
| B | 0 | 508 | 0 |
| C | 0 | 508 | 0 |
| D | 0 | 508 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 52004 | 4 |
| B | 0 | 76784 | 4 |
| C | 0 | 84838 | 13 |
| D | 0 | 65051 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 25039 | 230 | 0.918567% |
| B | 25040 | 2339 | 9.341054% |
| C | 25038 | 3655 | 14.597811% |
| D | 25039 | 1109 | 4.429091% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

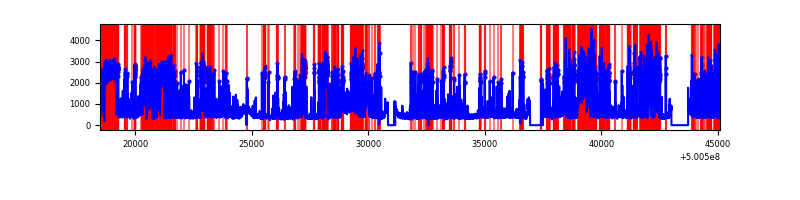

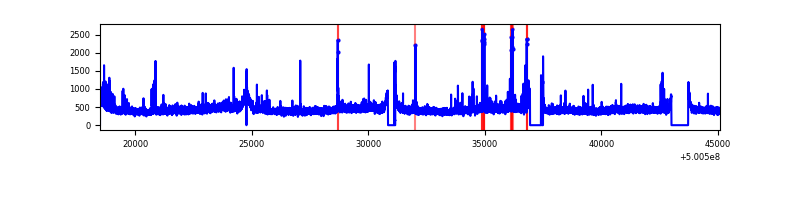

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26599 | 25045 | 19 | 19 | 0.07% | 0.08% |  |
| B | 26600 | 25046 | 1817 | 1817 | 6.83% | 7.25% |  |
| C | 26599 | 25044 | 3449 | 3449 | 12.97% | 13.77% |  |
| D | 26599 | 25045 | 927 | 927 | 3.49% | 3.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 452036 | 691.44 | 2639 | 2567 | 650.0 |
| A | 0 | 8 | 208651 | 317.03 | 2639 | 2567 | 650.0 |
| A | 4 | 206 | 124208 | 187.13 | 2639 | 2567 | 650.0 |
| B | 2 | 249 | 8037907 | 15156.94 | 2502 | 2409 | 530.2 |
| B | 0 | 213 | 793877 | 1492.9 | 2502 | 2409 | 530.2 |
| B | 5 | 185 | 611560 | 1149.01 | 2502 | 2409 | 530.2 |
| C | 4 | 5 | 9442438 | 14319.74 | 2411 | 2391 | 659.2 |
| C | 13 | 3 | 1469704 | 2225.79 | 2411 | 2391 | 659.2 |
| C | 6 | 223 | 918316 | 1389.38 | 2411 | 2391 | 659.2 |
| D | 11 | 129 | 1555045 | 2180.66 | 2533 | 2427 | 712.0 |
| D | 3 | 12 | 1068683 | 1497.56 | 2533 | 2427 | 712.0 |
| D | 6 | 239 | 922000 | 1291.55 | 2533 | 2427 | 712.0 |

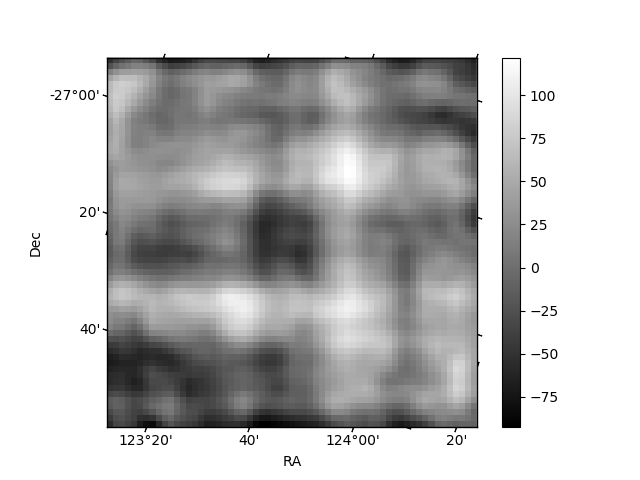

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

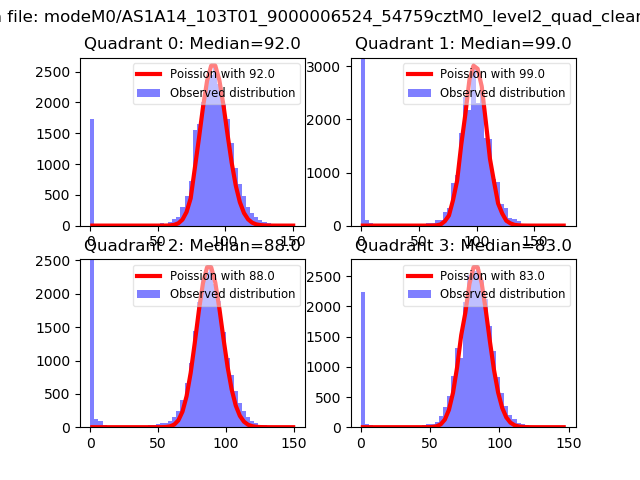

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

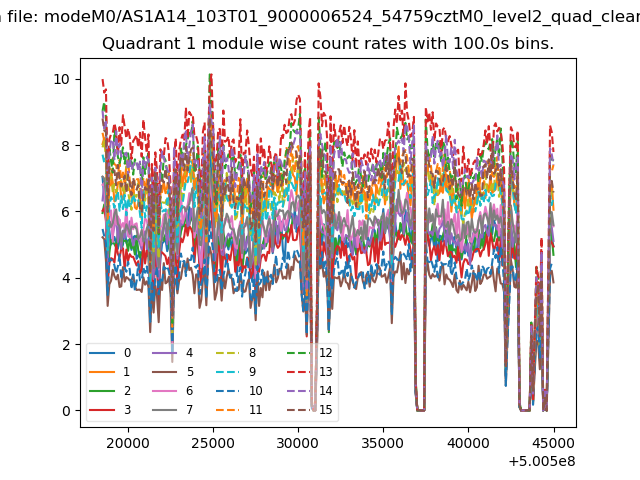

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

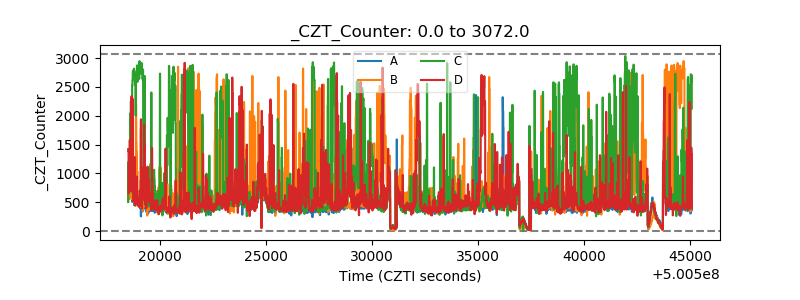

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

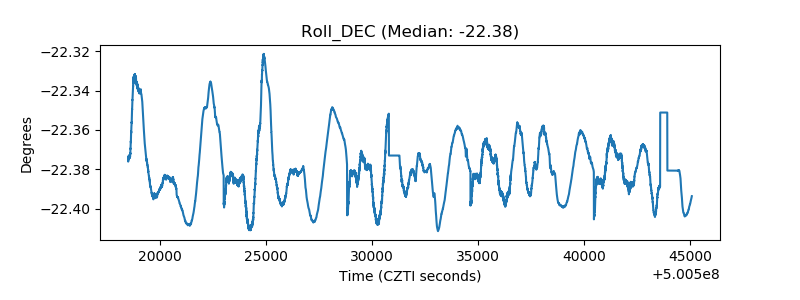

| _Roll_DEC |  |
| _Roll_RA |  |

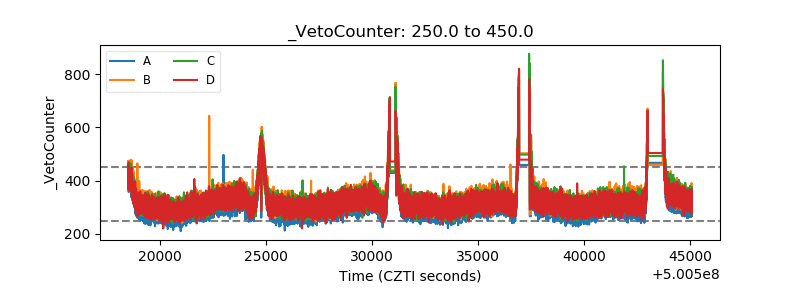

| Veto Counter |  |
