| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_103T01_9000006524_54777cztM0_level2.fits | modeM0/AS1A14_103T01_9000006524_54777cztM0_level2_quad_clean.evt |
| Size (bytes) | 634,570,560 | 97,248,960 |
| Size | 605.2 MB | 92.7 MB |
| Events in quadrant A | 3,280,548 | 763,692 |
| Events in quadrant B | 7,707,130 | 551,606 |
| Events in quadrant C | 7,043,972 | 525,898 |
| Events in quadrant D | 4,935,754 | 634,775 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14885 | 5 |
| B | 0 | 27730 | 1 |
| C | 0 | 25714 | 1 |
| D | 0 | 19368 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6726 | 131 | 1.947666% |
| B | 6727 | 1834 | 27.263267% |
| C | 6727 | 1401 | 20.826520% |
| D | 6727 | 378 | 5.619147% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7782 | 6728 | 19 | 19 | 0.24% | 0.28% |  |
| B | 7782 | 6727 | 1380 | 1380 | 17.73% | 20.51% |  |
| C | 7782 | 6728 | 1240 | 1240 | 15.93% | 18.43% |  |
| D | 7782 | 6728 | 285 | 285 | 3.66% | 4.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 138148 | 694.72 | 776 | 756 | 197.8 |
| A | 6 | 161 | 57526 | 287.06 | 776 | 756 | 197.8 |
| A | 5 | 240 | 39151 | 194.14 | 776 | 756 | 197.8 |
| B | 2 | 249 | 4903037 | 34134.25 | 664 | 641 | 143.6 |
| B | 5 | 185 | 64545 | 444.95 | 664 | 641 | 143.6 |
| B | 10 | 247 | 49515 | 340.29 | 664 | 641 | 143.6 |
| C | 9 | 38 | 2290580 | 12265.41 | 668 | 662 | 186.7 |
| C | 1 | 3 | 1085134 | 5808.72 | 668 | 662 | 186.7 |
| C | 14 | 254 | 498297 | 2665.46 | 668 | 662 | 186.7 |
| D | 3 | 224 | 431161 | 2016.68 | 735 | 702 | 213.4 |
| D | 15 | 94 | 395154 | 1847.99 | 735 | 702 | 213.4 |
| D | 3 | 12 | 268783 | 1255.95 | 735 | 702 | 213.4 |

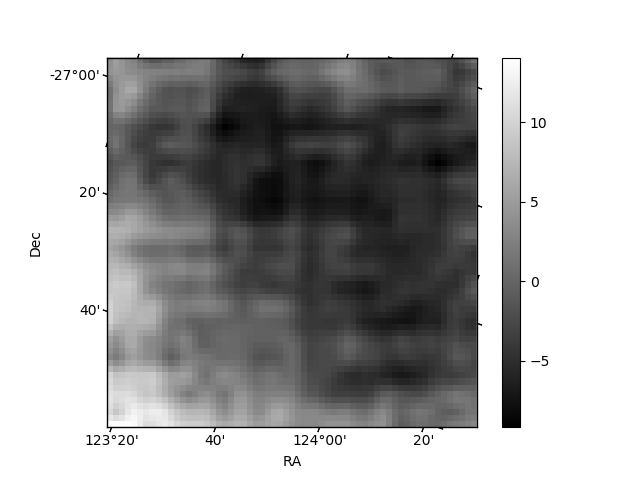

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

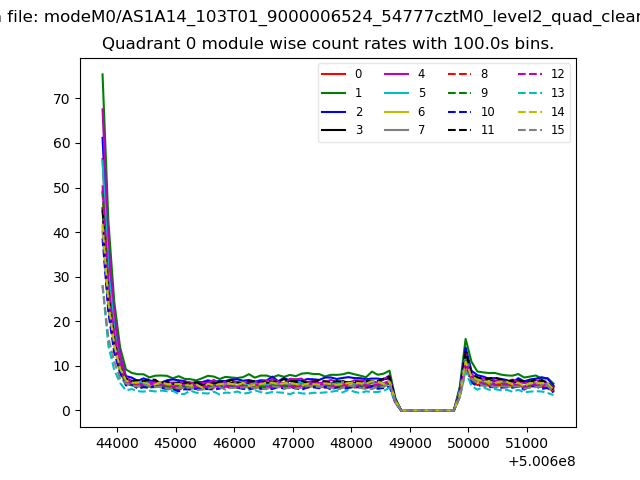

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

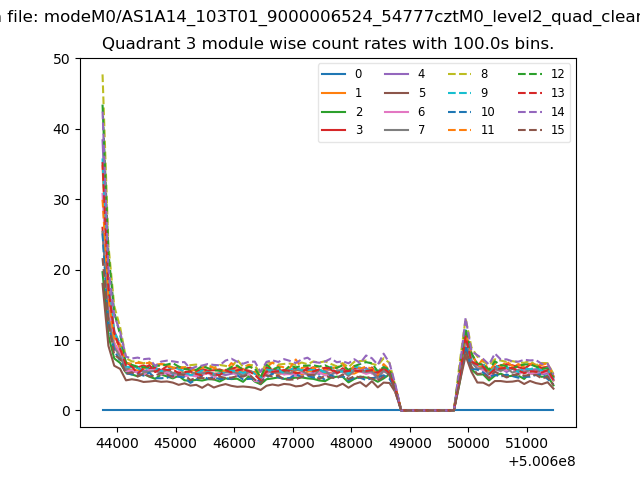

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

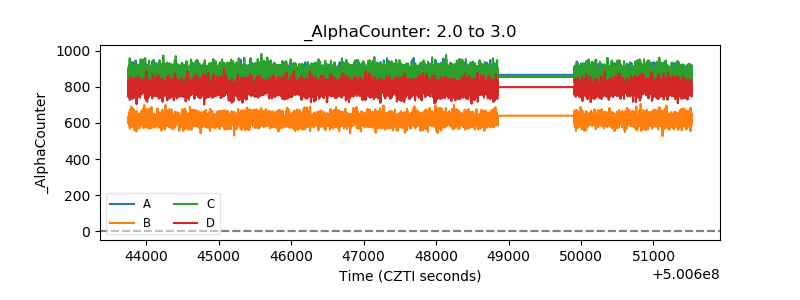

| Alpha Counter |  |
| _CPM_Rate |  |

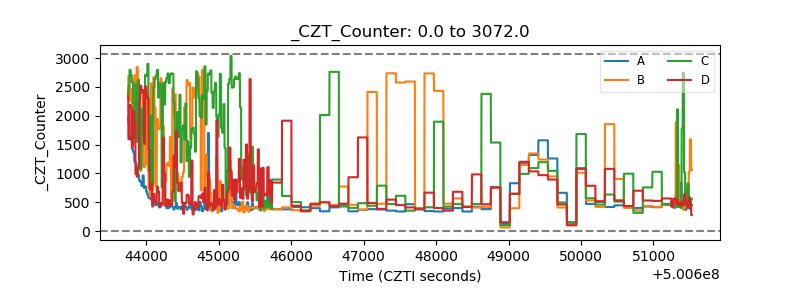

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

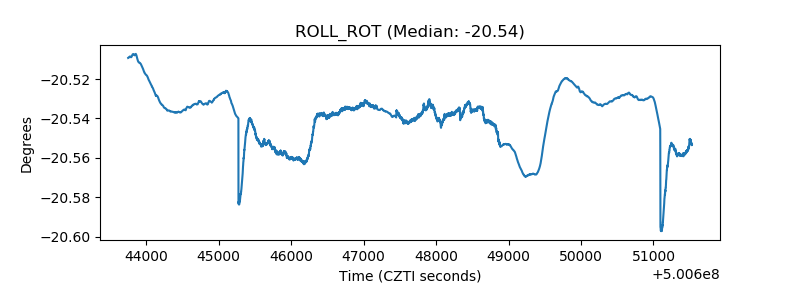

| _ROLL_ROT |  |

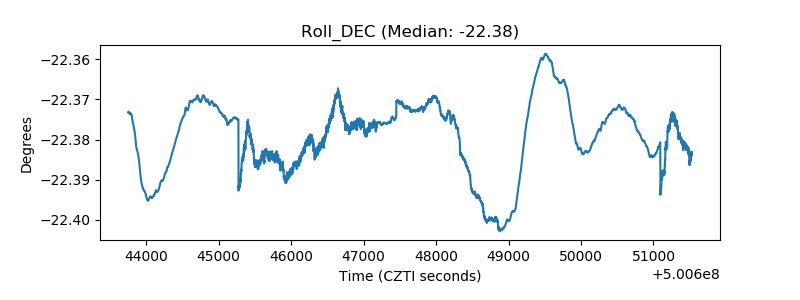

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
