| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_103T01_9000006524_54795cztM0_level2.fits | modeM0/AS1A14_103T01_9000006524_54795cztM0_level2_quad_clean.evt |
| Size (bytes) | 475,914,240 | 106,709,760 |
| Size | 453.9 MB | 101.8 MB |
| Events in quadrant A | 3,267,287 | 705,969 |
| Events in quadrant B | 4,001,360 | 736,249 |
| Events in quadrant C | 5,035,005 | 647,613 |
| Events in quadrant D | 4,742,511 | 630,936 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15718 | 13 |
| B | 0 | 17470 | 34 |
| C | 0 | 20462 | 49 |
| D | 0 | 19748 | 43 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7340 | 186 | 2.534060% |
| B | 7330 | 336 | 4.583902% |
| C | 7333 | 487 | 6.641211% |
| D | 7334 | 388 | 5.290428% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8960 | 7345 | 13 | 13 | 0.15% | 0.18% |  |
| B | 8961 | 7338 | 83 | 83 | 0.93% | 1.13% |  |
| C | 8960 | 7344 | 346 | 346 | 3.86% | 4.71% |  |
| D | 8960 | 7343 | 286 | 286 | 3.19% | 3.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 43016 | 211.61 | 804 | 782 | 199.6 |
| A | 15 | 16 | 30531 | 149.05 | 804 | 782 | 199.6 |
| A | 13 | 254 | 18294 | 87.74 | 804 | 782 | 199.6 |
| B | 2 | 249 | 644926 | 3765.52 | 784 | 753 | 171.1 |
| B | 5 | 185 | 89989 | 521.63 | 784 | 753 | 171.1 |
| B | 6 | 255 | 71414 | 413.05 | 784 | 753 | 171.1 |
| C | 9 | 38 | 1156763 | 5469.12 | 761 | 753 | 211.4 |
| C | 13 | 3 | 353377 | 1668.27 | 761 | 753 | 211.4 |
| C | 6 | 223 | 310121 | 1463.63 | 761 | 753 | 211.4 |
| D | 15 | 94 | 683755 | 3127.27 | 765 | 731 | 218.4 |
| D | 3 | 12 | 460036 | 2102.96 | 765 | 731 | 218.4 |
| D | 14 | 52 | 155244 | 707.45 | 765 | 731 | 218.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

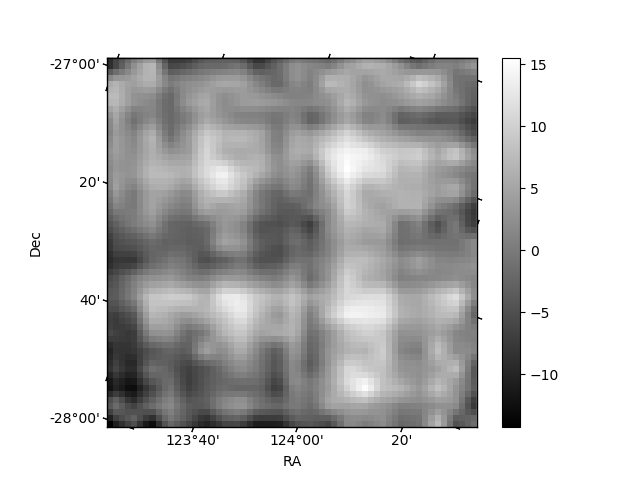

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

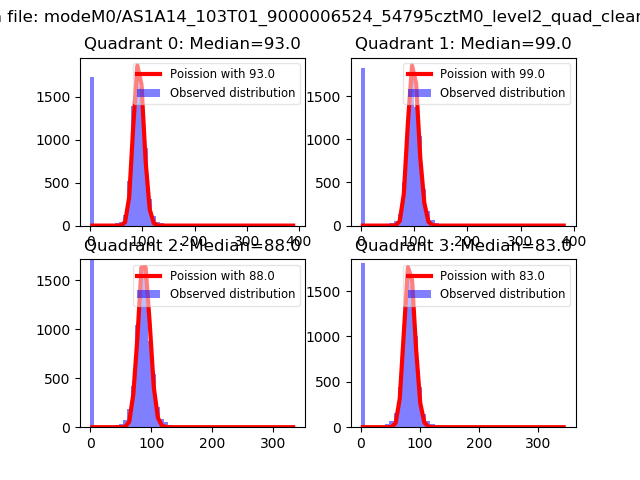

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

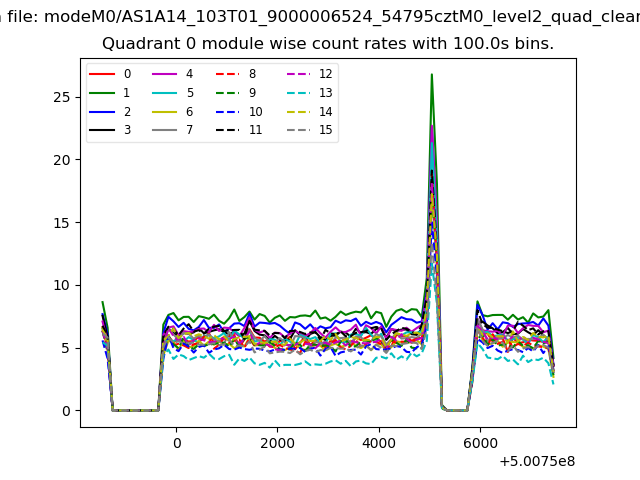

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

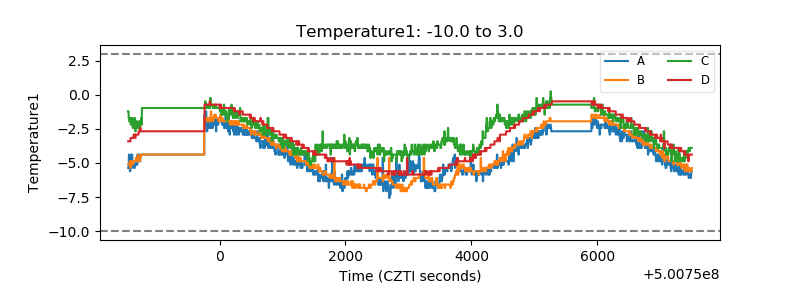

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

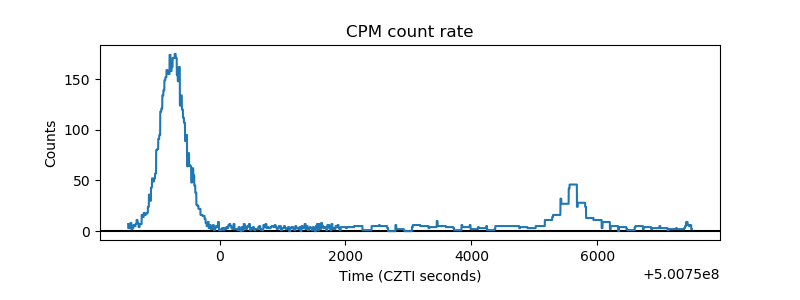

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

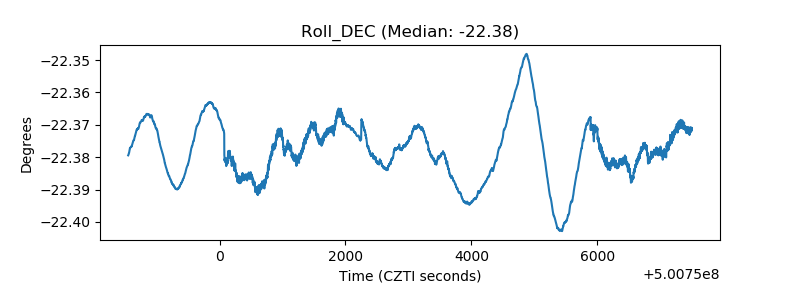

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
