| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_039T06_9000006526_54802cztM0_level2.fits | modeM0/AS1A14_039T06_9000006526_54802cztM0_level2_quad_clean.evt |
| Size (bytes) | 150,071,040 | 33,048,000 |
| Size | 143.1 MB | 31.5 MB |
| Events in quadrant A | 966,955 | 216,845 |
| Events in quadrant B | 1,210,864 | 224,551 |
| Events in quadrant C | 1,913,718 | 204,530 |
| Events in quadrant D | 1,288,533 | 194,696 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4689 | 1 |
| B | 0 | 5275 | 2 |
| C | 0 | 7266 | 9 |
| D | 0 | 5483 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 46 | 0 |
| B | 0 | 46 | 0 |
| C | 0 | 46 | 0 |
| D | 0 | 46 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 2221 | 47 | 2.116164% |
| B | 2220 | 77 | 3.468468% |
| C | 2219 | 76 | 3.424966% |
| D | 2220 | 66 | 2.972973% |

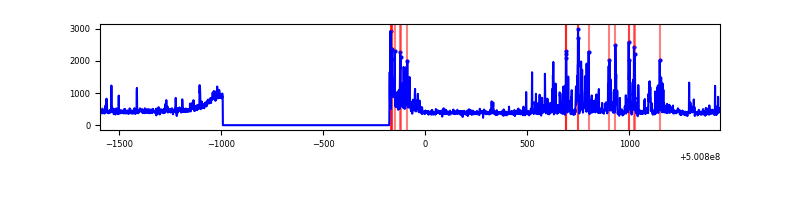

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3036 | 2221 | 1 | 1 | 0.03% | 0.05% |  |
| B | 3035 | 2220 | 21 | 21 | 0.69% | 0.95% |  |
| C | 3035 | 2220 | 95 | 95 | 3.13% | 4.28% |  |
| D | 3035 | 2220 | 42 | 42 | 1.38% | 1.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 26920 | 438.52 | 237 | 231 | 60.9 |
| A | 6 | 233 | 8150 | 130.11 | 237 | 231 | 60.9 |
| A | 13 | 254 | 4348 | 67.64 | 237 | 231 | 60.9 |
| B | 5 | 185 | 231338 | 4420.96 | 230 | 221 | 52.3 |
| B | 6 | 255 | 43928 | 836.06 | 230 | 221 | 52.3 |
| B | 2 | 249 | 11886 | 223.14 | 230 | 221 | 52.3 |
| C | 9 | 38 | 966855 | 15065.72 | 226 | 224 | 64.2 |
| C | 6 | 223 | 22341 | 344.71 | 226 | 224 | 64.2 |
| C | 14 | 254 | 15962 | 245.29 | 226 | 224 | 64.2 |
| D | 15 | 109 | 149807 | 2265.07 | 228 | 218 | 66.0 |
| D | 2 | 249 | 118216 | 1786.72 | 228 | 218 | 66.0 |
| D | 11 | 176 | 39074 | 588.36 | 228 | 218 | 66.0 |

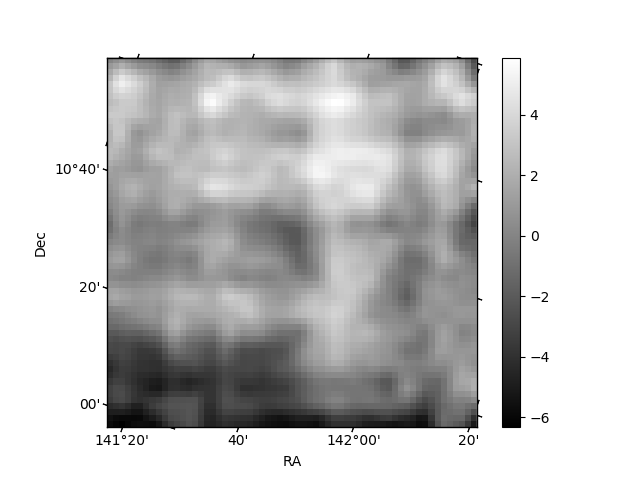

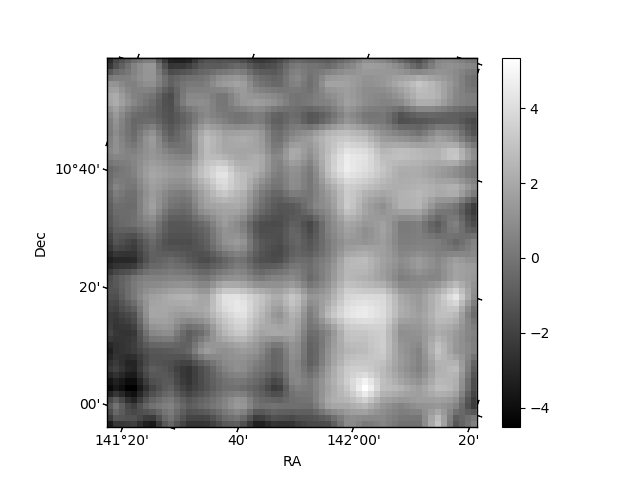

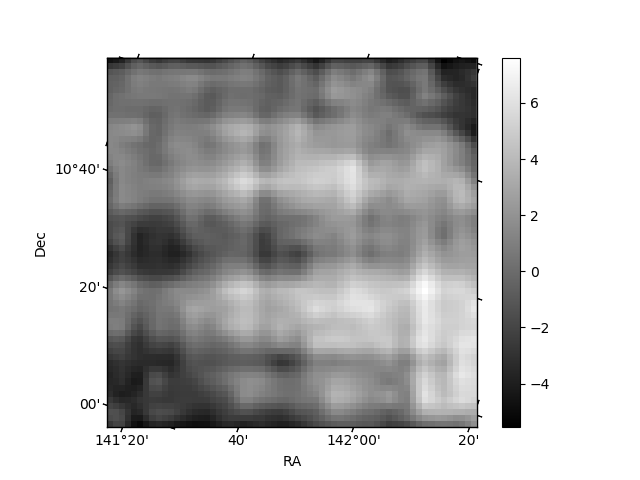

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

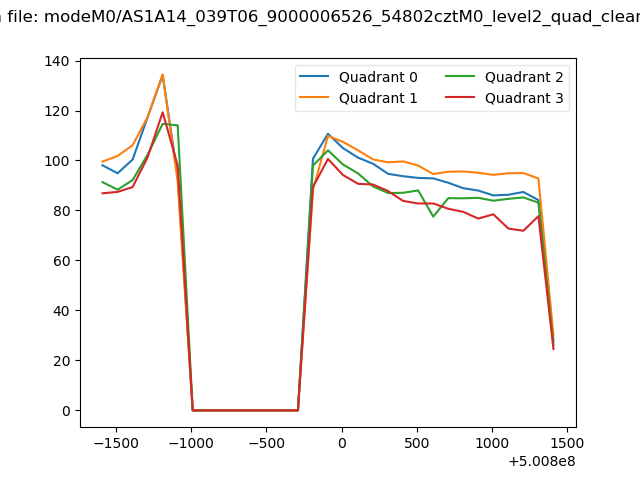

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

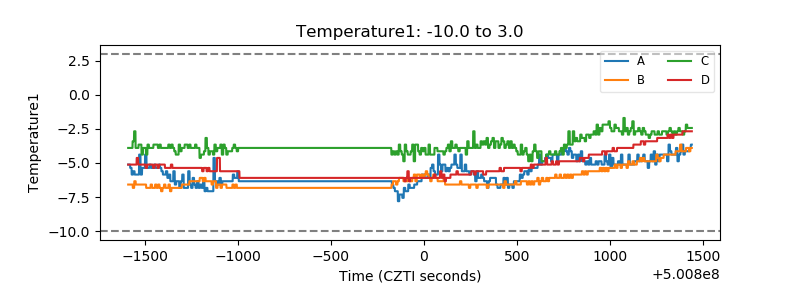

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

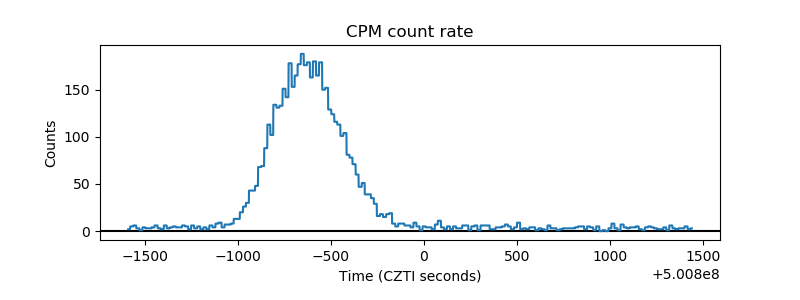

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

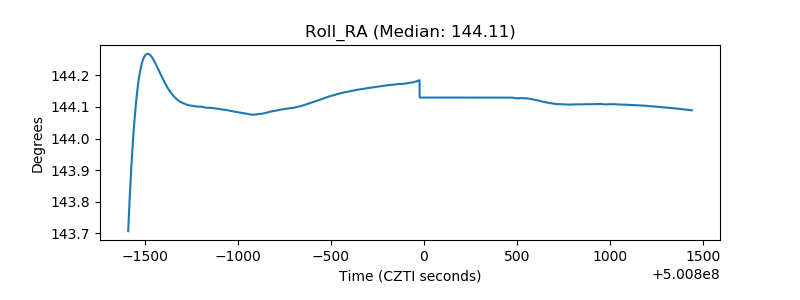

| _Roll_RA |  |
| Veto Counter |  |
