| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_039T06_9000006526_54804cztM0_level2.fits | modeM0/AS1A14_039T06_9000006526_54804cztM0_level2_quad_clean.evt |
| Size (bytes) | 408,096,000 | 85,668,480 |
| Size | 389.2 MB | 81.7 MB |
| Events in quadrant A | 2,488,549 | 564,272 |
| Events in quadrant B | 2,973,049 | 599,659 |
| Events in quadrant C | 5,637,388 | 502,881 |
| Events in quadrant D | 3,533,195 | 501,020 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12425 | 1 |
| B | 0 | 13502 | 10 |
| C | 0 | 21075 | 13 |
| D | 0 | 14917 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6097 | 56 | 0.918485% |
| B | 6092 | 108 | 1.772817% |
| C | 6095 | 471 | 7.727646% |
| D | 6097 | 173 | 2.837461% |

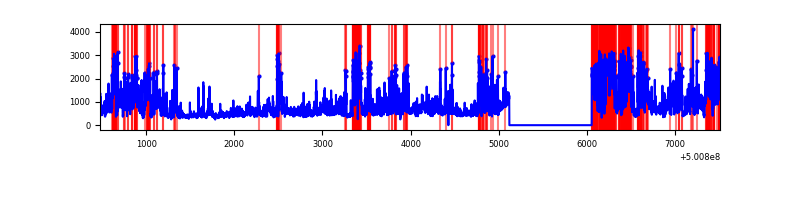

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7032 | 6097 | 3 | 3 | 0.04% | 0.05% |  |
| B | 7033 | 6095 | 45 | 45 | 0.64% | 0.74% |  |
| C | 7032 | 6097 | 482 | 482 | 6.85% | 7.91% |  |
| D | 7032 | 6097 | 126 | 126 | 1.79% | 2.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 22540 | 142.94 | 625 | 608 | 153.4 |
| A | 8 | 246 | 17067 | 107.27 | 625 | 608 | 153.4 |
| A | 13 | 254 | 12178 | 75.41 | 625 | 608 | 153.4 |
| B | 5 | 185 | 409241 | 3071.22 | 611 | 589 | 133.1 |
| B | 2 | 249 | 59806 | 445.04 | 611 | 589 | 133.1 |
| B | 10 | 247 | 35053 | 259.01 | 611 | 589 | 133.1 |
| C | 9 | 38 | 3119291 | 19225.2 | 586 | 581 | 162.2 |
| C | 14 | 254 | 98217 | 601.87 | 586 | 581 | 162.2 |
| C | 6 | 223 | 84657 | 518.28 | 586 | 581 | 162.2 |
| D | 15 | 109 | 348212 | 2021.72 | 601 | 576 | 172.0 |
| D | 2 | 249 | 182188 | 1056.18 | 601 | 576 | 172.0 |
| D | 15 | 42 | 121530 | 703.42 | 601 | 576 | 172.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

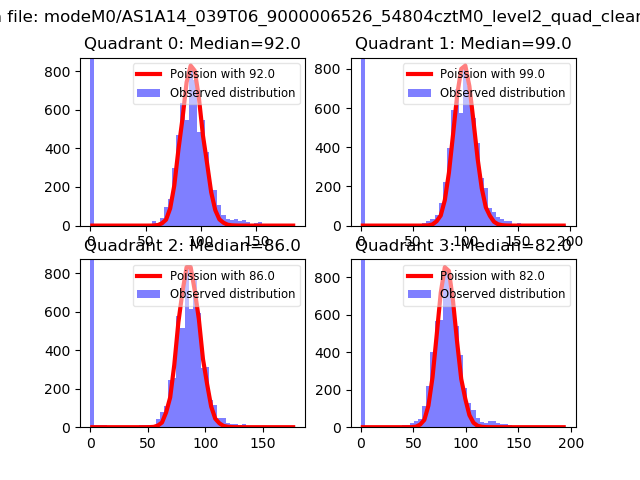

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

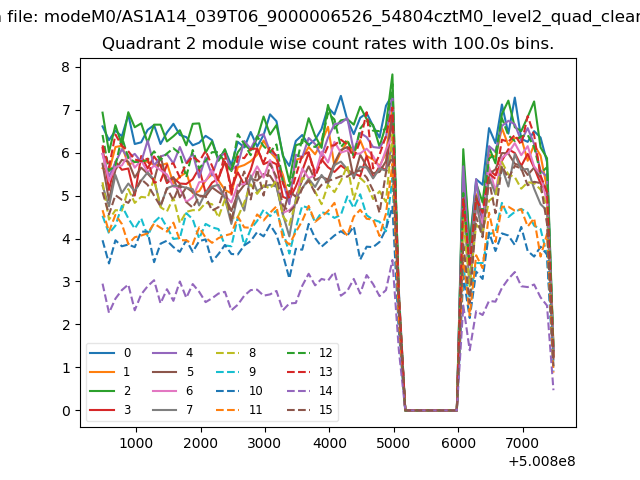

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

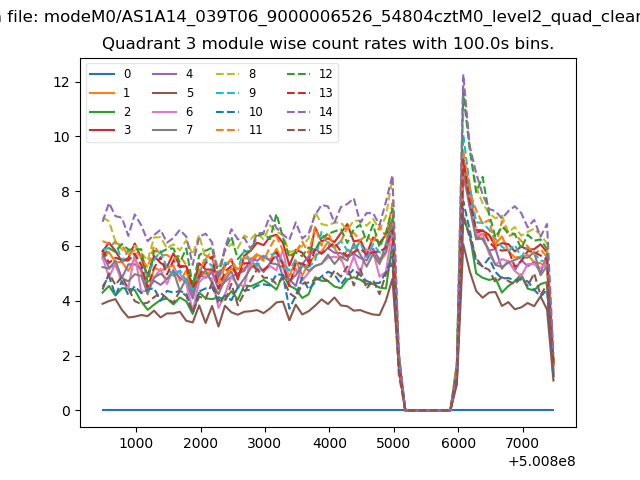

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

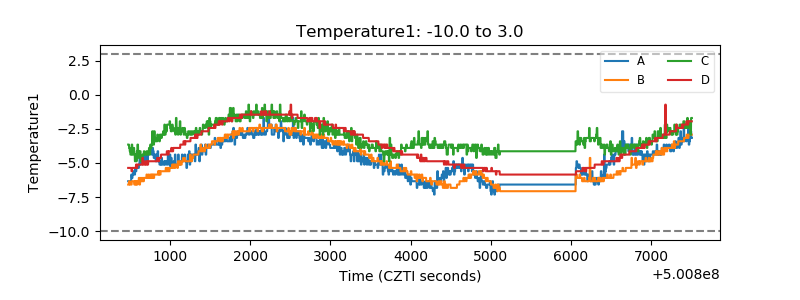

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

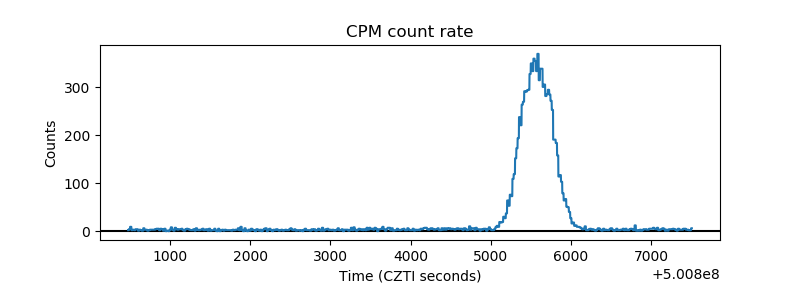

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

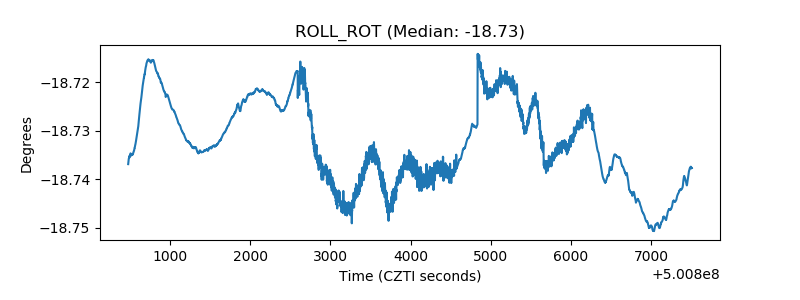

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

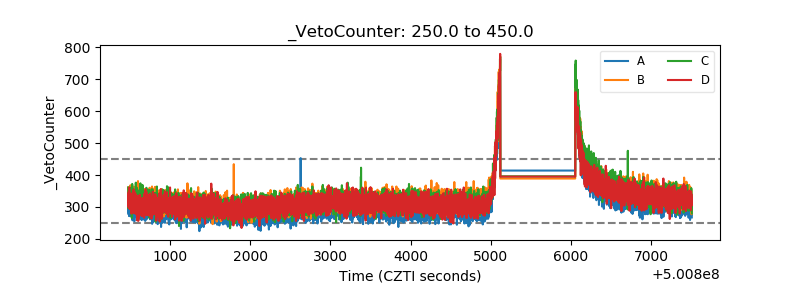

| Veto Counter |  |
