| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_039T06_9000006526_54815cztM0_level2.fits | modeM0/AS1A14_039T06_9000006526_54815cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,274,685,120 | 216,187,200 |
| Size | 1.2 GB | 206.2 MB |
| Events in quadrant A | 7,155,166 | 1,495,811 |
| Events in quadrant B | 8,112,183 | 1,586,568 |
| Events in quadrant C | 13,146,784 | 1,237,842 |
| Events in quadrant D | 17,496,993 | 1,091,009 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 34930 | 2 |
| B | 0 | 37165 | 2 |
| C | 0 | 51196 | 2 |
| D | 0 | 63965 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 330 | 0 |
| B | 0 | 330 | 0 |
| C | 0 | 330 | 0 |
| D | 0 | 330 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16442 | 174 | 1.058265% |
| B | 16443 | 349 | 2.122484% |
| C | 16443 | 2039 | 12.400414% |
| D | 16442 | 3469 | 21.098407% |

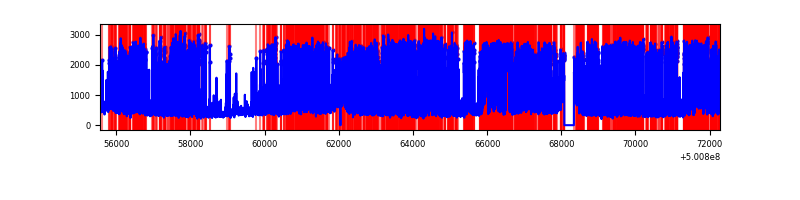

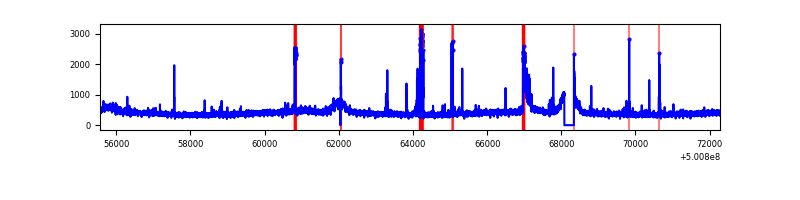

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 16717 | 16444 | 90 | 90 | 0.54% | 0.55% |  |
| B | 16718 | 16444 | 145 | 145 | 0.87% | 0.88% |  |
| C | 16718 | 16443 | 1572 | 1572 | 9.40% | 9.56% |  |
| D | 16717 | 16443 | 3456 | 3456 | 20.67% | 21.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 15 | 263871 | 626.56 | 1696 | 1654 | 418.5 |
| A | 0 | 117 | 139972 | 330.51 | 1696 | 1654 | 418.5 |
| A | 5 | 240 | 34282 | 77.96 | 1696 | 1654 | 418.5 |
| B | 5 | 185 | 537569 | 1483.33 | 1676 | 1613 | 361.3 |
| B | 7 | 0 | 310321 | 854.39 | 1676 | 1613 | 361.3 |
| B | 10 | 247 | 185970 | 510.23 | 1676 | 1613 | 361.3 |
| C | 4 | 5 | 4805556 | 11423.3 | 1531 | 1519 | 420.5 |
| C | 9 | 38 | 725366 | 1721.2 | 1531 | 1519 | 420.5 |
| C | 15 | 148 | 540147 | 1280.78 | 1531 | 1519 | 420.5 |
| D | 15 | 94 | 10461705 | 25040.91 | 1476 | 1413 | 417.7 |
| D | 1 | 31 | 290802 | 692.77 | 1476 | 1413 | 417.7 |
| D | 5 | 173 | 154313 | 366.03 | 1476 | 1413 | 417.7 |

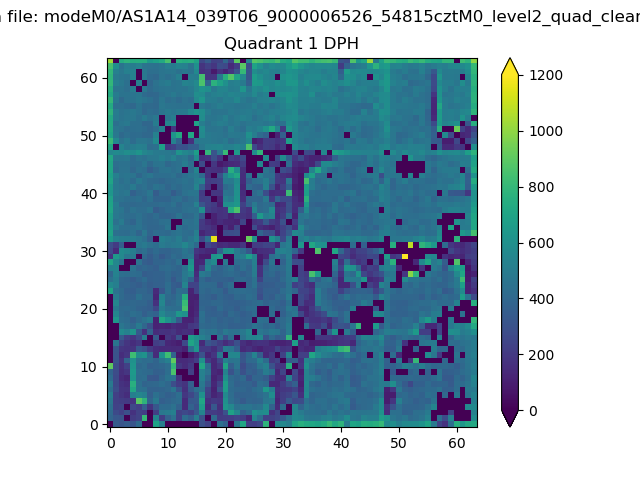

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

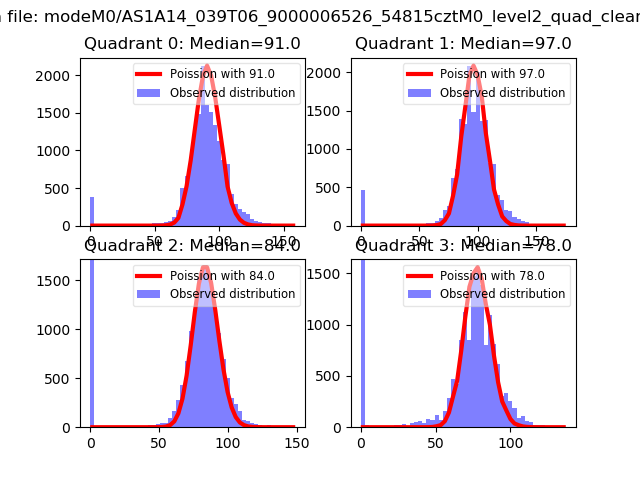

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

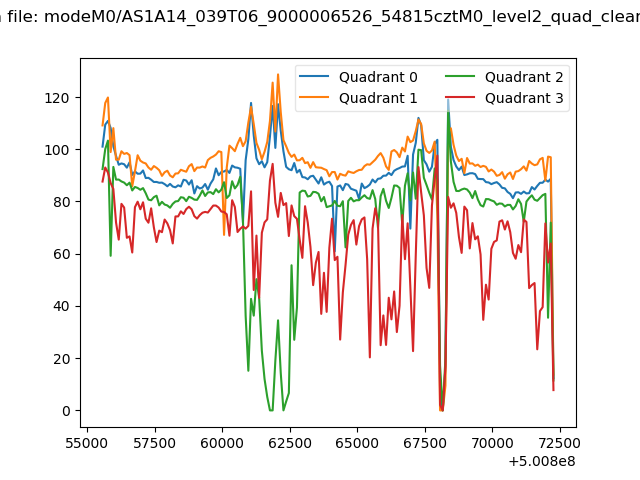

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

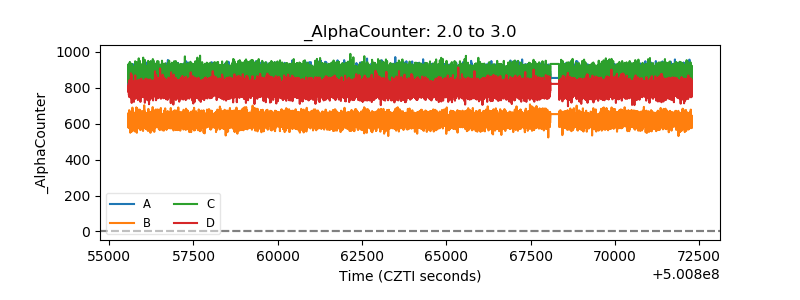

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
