| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_039T06_9000006526_54824cztM0_level2.fits | modeM0/AS1A14_039T06_9000006526_54824cztM0_level2_quad_clean.evt |
| Size (bytes) | 604,681,920 | 95,820,480 |
| Size | 576.7 MB | 91.4 MB |
| Events in quadrant A | 3,062,147 | 661,943 |
| Events in quadrant B | 3,736,564 | 697,416 |
| Events in quadrant C | 4,331,391 | 610,598 |
| Events in quadrant D | 10,709,955 | 443,812 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14523 | 2 |
| B | 0 | 16264 | 2 |
| C | 0 | 17936 | 2 |
| D | 0 | 36698 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7005 | 97 | 1.384725% |
| B | 7005 | 221 | 3.154889% |
| C | 7005 | 289 | 4.125625% |
| D | 7005 | 2041 | 29.136331% |

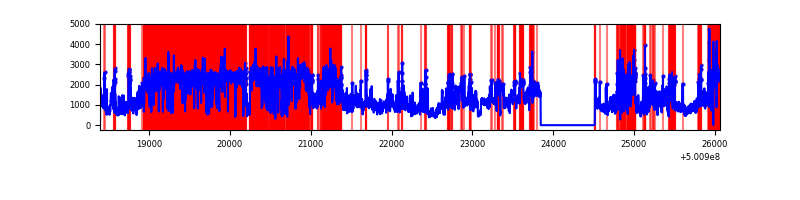

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7675 | 7006 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7675 | 7006 | 48 | 48 | 0.63% | 0.69% |  |
| C | 7675 | 7006 | 166 | 166 | 2.16% | 2.37% |  |
| D | 7675 | 7006 | 2097 | 2097 | 27.32% | 29.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 20961 | 107.22 | 764 | 745 | 188.6 |
| A | 4 | 3 | 16882 | 85.58 | 764 | 745 | 188.6 |
| A | 13 | 254 | 16696 | 84.6 | 764 | 745 | 188.6 |
| B | 5 | 185 | 359681 | 2200.92 | 749 | 719 | 163.1 |
| B | 10 | 247 | 190114 | 1161.25 | 749 | 719 | 163.1 |
| B | 2 | 249 | 147936 | 902.64 | 749 | 719 | 163.1 |
| C | 4 | 5 | 608269 | 3034.46 | 734 | 729 | 200.2 |
| C | 12 | 252 | 298416 | 1486.85 | 734 | 729 | 200.2 |
| C | 13 | 3 | 190831 | 949.5 | 734 | 729 | 200.2 |
| D | 2 | 172 | 4992851 | 26228.18 | 674 | 645 | 190.3 |
| D | 3 | 12 | 1522020 | 7993.04 | 674 | 645 | 190.3 |
| D | 1 | 31 | 707693 | 3714.71 | 674 | 645 | 190.3 |

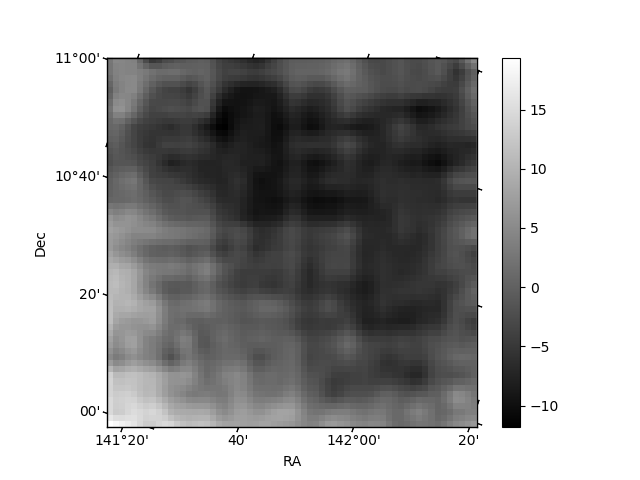

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

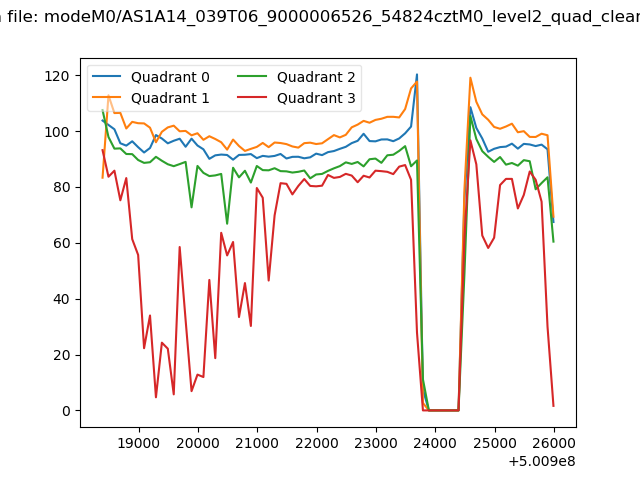

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

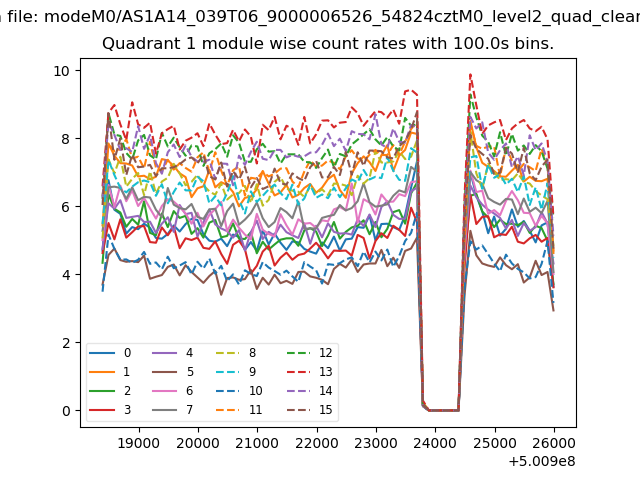

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

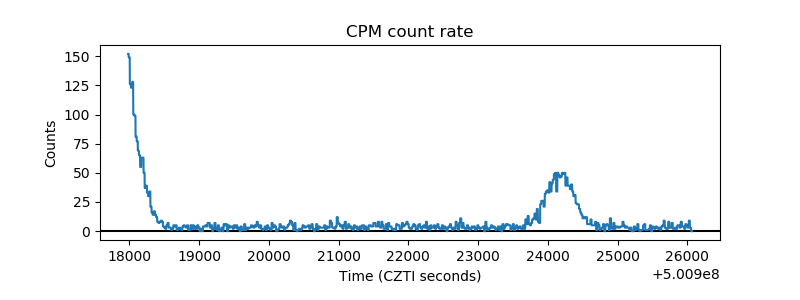

| _CPM_Rate |  |

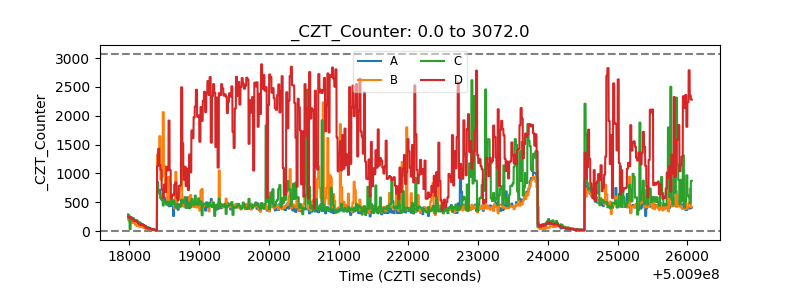

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

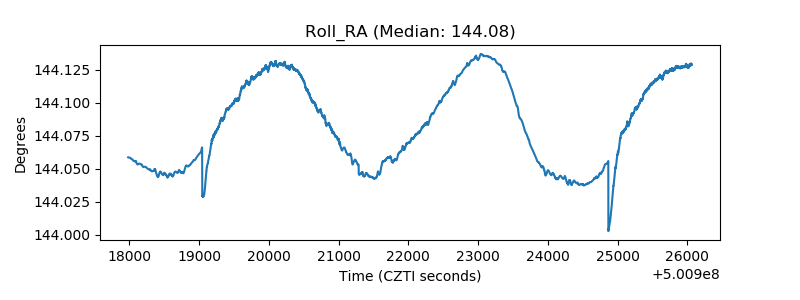

| _Roll_RA |  |

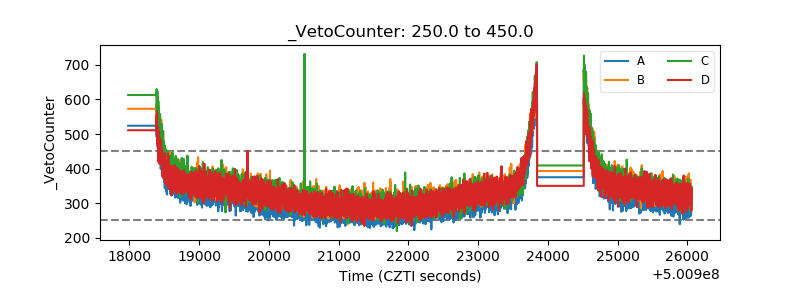

| Veto Counter |  |
