| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_039T06_9000006526_54830cztM0_level2.fits | modeM0/AS1A14_039T06_9000006526_54830cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,866,683,520 | 350,760,960 |
| Size | 1.7 GB | 334.5 MB |
| Events in quadrant A | 11,243,114 | 2,366,424 |
| Events in quadrant B | 13,957,204 | 2,455,704 |
| Events in quadrant C | 15,920,278 | 2,155,119 |
| Events in quadrant D | 26,004,552 | 1,887,043 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 53767 | 12 |
| B | 0 | 61567 | 14 |
| C | 0 | 66694 | 24 |
| D | 0 | 95093 | 34 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 514 | 0 |
| B | 0 | 514 | 0 |
| C | 0 | 514 | 0 |
| D | 0 | 514 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 25522 | 219 | 0.858083% |
| B | 25521 | 1105 | 4.329768% |
| C | 25518 | 1389 | 5.443217% |
| D | 25517 | 3434 | 13.457695% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 26642 | 25528 | 70 | 70 | 0.26% | 0.27% |  |
| B | 26643 | 25528 | 515 | 515 | 1.93% | 2.02% |  |
| C | 26642 | 25528 | 1150 | 1150 | 4.32% | 4.50% |  |
| D | 26642 | 25526 | 2750 | 2750 | 10.32% | 10.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 264732 | 397.75 | 2674 | 2610 | 659.0 |
| A | 0 | 8 | 212546 | 318.56 | 2674 | 2610 | 659.0 |
| A | 4 | 249 | 76268 | 111.77 | 2674 | 2610 | 659.0 |
| B | 5 | 185 | 1450673 | 2560.39 | 2617 | 2517 | 565.6 |
| B | 5 | 236 | 1338622 | 2362.28 | 2617 | 2517 | 565.6 |
| B | 10 | 247 | 544523 | 958.29 | 2617 | 2517 | 565.6 |
| C | 12 | 252 | 2079239 | 2985.42 | 2538 | 2515 | 695.6 |
| C | 13 | 3 | 1203208 | 1726.07 | 2538 | 2515 | 695.6 |
| C | 14 | 254 | 982081 | 1408.19 | 2538 | 2515 | 695.6 |
| D | 2 | 172 | 3622681 | 5271.04 | 2405 | 2299 | 686.8 |
| D | 3 | 12 | 3165149 | 4604.91 | 2405 | 2299 | 686.8 |
| D | 11 | 176 | 2372634 | 3451.05 | 2405 | 2299 | 686.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

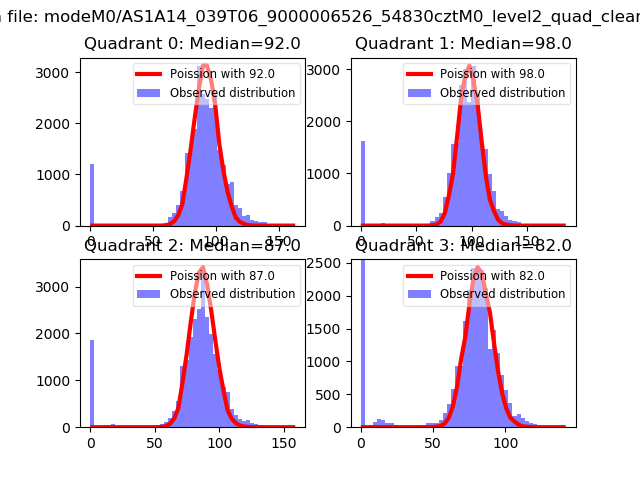

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

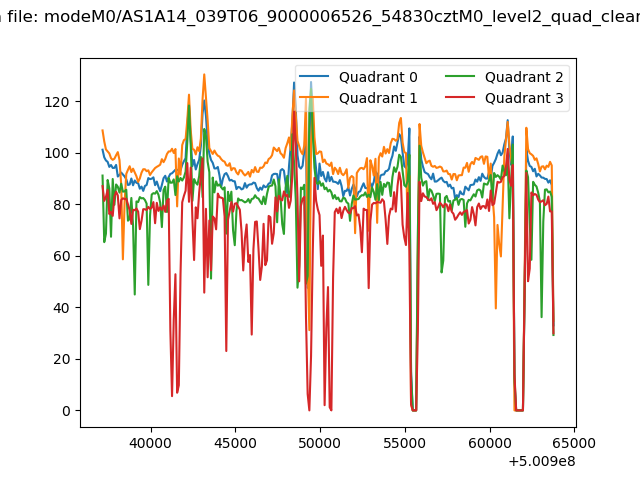

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

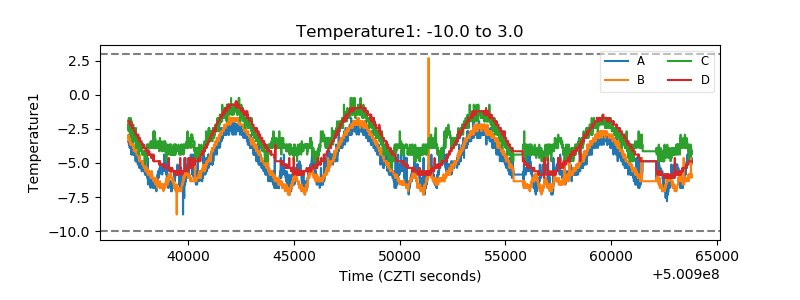

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

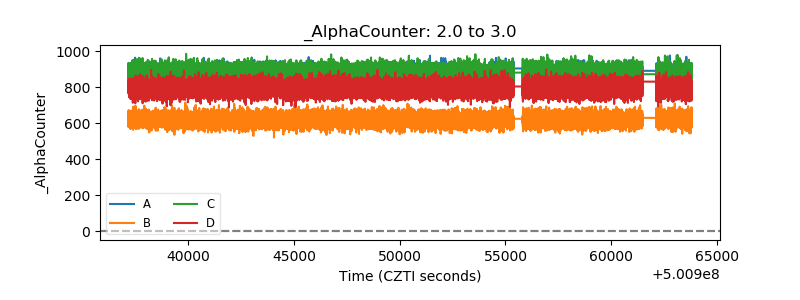

| Alpha Counter |  |
| _CPM_Rate |  |

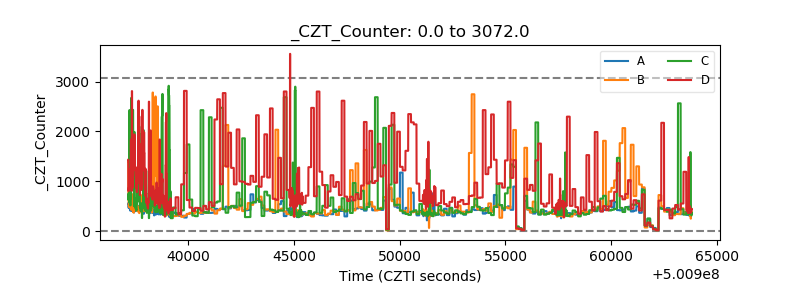

| CZT Counter |  |

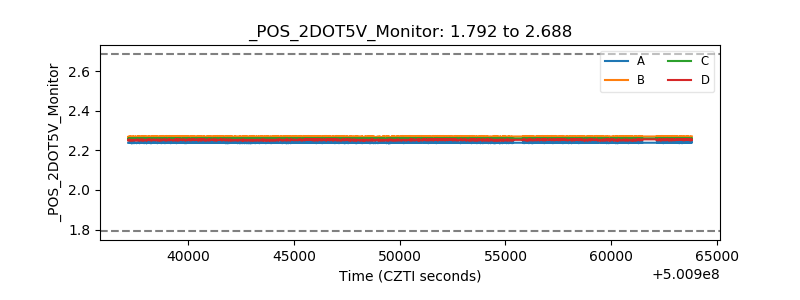

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

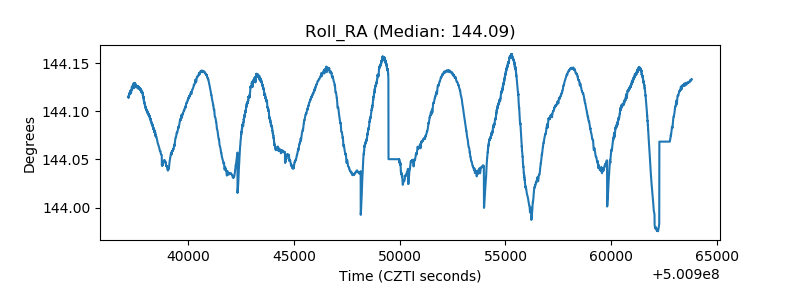

| _Roll_RA |  |
| Veto Counter |  |
