| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_039T06_9000006526_54835cztM0_level2.fits | modeM0/AS1A14_039T06_9000006526_54835cztM0_level2_quad_clean.evt |
| Size (bytes) | 407,917,440 | 88,185,600 |
| Size | 389.0 MB | 84.1 MB |
| Events in quadrant A | 2,745,785 | 588,239 |
| Events in quadrant B | 2,902,421 | 630,322 |
| Events in quadrant C | 2,954,455 | 553,927 |
| Events in quadrant D | 6,027,460 | 476,501 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12570 | 2 |
| B | 0 | 12939 | 1 |
| C | 0 | 13240 | 1 |
| D | 0 | 22029 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6034 | 71 | 1.176666% |
| B | 6035 | 98 | 1.623861% |
| C | 6035 | 114 | 1.888981% |
| D | 6035 | 733 | 12.145816% |

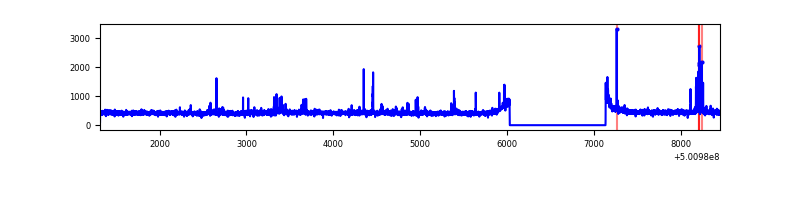

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7139 | 6035 | 5 | 5 | 0.07% | 0.08% |  |
| B | 7140 | 6036 | 20 | 20 | 0.28% | 0.33% |  |
| C | 7140 | 6036 | 70 | 70 | 0.98% | 1.16% |  |
| D | 7140 | 6036 | 606 | 606 | 8.49% | 10.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 55286 | 337.37 | 657 | 642 | 162.0 |
| A | 13 | 248 | 42245 | 256.86 | 657 | 642 | 162.0 |
| A | 4 | 3 | 23265 | 139.67 | 657 | 642 | 162.0 |
| B | 5 | 236 | 140334 | 1009.8 | 642 | 619 | 138.4 |
| B | 5 | 185 | 109578 | 787.51 | 642 | 619 | 138.4 |
| B | 10 | 247 | 54412 | 388.79 | 642 | 619 | 138.4 |
| C | 12 | 2 | 127932 | 735.95 | 629 | 623 | 173.0 |
| C | 6 | 223 | 120318 | 691.93 | 629 | 623 | 173.0 |
| C | 12 | 252 | 117278 | 674.36 | 629 | 623 | 173.0 |
| D | 11 | 176 | 1867265 | 10949.42 | 601 | 576 | 170.5 |
| D | 1 | 31 | 422185 | 2473.03 | 601 | 576 | 170.5 |
| D | 3 | 12 | 350130 | 2050.37 | 601 | 576 | 170.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

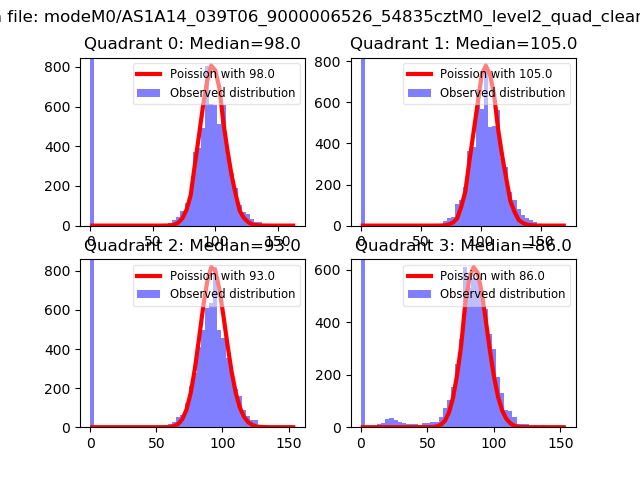

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

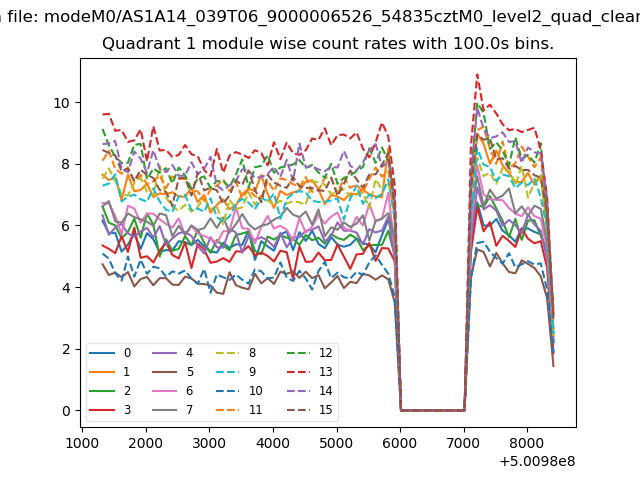

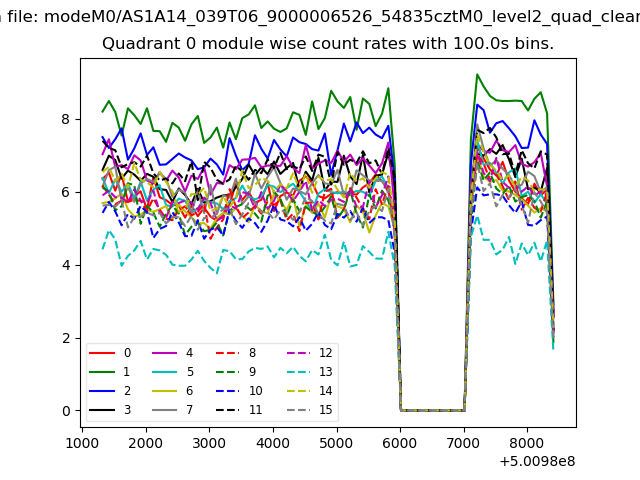

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

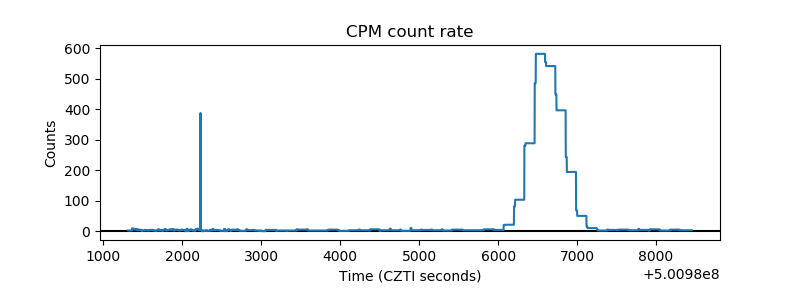

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

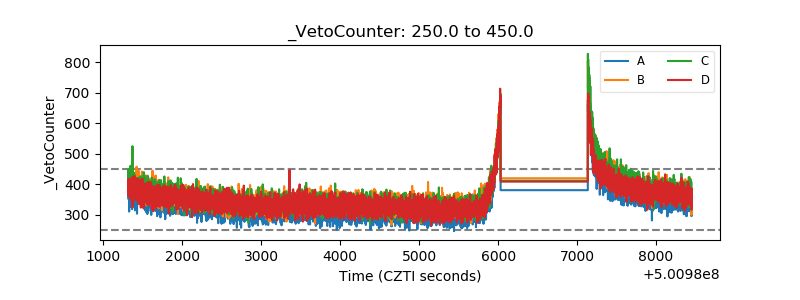

| Veto Counter |  |
