| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_039T06_9000006526_54836cztM0_level2.fits | modeM0/AS1A14_039T06_9000006526_54836cztM0_level2_quad_clean.evt |
| Size (bytes) | 502,522,560 | 95,140,800 |
| Size | 479.2 MB | 90.7 MB |
| Events in quadrant A | 3,114,594 | 643,303 |
| Events in quadrant B | 3,500,226 | 685,842 |
| Events in quadrant C | 3,588,608 | 602,984 |
| Events in quadrant D | 7,887,314 | 490,537 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13992 | 2 |
| B | 0 | 14967 | 2 |
| C | 0 | 15334 | 2 |
| D | 0 | 28006 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6574 | 123 | 1.871007% |
| B | 6574 | 206 | 3.133556% |
| C | 6574 | 225 | 3.422574% |
| D | 6574 | 1274 | 19.379373% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7644 | 6576 | 17 | 17 | 0.22% | 0.26% |  |
| B | 7644 | 6576 | 60 | 60 | 0.78% | 0.91% |  |
| C | 7644 | 6576 | 123 | 123 | 1.61% | 1.87% |  |
| D | 7644 | 6576 | 1077 | 1077 | 14.09% | 16.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 117026 | 642.74 | 735 | 720 | 181.0 |
| A | 4 | 3 | 41374 | 224.67 | 735 | 720 | 181.0 |
| A | 13 | 248 | 24182 | 129.66 | 735 | 720 | 181.0 |
| B | 5 | 236 | 247852 | 1618.96 | 713 | 687 | 152.7 |
| B | 5 | 185 | 225917 | 1475.28 | 713 | 687 | 152.7 |
| B | 10 | 247 | 86258 | 560.5 | 713 | 687 | 152.7 |
| C | 12 | 252 | 302026 | 1569.87 | 701 | 696 | 191.9 |
| C | 12 | 2 | 221926 | 1152.56 | 701 | 696 | 191.9 |
| C | 6 | 223 | 72525 | 374.21 | 701 | 696 | 191.9 |
| D | 11 | 176 | 2251553 | 12158.25 | 656 | 629 | 185.1 |
| D | 1 | 31 | 760127 | 4102.39 | 656 | 629 | 185.1 |
| D | 3 | 12 | 710298 | 3833.24 | 656 | 629 | 185.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

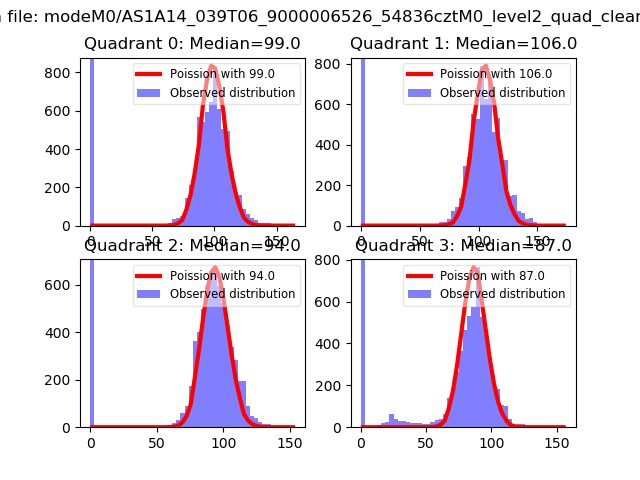

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

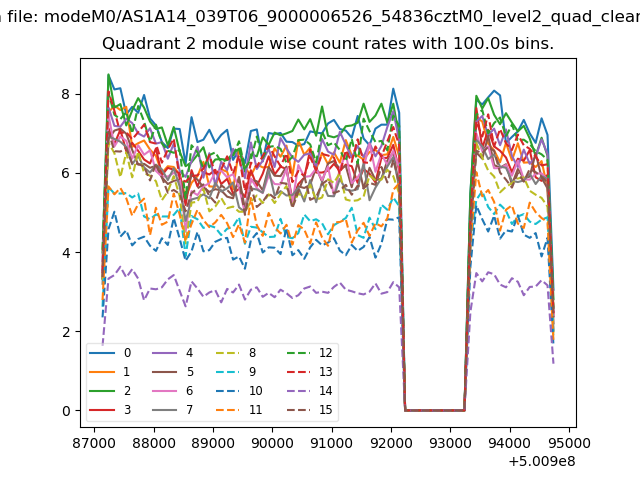

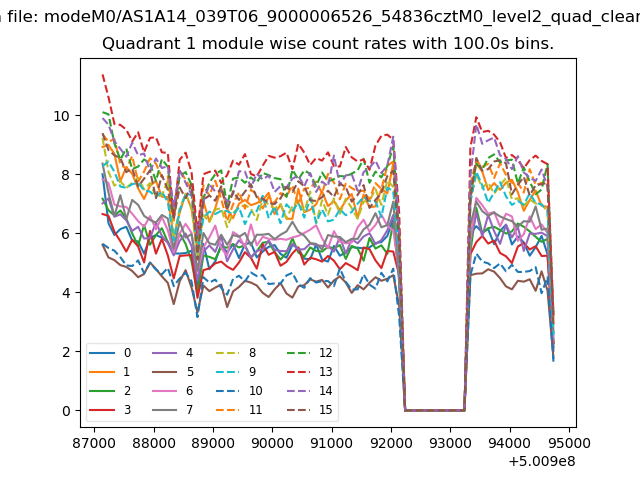

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

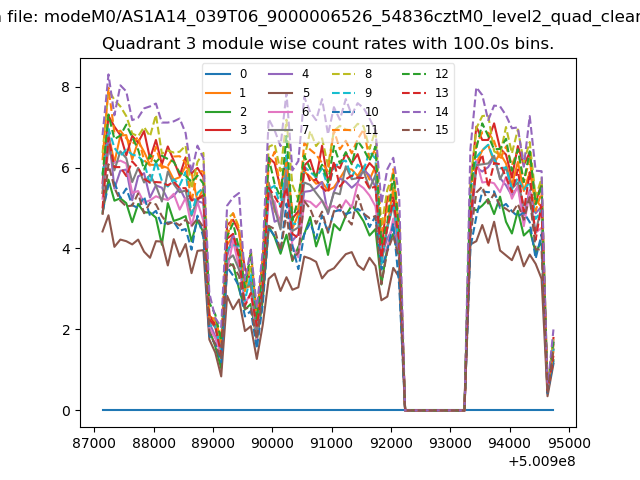

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

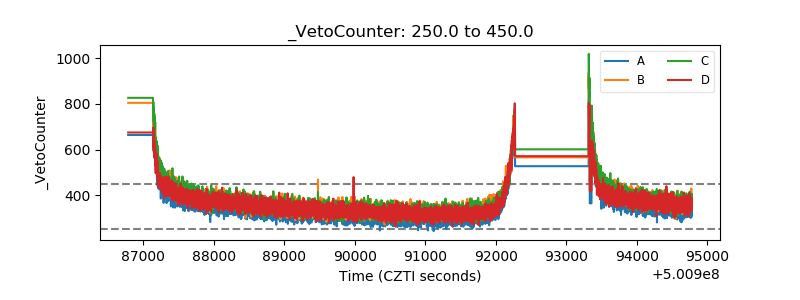

| Veto Counter |  |
