| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_039T06_9000006526_54840cztM0_level2.fits | modeM0/AS1A14_039T06_9000006526_54840cztM0_level2_quad_clean.evt |
| Size (bytes) | 519,995,520 | 118,333,440 |
| Size | 495.9 MB | 112.9 MB |
| Events in quadrant A | 3,867,699 | 776,772 |
| Events in quadrant B | 4,610,168 | 824,605 |
| Events in quadrant C | 4,914,139 | 725,369 |
| Events in quadrant D | 5,217,880 | 685,348 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17614 | 1 |
| B | 0 | 19586 | 1 |
| C | 0 | 20778 | 2 |
| D | 0 | 21548 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8218 | 137 | 1.667072% |
| B | 8218 | 250 | 3.042103% |
| C | 8218 | 368 | 4.477975% |
| D | 8218 | 398 | 4.843028% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

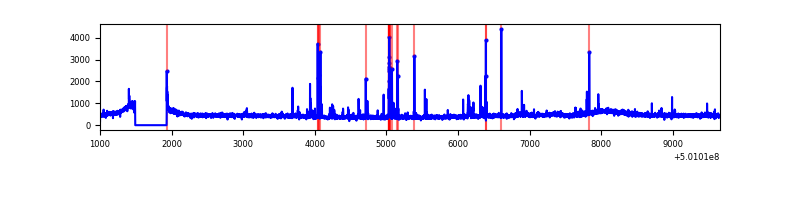

| A | 8658 | 8219 | 23 | 23 | 0.27% | 0.28% |  |
| B | 8658 | 8219 | 78 | 78 | 0.90% | 0.95% |  |

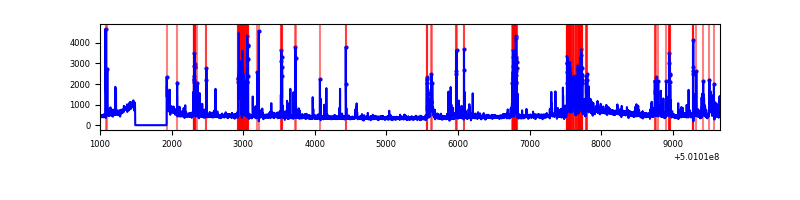

| C | 8658 | 8219 | 223 | 223 | 2.58% | 2.71% |  |
| D | 8658 | 8219 | 246 | 246 | 2.84% | 2.99% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 206 | 97610 | 425.57 | 916 | 892 | 227.3 |
| A | 13 | 248 | 44501 | 191.88 | 916 | 892 | 227.3 |
| A | 4 | 3 | 39446 | 169.64 | 916 | 892 | 227.3 |
| B | 2 | 249 | 393209 | 2018.28 | 897 | 864 | 194.4 |
| B | 10 | 247 | 340803 | 1748.7 | 897 | 864 | 194.4 |
| B | 5 | 185 | 198275 | 1015.51 | 897 | 864 | 194.4 |
| C | 12 | 252 | 490359 | 2042.46 | 883 | 875 | 239.7 |
| C | 15 | 209 | 366932 | 1527.44 | 883 | 875 | 239.7 |
| C | 4 | 5 | 298825 | 1243.25 | 883 | 875 | 239.7 |
| D | 3 | 12 | 398056 | 1592.76 | 883 | 844 | 249.4 |
| D | 15 | 250 | 357803 | 1431.35 | 883 | 844 | 249.4 |
| D | 10 | 181 | 280913 | 1123.03 | 883 | 844 | 249.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

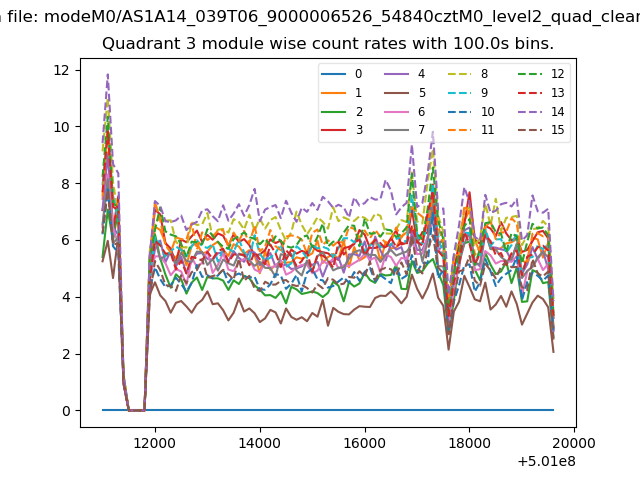

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

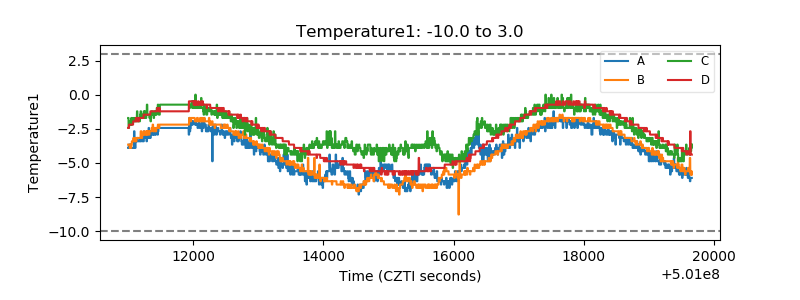

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

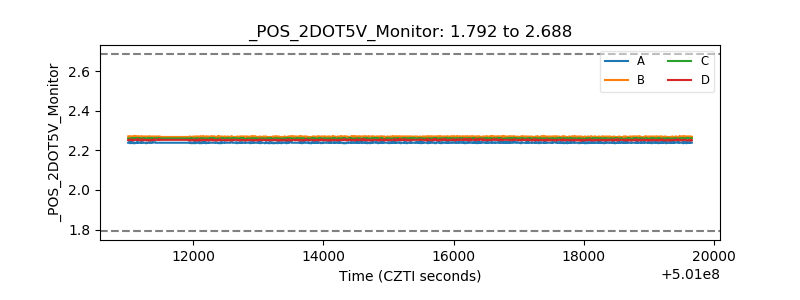

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

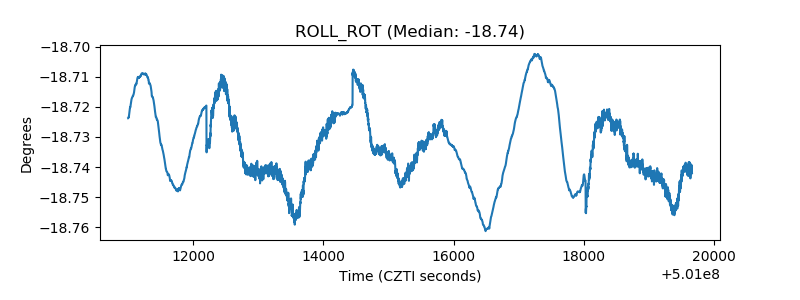

| _ROLL_ROT |  |
| _Roll_DEC |  |

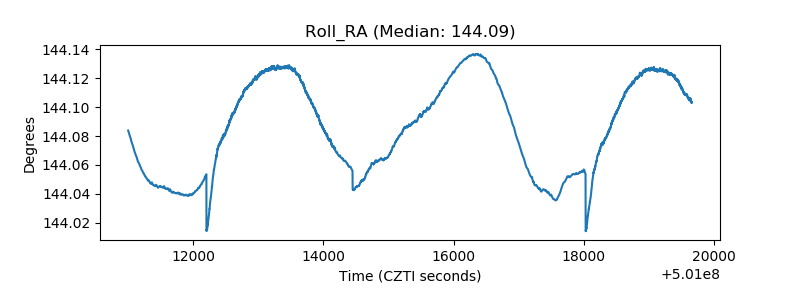

| _Roll_RA |  |

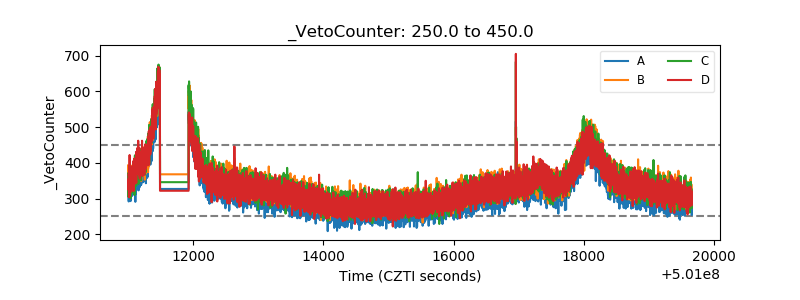

| Veto Counter |  |
