| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_039T06_9000006526_54850cztM0_level2.fits | modeM0/AS1A14_039T06_9000006526_54850cztM0_level2_quad_clean.evt |
| Size (bytes) | 360,449,280 | 90,552,960 |
| Size | 343.8 MB | 86.4 MB |
| Events in quadrant A | 2,739,254 | 596,017 |
| Events in quadrant B | 2,900,939 | 637,914 |
| Events in quadrant C | 3,220,243 | 565,486 |
| Events in quadrant D | 4,008,372 | 517,241 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12524 | 1 |
| B | 0 | 13005 | 1 |
| C | 0 | 13942 | 1 |
| D | 0 | 16081 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6084 | 56 | 0.920447% |
| B | 6084 | 80 | 1.314924% |
| C | 6085 | 85 | 1.396878% |
| D | 6085 | 261 | 4.289236% |

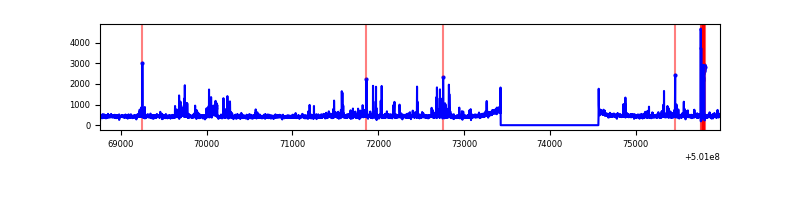

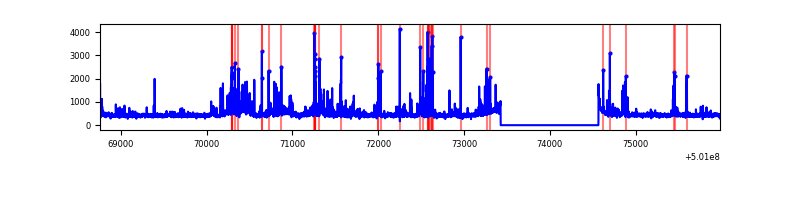

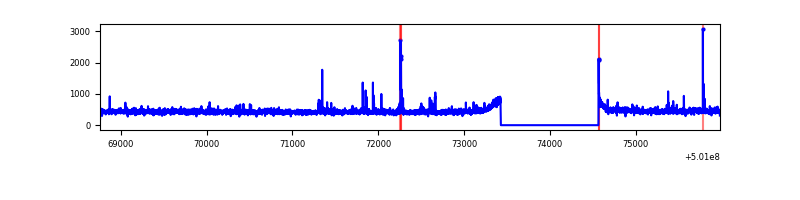

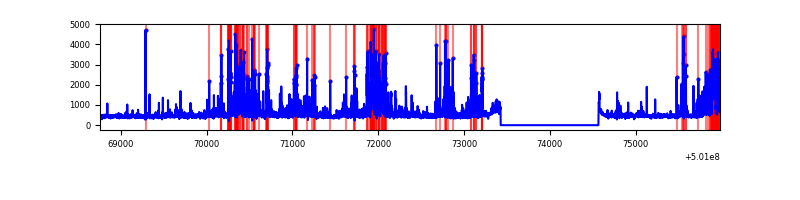

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7224 | 6085 | 6 | 6 | 0.08% | 0.10% |  |
| B | 7224 | 6084 | 28 | 28 | 0.39% | 0.46% |  |
| C | 7225 | 6086 | 42 | 42 | 0.58% | 0.69% |  |
| D | 7225 | 6086 | 217 | 217 | 3.00% | 3.57% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 41909 | 250.8 | 667 | 651 | 164.5 |
| A | 5 | 241 | 31548 | 187.81 | 667 | 651 | 164.5 |
| A | 13 | 254 | 18125 | 106.22 | 667 | 651 | 164.5 |
| B | 10 | 247 | 76362 | 547.06 | 651 | 627 | 138.4 |
| B | 5 | 236 | 73370 | 525.45 | 651 | 627 | 138.4 |
| B | 5 | 185 | 60182 | 430.19 | 651 | 627 | 138.4 |
| C | 12 | 252 | 427762 | 2392.8 | 645 | 639 | 178.5 |
| C | 14 | 254 | 69599 | 386.32 | 645 | 639 | 178.5 |
| C | 12 | 250 | 68892 | 382.36 | 645 | 639 | 178.5 |
| D | 14 | 52 | 390089 | 2143.05 | 637 | 608 | 181.7 |
| D | 3 | 12 | 267311 | 1467.49 | 637 | 608 | 181.7 |
| D | 7 | 129 | 128984 | 706.37 | 637 | 608 | 181.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

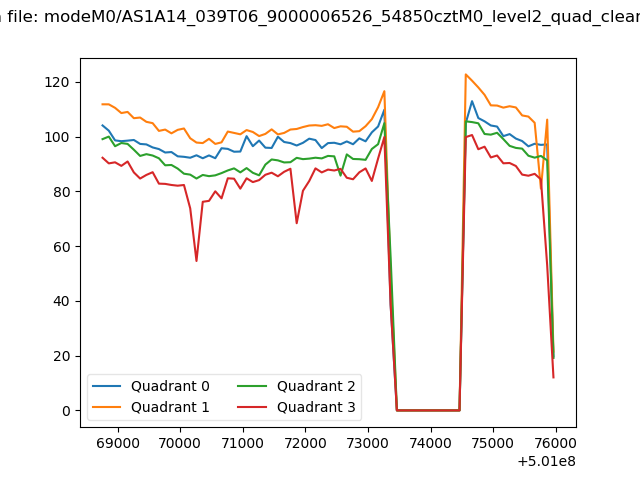

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

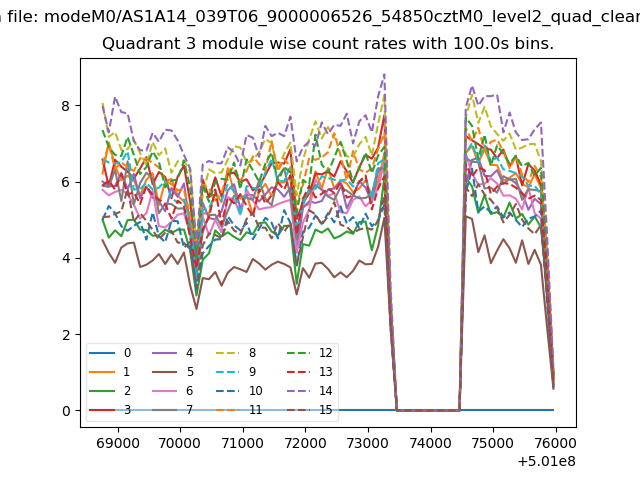

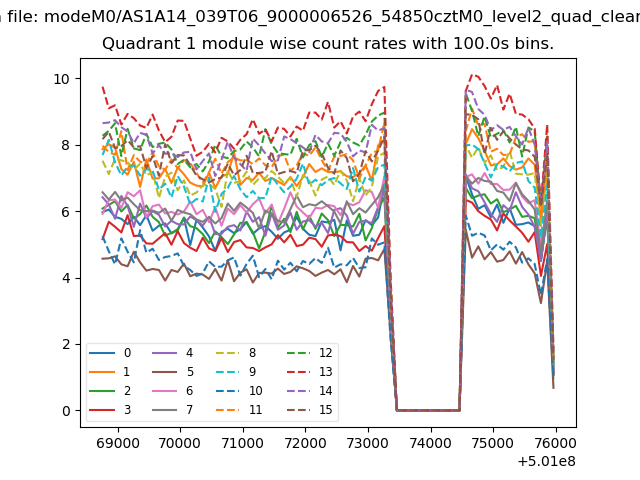

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

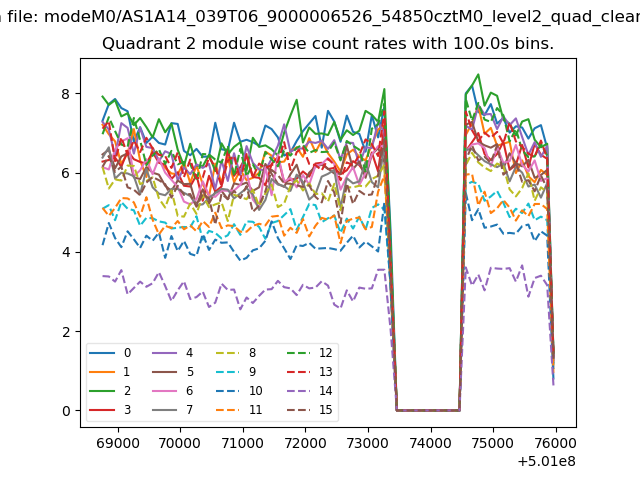

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
