| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_039T06_9000006526_54862cztM0_level2.fits | modeM0/AS1A14_039T06_9000006526_54862cztM0_level2_quad_clean.evt |
| Size (bytes) | 386,547,840 | 96,912,000 |
| Size | 368.6 MB | 92.4 MB |
| Events in quadrant A | 2,893,879 | 634,025 |
| Events in quadrant B | 3,056,501 | 676,405 |
| Events in quadrant C | 3,605,146 | 597,208 |
| Events in quadrant D | 4,227,631 | 556,621 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13928 | 1 |
| B | 0 | 14279 | 1 |
| C | 0 | 15650 | 1 |
| D | 0 | 17572 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6749 | 56 | 0.829753% |
| B | 6750 | 91 | 1.348148% |
| C | 6750 | 104 | 1.540741% |
| D | 6750 | 241 | 3.570370% |

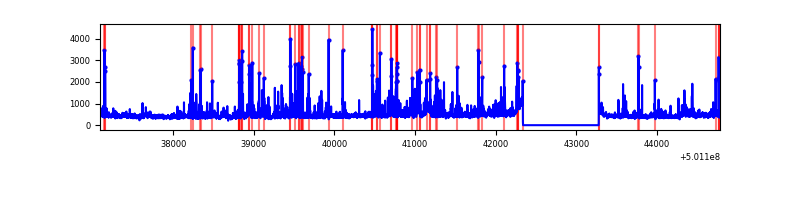

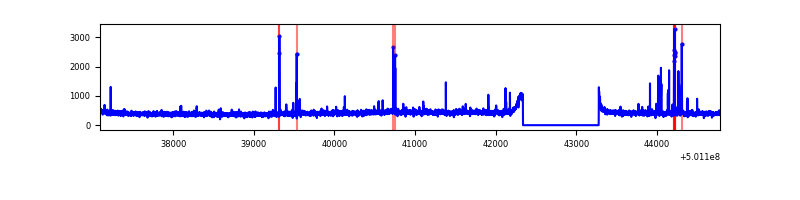

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7689 | 6749 | 13 | 13 | 0.17% | 0.19% |  |
| B | 7690 | 6750 | 30 | 30 | 0.39% | 0.44% |  |
| C | 7690 | 6751 | 74 | 74 | 0.96% | 1.10% |  |
| D | 7690 | 6751 | 162 | 162 | 2.11% | 2.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 241 | 80955 | 456.74 | 708 | 690 | 175.7 |
| A | 0 | 8 | 30568 | 170.02 | 708 | 690 | 175.7 |
| A | 8 | 249 | 13505 | 72.92 | 708 | 690 | 175.7 |
| B | 1 | 207 | 69776 | 459.81 | 696 | 671 | 150.3 |
| B | 10 | 247 | 67459 | 444.4 | 696 | 671 | 150.3 |
| B | 7 | 252 | 64414 | 424.14 | 696 | 671 | 150.3 |
| C | 14 | 254 | 378293 | 2001.94 | 682 | 676 | 188.6 |
| C | 12 | 252 | 216261 | 1142.92 | 682 | 676 | 188.6 |
| C | 4 | 5 | 182253 | 962.63 | 682 | 676 | 188.6 |
| D | 6 | 46 | 550292 | 2828.02 | 677 | 650 | 194.4 |
| D | 8 | 160 | 365177 | 1875.56 | 677 | 650 | 194.4 |
| D | 10 | 181 | 86045 | 439.37 | 677 | 650 | 194.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

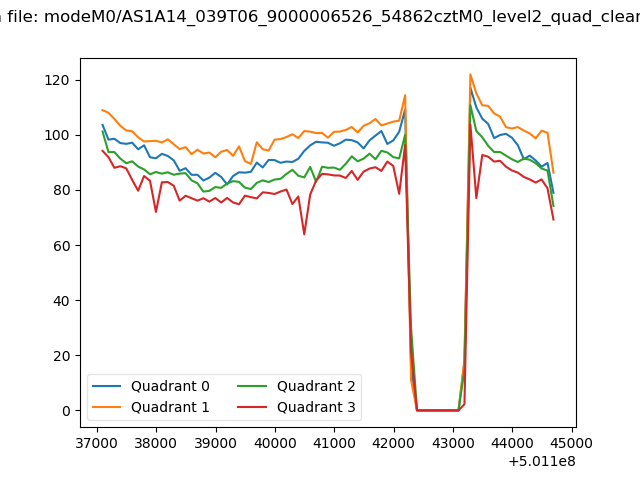

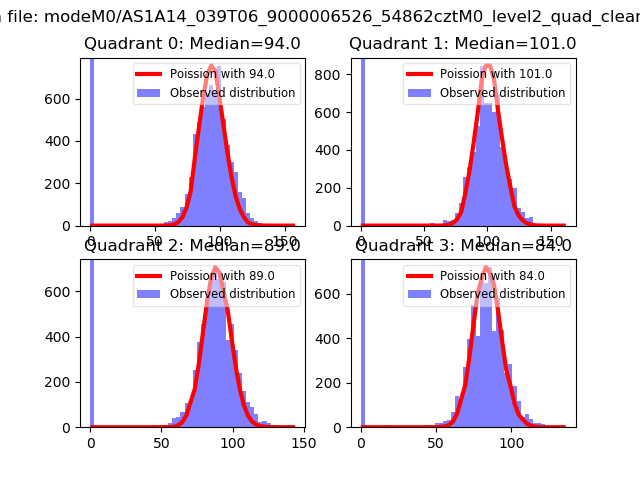

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

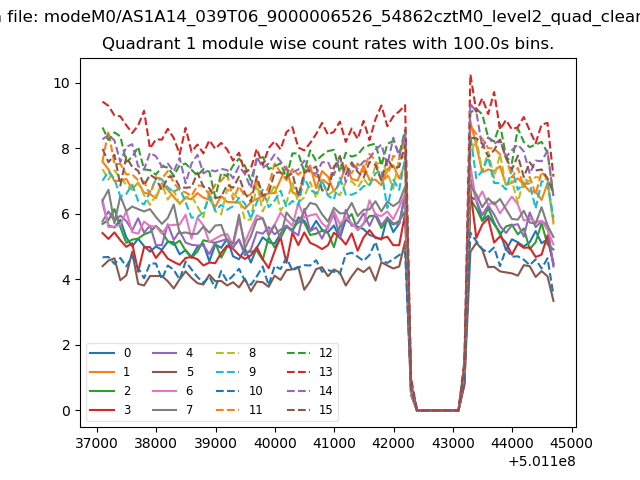

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

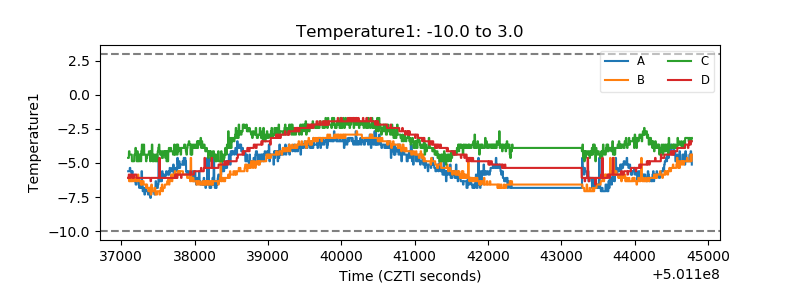

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

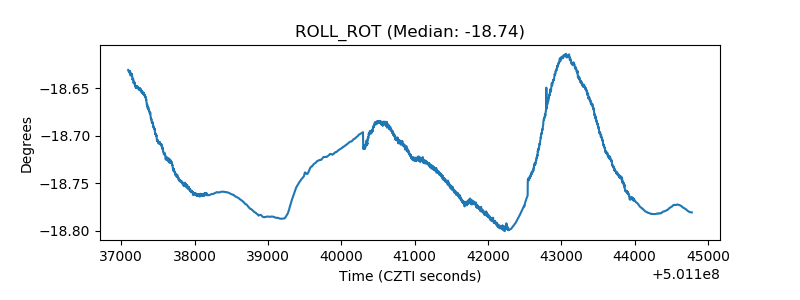

| _ROLL_ROT |  |
| _Roll_DEC |  |

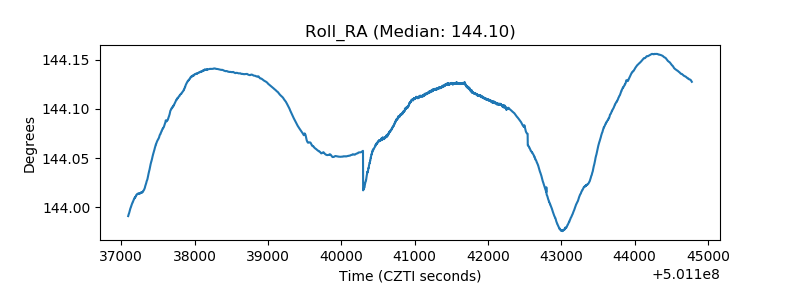

| _Roll_RA |  |
| Veto Counter |  |
