| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_039T06_9000006526_54884cztM0_level2.fits | modeM0/AS1A14_039T06_9000006526_54884cztM0_level2_quad_clean.evt |
| Size (bytes) | 614,666,880 | 118,621,440 |
| Size | 586.2 MB | 113.1 MB |
| Events in quadrant A | 4,368,344 | 790,664 |
| Events in quadrant B | 4,772,336 | 822,536 |
| Events in quadrant C | 6,388,941 | 718,226 |
| Events in quadrant D | 6,577,261 | 681,138 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18934 | 1 |
| B | 0 | 20291 | 17 |
| C | 0 | 24932 | 35 |
| D | 0 | 25525 | 20 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 170 | 0 |
| B | 0 | 170 | 0 |
| C | 0 | 170 | 0 |
| D | 0 | 170 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8335 | 133 | 1.595681% |
| B | 8328 | 385 | 4.622959% |
| C | 8331 | 517 | 6.205738% |
| D | 8328 | 560 | 6.724304% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8530 | 8337 | 20 | 20 | 0.23% | 0.24% |  |
| B | 8530 | 8335 | 175 | 175 | 2.05% | 2.10% |  |
| C | 8531 | 8336 | 398 | 398 | 4.67% | 4.77% |  |
| D | 8531 | 8335 | 379 | 379 | 4.44% | 4.55% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 562418 | 2427.53 | 940 | 916 | 231.3 |
| A | 13 | 248 | 68400 | 291.75 | 940 | 916 | 231.3 |
| A | 0 | 8 | 43887 | 185.78 | 940 | 916 | 231.3 |
| B | 10 | 247 | 537198 | 2733.66 | 911 | 875 | 196.2 |
| B | 5 | 185 | 326161 | 1658.0 | 911 | 875 | 196.2 |
| B | 2 | 249 | 179056 | 908.2 | 911 | 875 | 196.2 |
| C | 12 | 252 | 1611458 | 6613.42 | 901 | 892 | 243.5 |
| C | 15 | 147 | 643823 | 2640.05 | 901 | 892 | 243.5 |
| C | 14 | 254 | 202247 | 826.82 | 901 | 892 | 243.5 |
| D | 6 | 239 | 488712 | 1921.13 | 900 | 859 | 253.9 |
| D | 10 | 181 | 483204 | 1899.44 | 900 | 859 | 253.9 |
| D | 15 | 94 | 369620 | 1452.15 | 900 | 859 | 253.9 |

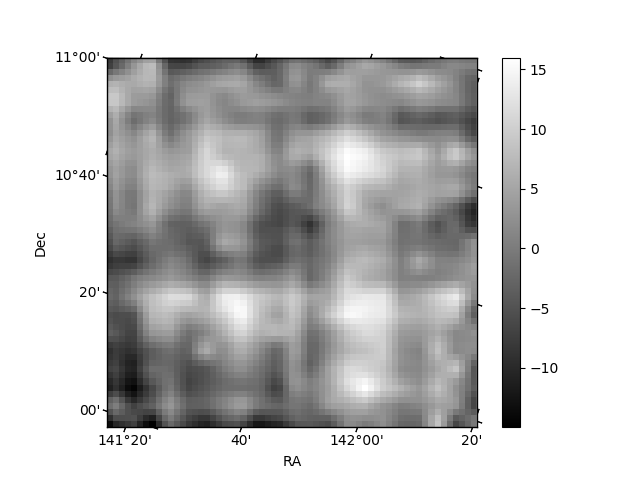

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

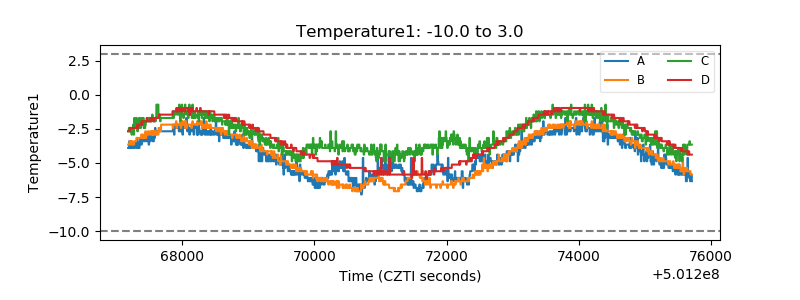

| Temperature 1 |  |

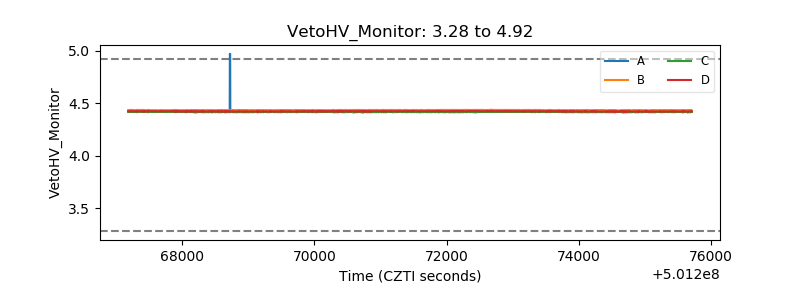

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

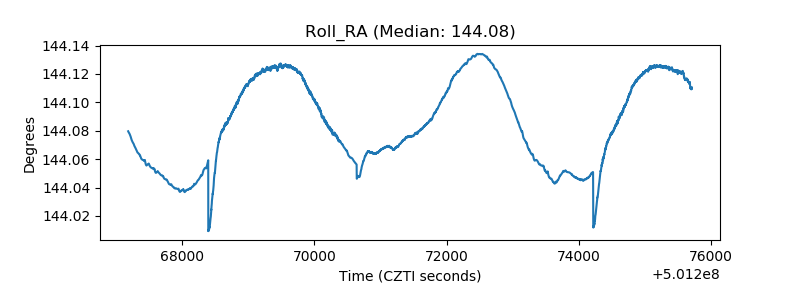

| _Roll_RA |  |
| Veto Counter |  |
