| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_039T06_9000006526_54895cztM0_level2.fits | modeM0/AS1A14_039T06_9000006526_54895cztM0_level2_quad_clean.evt |
| Size (bytes) | 424,149,120 | 96,621,120 |
| Size | 404.5 MB | 92.1 MB |
| Events in quadrant A | 4,425,955 | 618,592 |
| Events in quadrant B | 3,120,198 | 686,935 |
| Events in quadrant C | 3,498,785 | 608,102 |
| Events in quadrant D | 4,147,056 | 556,306 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17646 | 5 |
| B | 0 | 13818 | 2 |
| C | 0 | 14847 | 4 |
| D | 0 | 16857 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6538 | 344 | 5.261548% |
| B | 6540 | 120 | 1.834862% |
| C | 6539 | 110 | 1.682214% |
| D | 6539 | 288 | 4.404343% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7585 | 6540 | 226 | 226 | 2.98% | 3.46% |  |
| B | 7586 | 6542 | 18 | 18 | 0.24% | 0.28% |  |
| C | 7586 | 6541 | 28 | 28 | 0.37% | 0.43% |  |
| D | 7586 | 6541 | 169 | 169 | 2.23% | 2.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 848861 | 4707.74 | 727 | 708 | 180.2 |
| A | 12 | 115 | 677231 | 3755.09 | 727 | 708 | 180.2 |
| A | 9 | 129 | 30161 | 163.48 | 727 | 708 | 180.2 |
| B | 5 | 185 | 119337 | 770.82 | 716 | 689 | 153.9 |
| B | 7 | 0 | 46751 | 299.25 | 716 | 689 | 153.9 |
| B | 10 | 247 | 39822 | 254.24 | 716 | 689 | 153.9 |
| C | 6 | 223 | 285375 | 1465.69 | 709 | 703 | 194.2 |
| C | 4 | 5 | 143426 | 734.84 | 709 | 703 | 194.2 |
| C | 1 | 16 | 100825 | 515.5 | 709 | 703 | 194.2 |
| D | 15 | 94 | 326606 | 1649.74 | 700 | 669 | 197.6 |
| D | 15 | 91 | 184368 | 929.8 | 700 | 669 | 197.6 |
| D | 6 | 46 | 126001 | 634.37 | 700 | 669 | 197.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

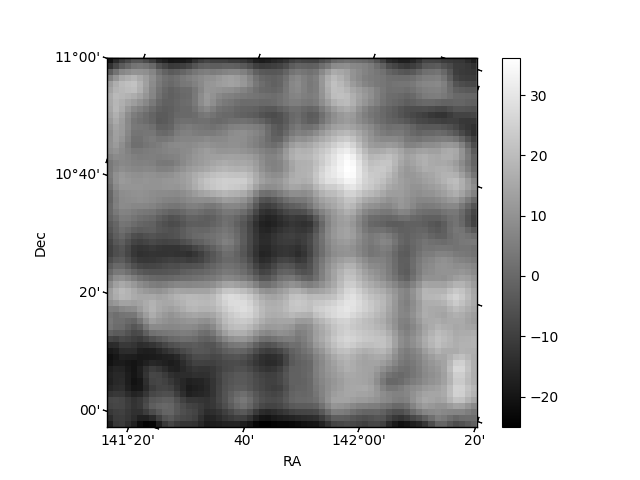

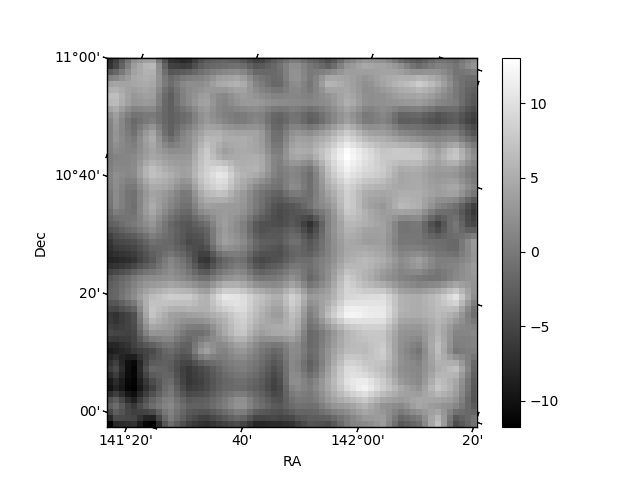

| Plot type | Count rate plots | Images |
|---|---|---|

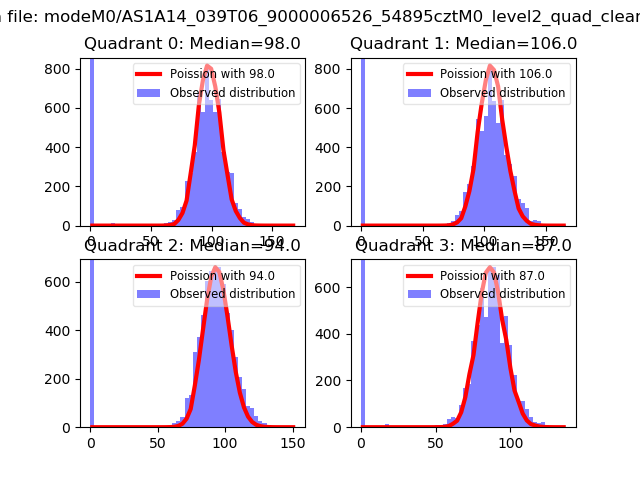

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

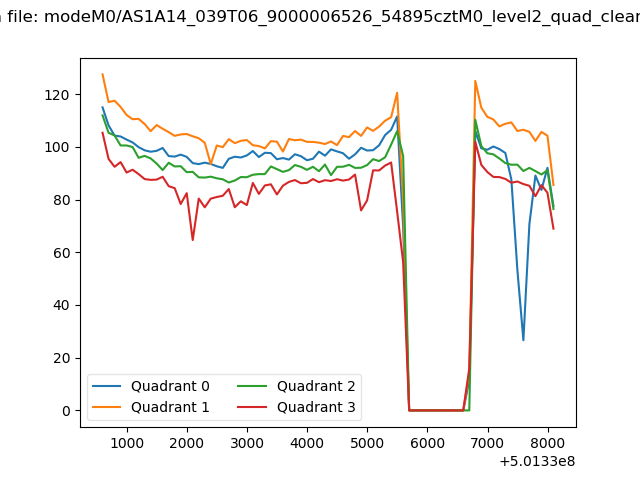

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

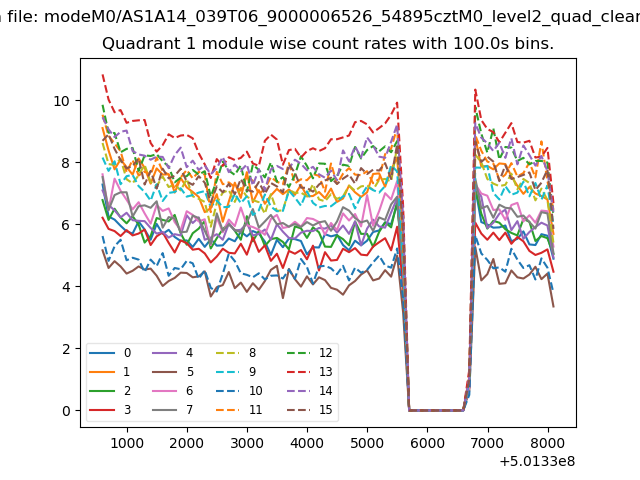

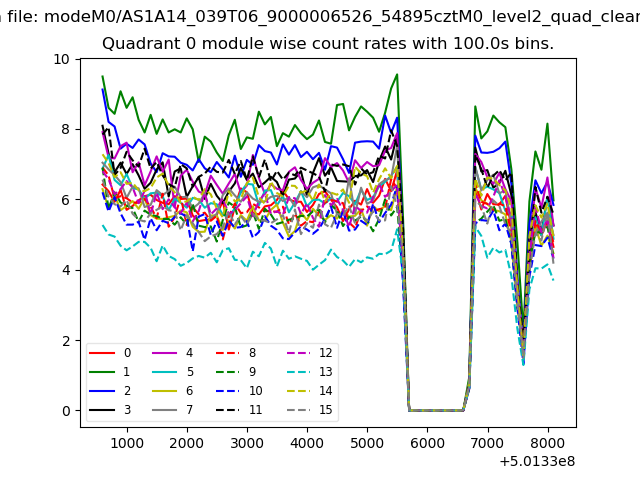

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

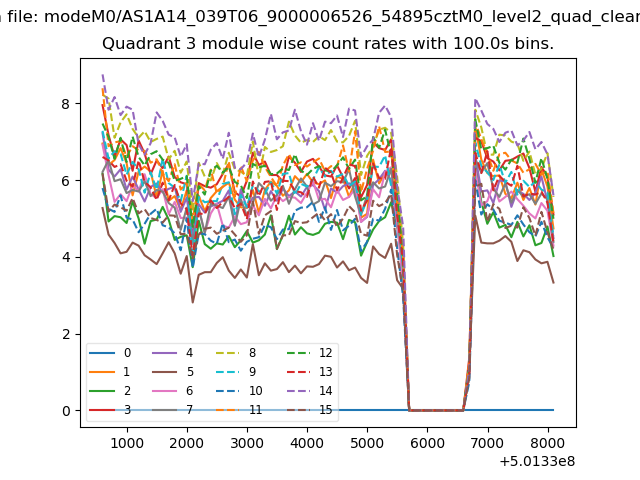

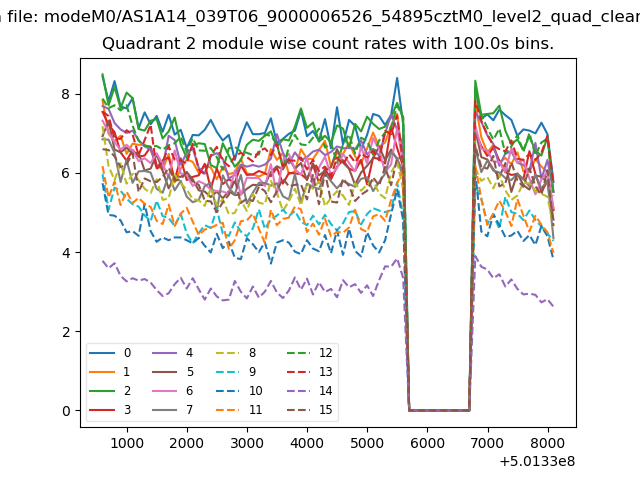

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

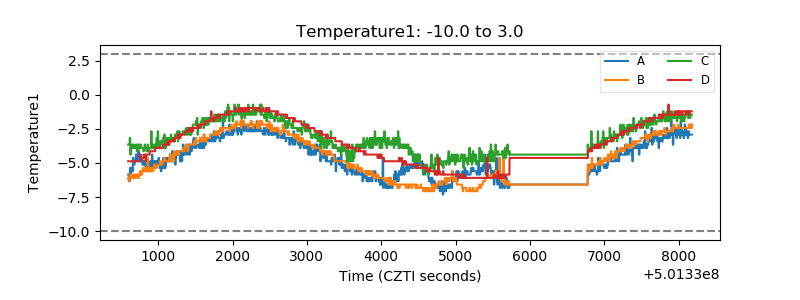

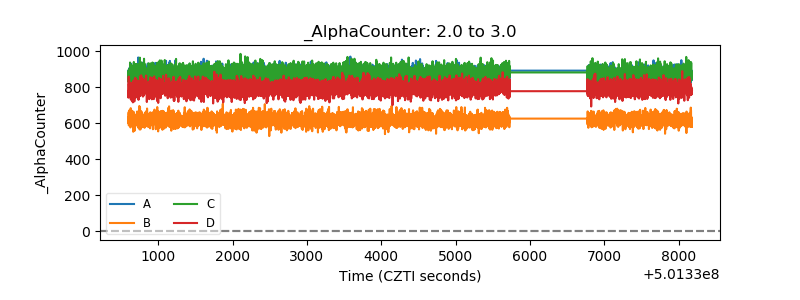

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

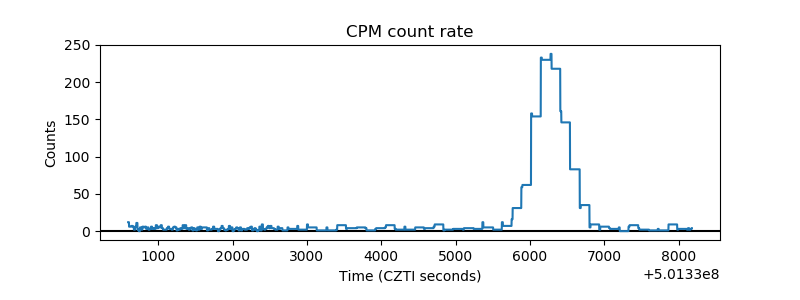

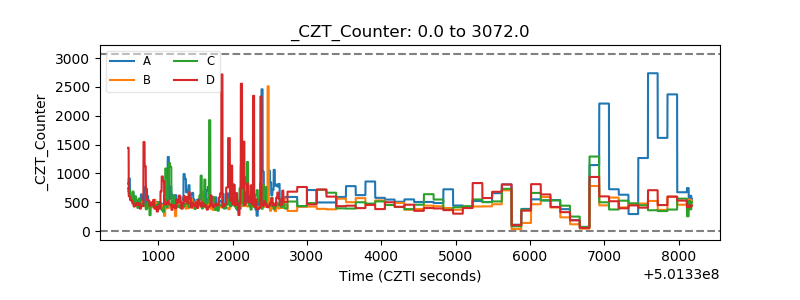

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

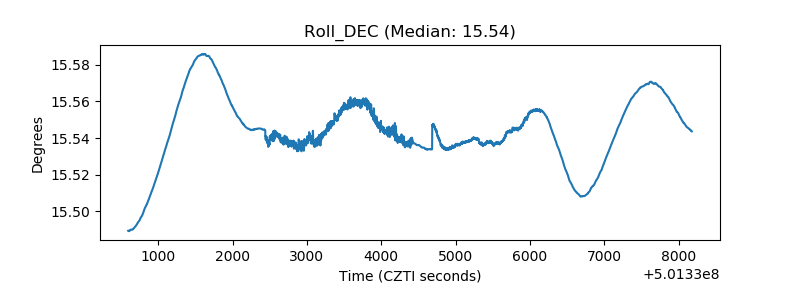

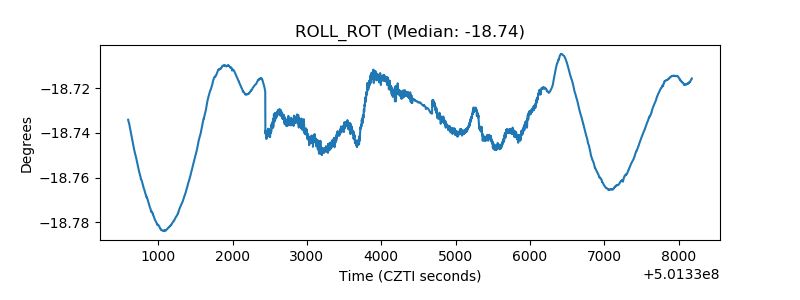

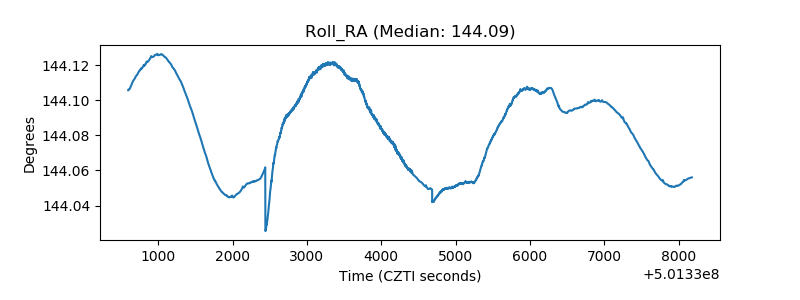

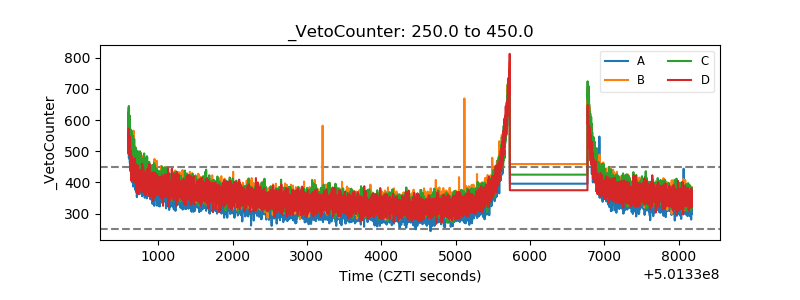

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
