| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_014T01_9000006528_54927cztM0_level2.fits | modeM0/AS1A14_014T01_9000006528_54927cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,996,655,040 | 320,581,440 |
| Size | 1.9 GB | 305.7 MB |
| Events in quadrant A | 12,792,375 | 2,190,234 |
| Events in quadrant B | 11,013,031 | 2,379,541 |
| Events in quadrant C | 20,072,233 | 2,001,650 |
| Events in quadrant D | 28,197,933 | 1,500,183 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 54717 | 4 |
| B | 0 | 50760 | 4 |
| C | 0 | 76149 | 4 |
| D | 0 | 100079 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 484 | 0 |
| B | 0 | 484 | 0 |
| C | 0 | 484 | 0 |
| D | 0 | 484 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 23741 | 845 | 3.559244% |
| B | 23742 | 579 | 2.438716% |
| C | 23741 | 2204 | 9.283518% |
| D | 23741 | 5413 | 22.800219% |

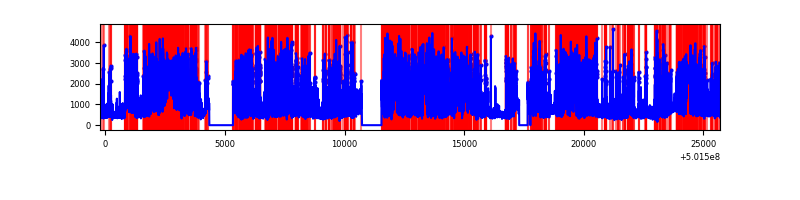

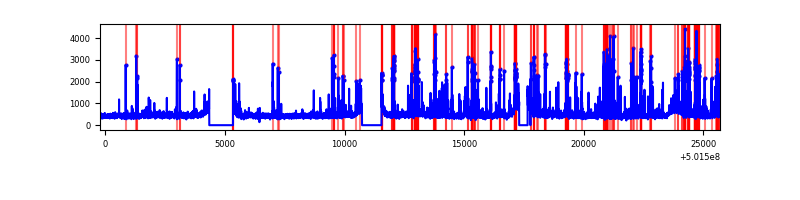

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25927 | 23743 | 301 | 301 | 1.16% | 1.27% |  |
| B | 25928 | 23744 | 52 | 52 | 0.20% | 0.22% |  |
| C | 25927 | 23743 | 1571 | 1571 | 6.06% | 6.62% |  |
| D | 25927 | 23743 | 4643 | 4643 | 17.91% | 19.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 45 | 1442129 | 2254.9 | 2600 | 2527 | 638.4 |
| A | 3 | 14 | 463788 | 722.49 | 2600 | 2527 | 638.4 |
| A | 0 | 8 | 305497 | 474.55 | 2600 | 2527 | 638.4 |
| B | 10 | 247 | 340170 | 615.73 | 2572 | 2476 | 548.4 |
| B | 7 | 252 | 135333 | 242.24 | 2572 | 2476 | 548.4 |
| B | 5 | 32 | 83843 | 148.36 | 2572 | 2476 | 548.4 |
| C | 4 | 5 | 4381250 | 6490.0 | 2472 | 2453 | 674.7 |
| C | 12 | 252 | 2562370 | 3794.16 | 2472 | 2453 | 674.7 |
| C | 6 | 223 | 1488212 | 2202.11 | 2472 | 2453 | 674.7 |
| D | 15 | 94 | 5407097 | 8323.54 | 2302 | 2200 | 649.4 |
| D | 11 | 129 | 4694447 | 7226.06 | 2302 | 2200 | 649.4 |
| D | 6 | 239 | 2361884 | 3633.91 | 2302 | 2200 | 649.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

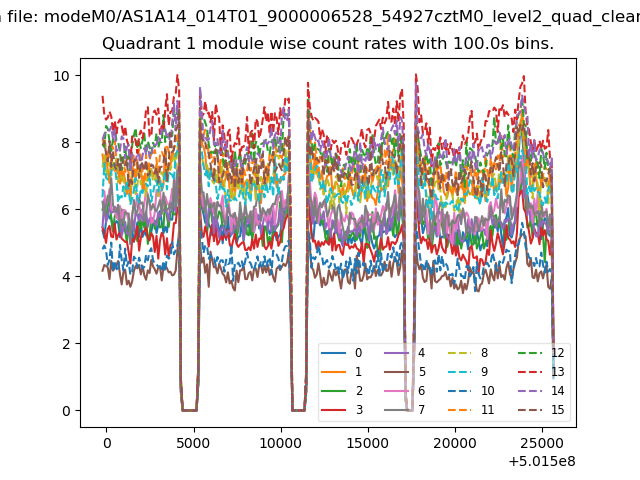

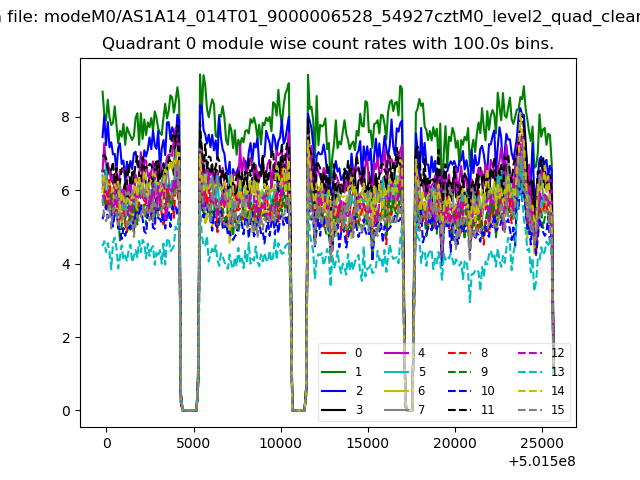

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

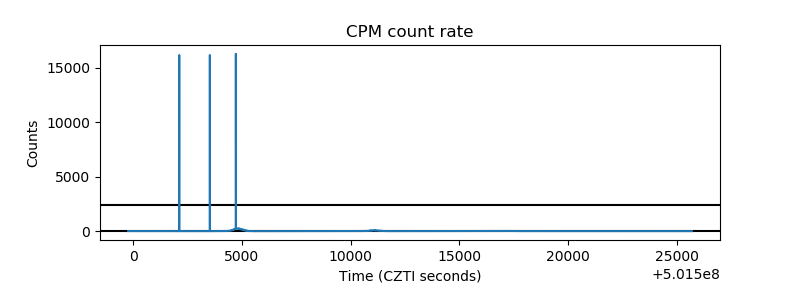

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

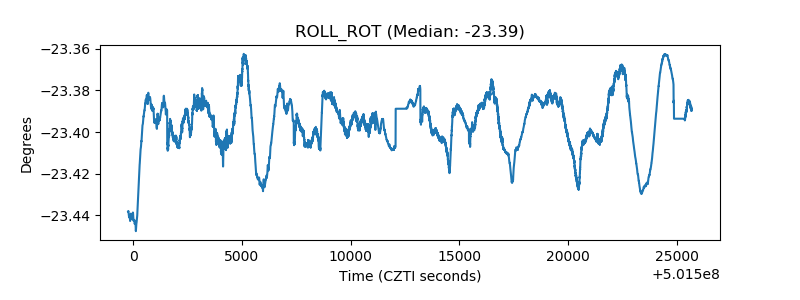

| _ROLL_ROT |  |

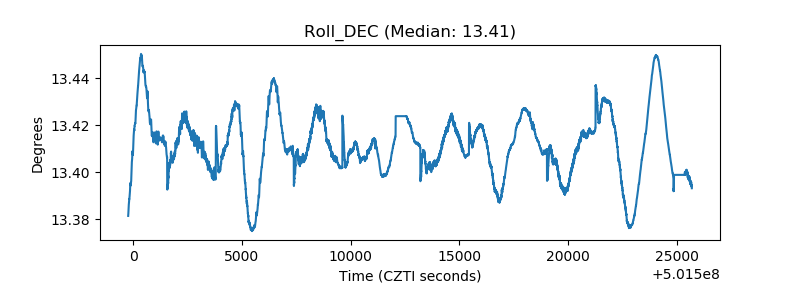

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
