| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_014T01_9000006528_54941cztM0_level2.fits | modeM0/AS1A14_014T01_9000006528_54941cztM0_level2_quad_clean.evt |
| Size (bytes) | 522,529,920 | 102,758,400 |
| Size | 498.3 MB | 98.0 MB |
| Events in quadrant A | 3,813,440 | 679,988 |
| Events in quadrant B | 3,656,307 | 724,071 |
| Events in quadrant C | 4,541,338 | 639,962 |
| Events in quadrant D | 6,756,100 | 552,391 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16823 | 0 |
| B | 0 | 16170 | 0 |
| C | 0 | 18915 | 0 |
| D | 0 | 25222 | 4 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7399 | 278 | 3.757264% |
| B | 7400 | 308 | 4.162162% |
| C | 7400 | 427 | 5.770270% |
| D | 7399 | 975 | 13.177456% |

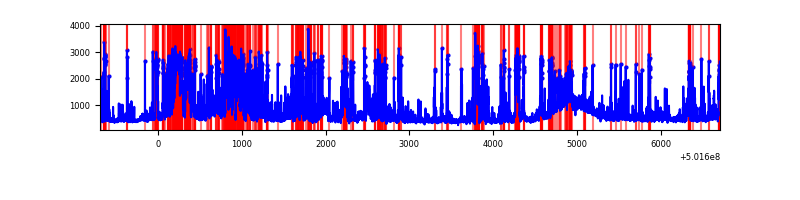

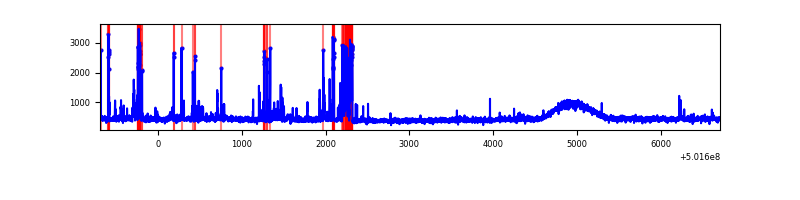

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7399 | 7399 | 99 | 99 | 1.34% | 1.34% |  |
| B | 7400 | 7400 | 22 | 22 | 0.30% | 0.30% |  |
| C | 7400 | 7400 | 224 | 224 | 3.03% | 3.03% |  |
| D | 7398 | 7398 | 783 | 783 | 10.58% | 10.58% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 45 | 456982 | 2223.62 | 836 | 812 | 205.1 |
| A | 3 | 14 | 34081 | 162.17 | 836 | 812 | 205.1 |
| A | 4 | 3 | 27757 | 131.34 | 836 | 812 | 205.1 |
| B | 7 | 0 | 134553 | 750.21 | 820 | 789 | 178.3 |
| B | 10 | 247 | 79680 | 442.45 | 820 | 789 | 178.3 |
| B | 0 | 182 | 63885 | 353.87 | 820 | 789 | 178.3 |
| C | 12 | 252 | 492450 | 2217.81 | 811 | 802 | 221.7 |
| C | 14 | 254 | 353178 | 1589.56 | 811 | 802 | 221.7 |
| C | 15 | 147 | 151368 | 679.2 | 811 | 802 | 221.7 |
| D | 11 | 129 | 753505 | 3443.46 | 777 | 742 | 218.6 |
| D | 10 | 181 | 564022 | 2576.68 | 777 | 742 | 218.6 |
| D | 2 | 249 | 517889 | 2365.65 | 777 | 742 | 218.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

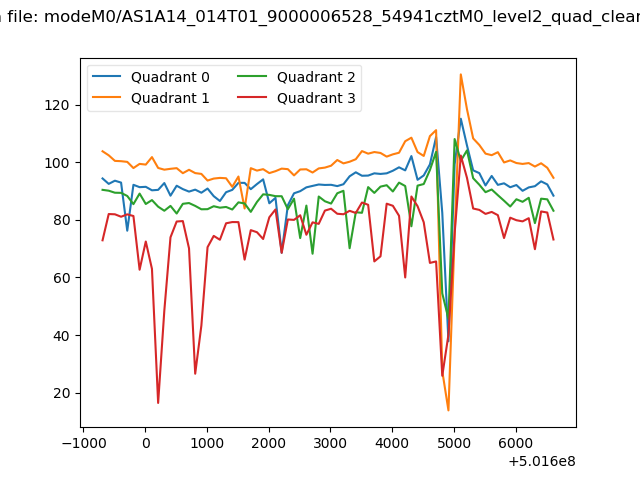

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

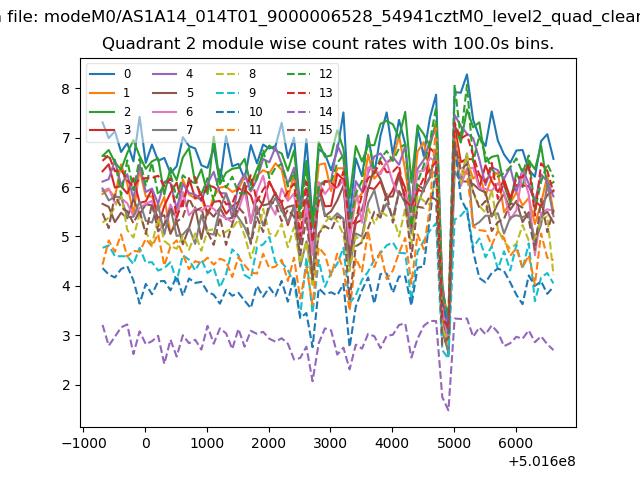

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

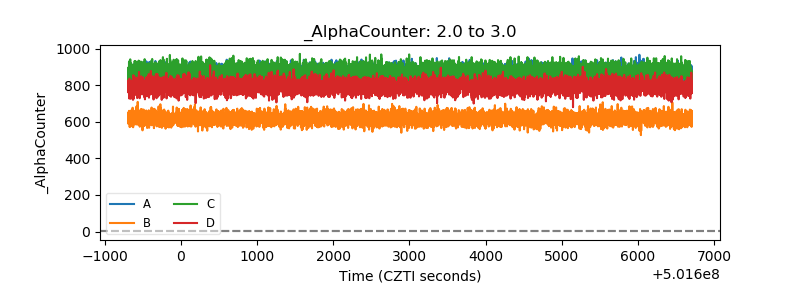

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

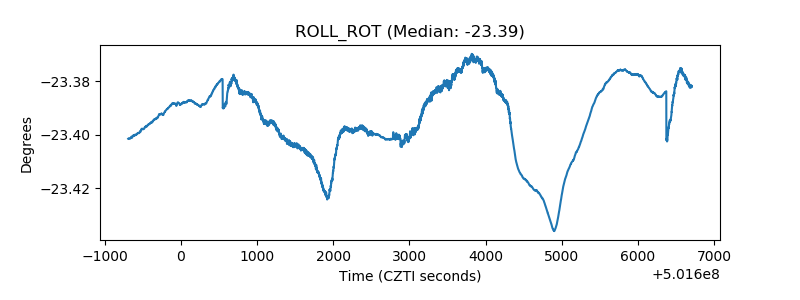

| _ROLL_ROT |  |
| _Roll_DEC |  |

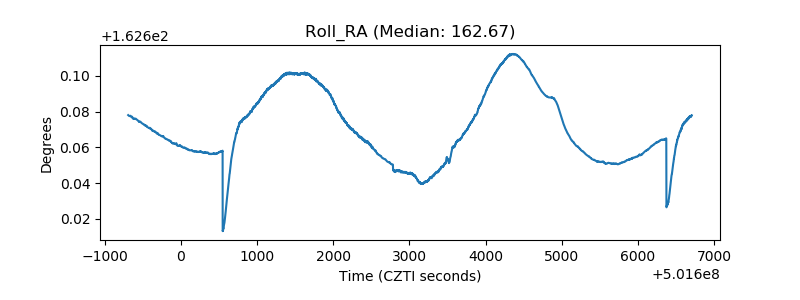

| _Roll_RA |  |

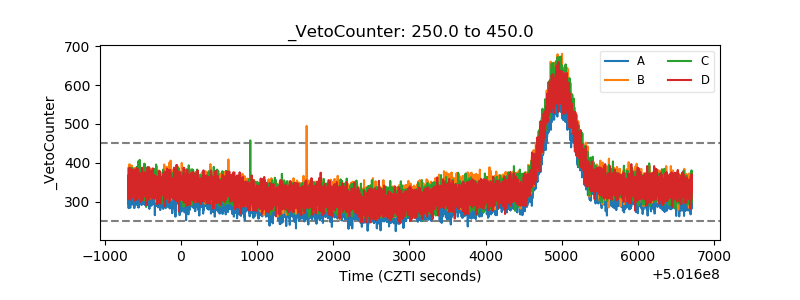

| Veto Counter |  |
