| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_014T01_9000006528_55005cztM0_level2.fits | modeM0/AS1A14_014T01_9000006528_55005cztM0_level2_quad_clean.evt |
| Size (bytes) | 848,378,880 | 82,716,480 |
| Size | 809.1 MB | 78.9 MB |
| Events in quadrant A | 3,737,200 | 661,508 |
| Events in quadrant B | 3,662,377 | 718,292 |
| Events in quadrant C | 5,063,775 | 615,615 |
| Events in quadrant D | 18,380,382 | 6,823 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17394 | 1146 |
| B | 0 | 17191 | 1097 |
| C | 0 | 21053 | 1209 |
| D | 0 | 64876 | 5568 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 155 | 9 |
| B | 0 | 156 | 10 |
| C | 0 | 155 | 7 |
| D | 0 | 156 | 8 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6 | 0 |
| B | 0 | 6 | 0 |
| C | 0 | 6 | 0 |
| D | 0 | 6 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7251 | 102 | 1.406703% |
| B | 7259 | 91 | 1.253616% |
| C | 7239 | 278 | 3.840309% |
| D | 7094 | 7030 | 99.097829% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9800 | 7341 | 90 | 90 | 0.92% | 1.23% |  |
| B | 9768 | 7338 | 49 | 49 | 0.50% | 0.67% |  |
| C | 9828 | 7333 | 261 | 261 | 2.66% | 3.56% |  |
| D | 9758 | 7127 | 6706 | 6706 | 68.72% | 94.09% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 32 | 307595 | 1637.56 | 753 | 732 | 187.4 |
| A | 3 | 14 | 222597 | 1183.97 | 753 | 732 | 187.4 |
| A | 0 | 8 | 215223 | 1144.62 | 753 | 732 | 187.4 |
| B | 2 | 249 | 269639 | 1657.65 | 747 | 719 | 162.2 |
| B | 5 | 185 | 243896 | 1498.97 | 747 | 719 | 162.2 |
| B | 5 | 236 | 91691 | 560.76 | 747 | 719 | 162.2 |
| C | 9 | 38 | 1321490 | 6699.82 | 716 | 711 | 197.1 |
| C | 13 | 3 | 342306 | 1732.79 | 716 | 711 | 197.1 |
| C | 1 | 16 | 276898 | 1400.99 | 716 | 711 | 197.1 |
| D | 15 | 94 | 16887158 | 267480.46 | 214 | 203 | 63.1 |
| D | 7 | 96 | 196552 | 3110.06 | 214 | 203 | 63.1 |
| D | 3 | 12 | 101068 | 1597.65 | 214 | 203 | 63.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

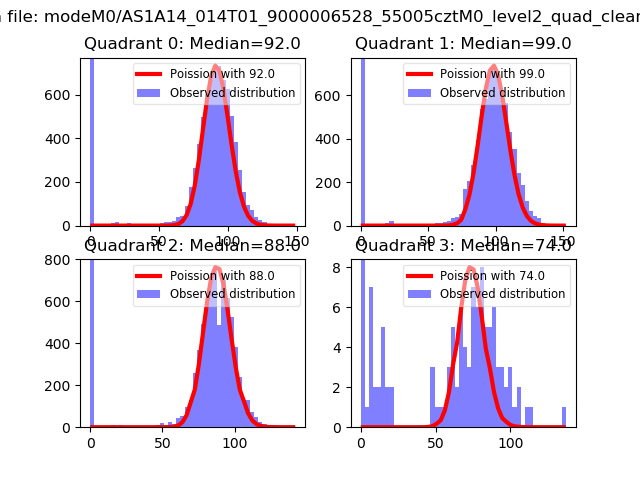

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

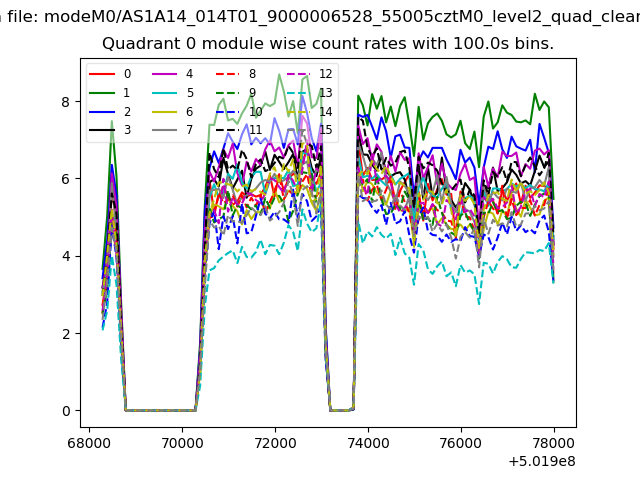

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

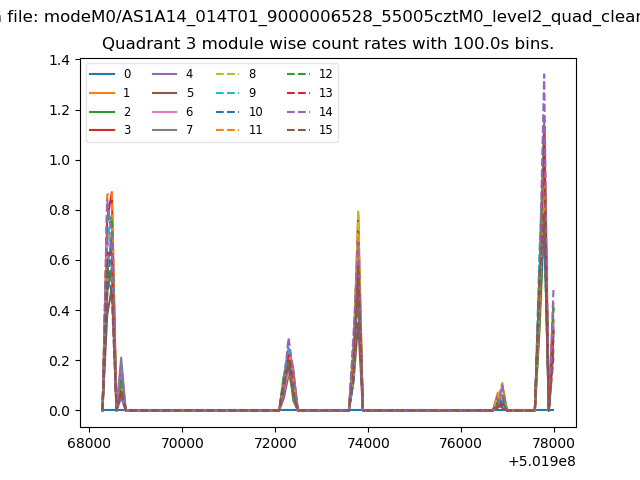

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

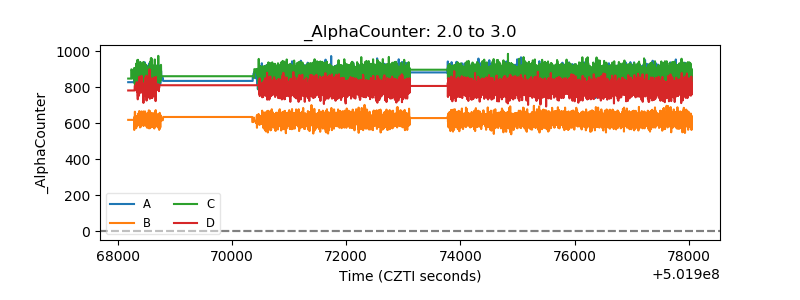

| Alpha Counter |  |

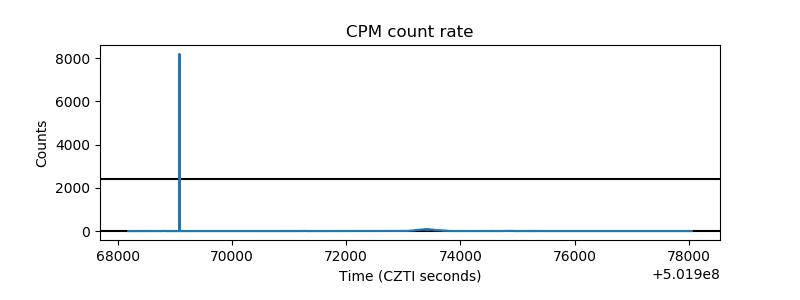

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

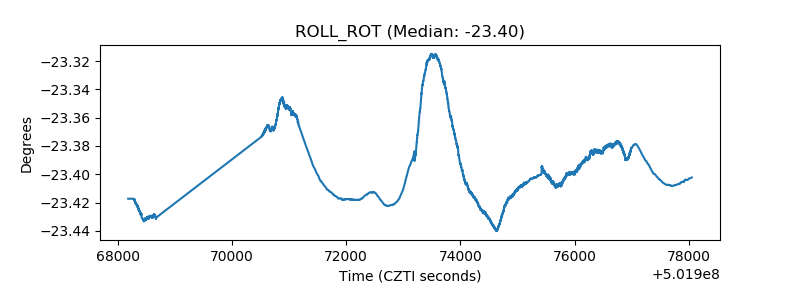

| _ROLL_ROT |  |

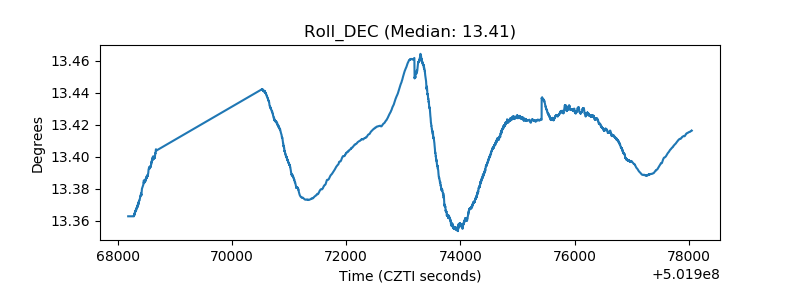

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
