| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_025T01_9000006530_55058cztM0_level2.fits | modeM0/AS1A14_025T01_9000006530_55058cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,561,544,640 | 333,216,000 |
| Size | 1.5 GB | 317.8 MB |
| Events in quadrant A | 10,816,262 | 2,206,865 |
| Events in quadrant B | 15,863,090 | 2,258,216 |
| Events in quadrant C | 12,431,803 | 2,092,656 |
| Events in quadrant D | 16,879,060 | 1,919,205 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49628 | 5 |
| B | 0 | 64167 | 3 |
| C | 0 | 54142 | 6 |
| D | 0 | 66342 | 10 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 476 | 0 |
| B | 0 | 476 | 0 |
| C | 0 | 476 | 0 |
| D | 0 | 476 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 23420 | 540 | 2.305722% |
| B | 23421 | 2109 | 9.004739% |
| C | 23420 | 714 | 3.048676% |
| D | 23420 | 1309 | 5.589240% |

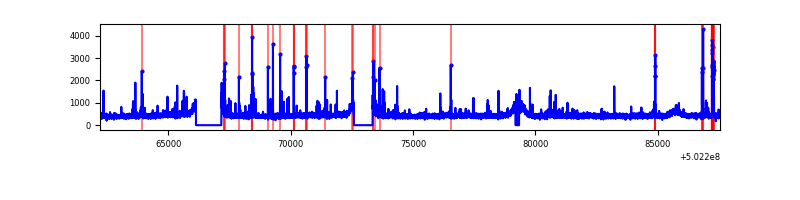

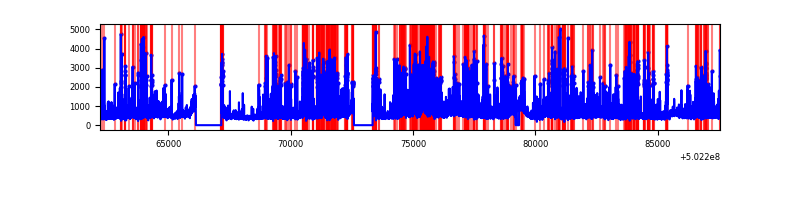

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25331 | 23424 | 65 | 65 | 0.26% | 0.28% |  |
| B | 25331 | 23425 | 1100 | 1100 | 4.34% | 4.70% |  |
| C | 25331 | 23425 | 343 | 343 | 1.35% | 1.46% |  |
| D | 25332 | 23425 | 865 | 865 | 3.41% | 3.69% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 210271 | 326.36 | 2610 | 2549 | 636.5 |
| A | 3 | 14 | 136195 | 209.98 | 2610 | 2549 | 636.5 |
| A | 6 | 161 | 106947 | 164.02 | 2610 | 2549 | 636.5 |
| B | 4 | 81 | 3293574 | 6093.06 | 2509 | 2412 | 540.1 |
| B | 5 | 185 | 1943377 | 3593.39 | 2509 | 2412 | 540.1 |
| B | 2 | 249 | 388336 | 714.48 | 2509 | 2412 | 540.1 |
| C | 12 | 250 | 732212 | 1064.35 | 2525 | 2504 | 685.6 |
| C | 9 | 38 | 517718 | 751.49 | 2525 | 2504 | 685.6 |
| C | 13 | 3 | 499579 | 725.03 | 2525 | 2504 | 685.6 |
| D | 11 | 129 | 1685996 | 2368.31 | 2496 | 2382 | 710.9 |
| D | 6 | 239 | 841140 | 1179.87 | 2496 | 2382 | 710.9 |
| D | 15 | 94 | 773393 | 1084.57 | 2496 | 2382 | 710.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

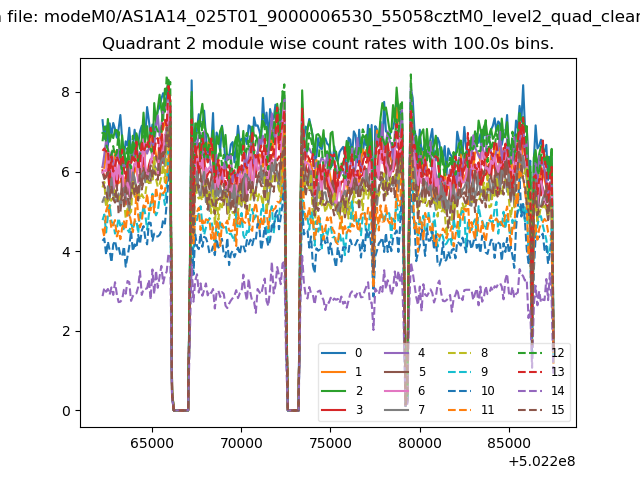

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

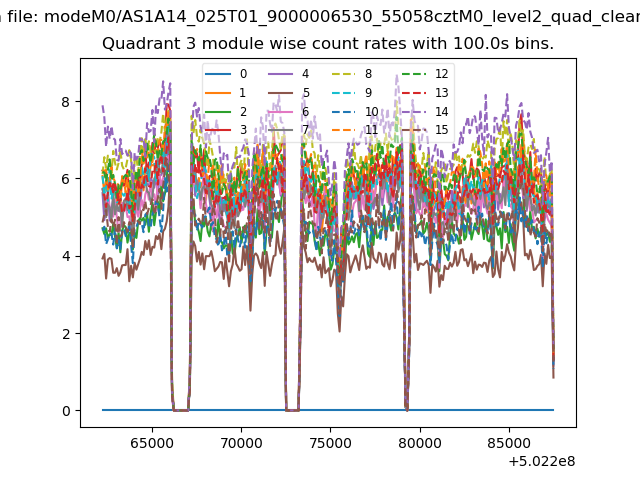

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

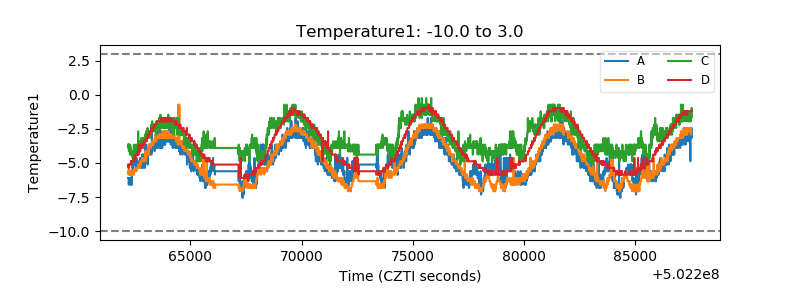

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

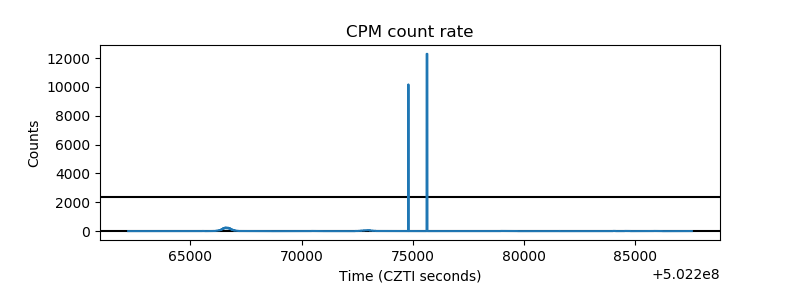

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

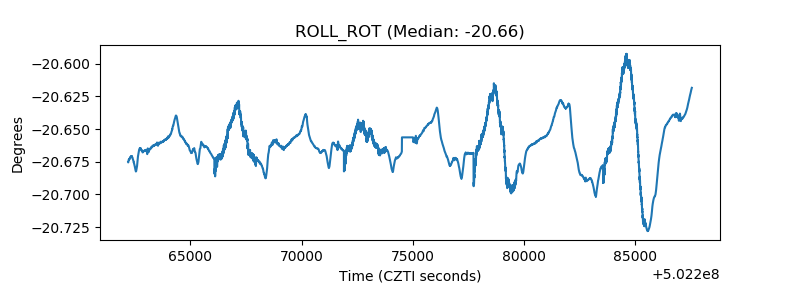

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
