| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_025T01_9000006530_55099cztM0_level2.fits | modeM0/AS1A14_025T01_9000006530_55099cztM0_level2_quad_clean.evt |
| Size (bytes) | 461,122,560 | 102,378,240 |
| Size | 439.8 MB | 97.6 MB |
| Events in quadrant A | 3,168,362 | 684,000 |
| Events in quadrant B | 3,110,127 | 734,087 |
| Events in quadrant C | 3,828,645 | 657,518 |
| Events in quadrant D | 6,420,142 | 539,239 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14825 | 2 |
| B | 0 | 14578 | 2 |
| C | 0 | 16180 | 2 |
| D | 0 | 24249 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6963 | 146 | 2.096797% |
| B | 6963 | 141 | 2.024989% |
| C | 6963 | 172 | 2.470200% |
| D | 6963 | 1074 | 15.424386% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

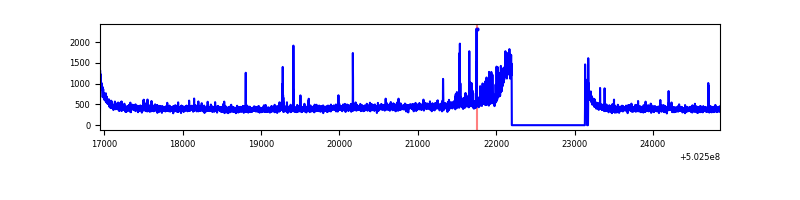

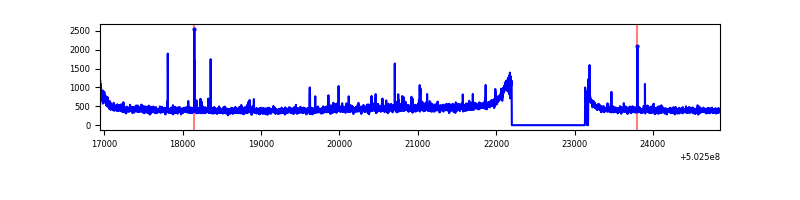

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7913 | 6965 | 1 | 1 | 0.01% | 0.01% |  |
| B | 7913 | 6965 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7913 | 6965 | 73 | 73 | 0.92% | 1.05% |  |
| D | 7913 | 6964 | 859 | 859 | 10.86% | 12.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 237 | 62208 | 317.42 | 777 | 757 | 193.6 |
| A | 4 | 3 | 50696 | 257.96 | 777 | 757 | 193.6 |
| A | 7 | 190 | 13776 | 67.25 | 777 | 757 | 193.6 |
| B | 4 | 21 | 52900 | 314.21 | 762 | 734 | 166.0 |
| B | 12 | 111 | 19775 | 114.69 | 762 | 734 | 166.0 |
| B | 5 | 185 | 19155 | 110.96 | 762 | 734 | 166.0 |
| C | 13 | 3 | 265624 | 1284.45 | 746 | 742 | 206.2 |
| C | 1 | 16 | 168480 | 813.39 | 746 | 742 | 206.2 |
| C | 6 | 223 | 138616 | 668.57 | 746 | 742 | 206.2 |
| D | 15 | 94 | 1480561 | 7309.71 | 707 | 676 | 202.5 |
| D | 6 | 239 | 1154274 | 5698.05 | 707 | 676 | 202.5 |
| D | 2 | 249 | 613362 | 3026.29 | 707 | 676 | 202.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

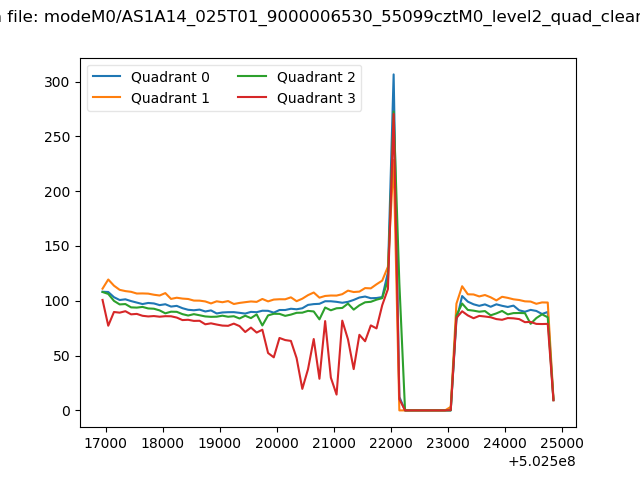

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

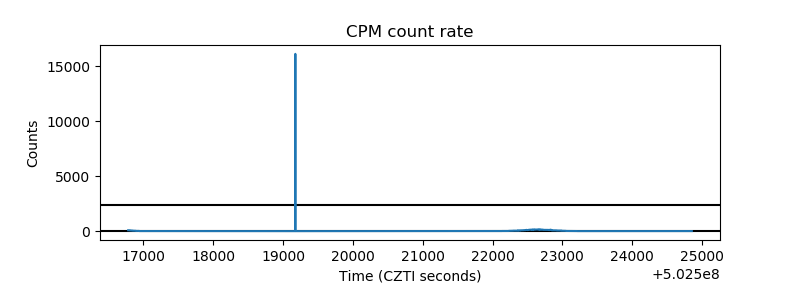

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

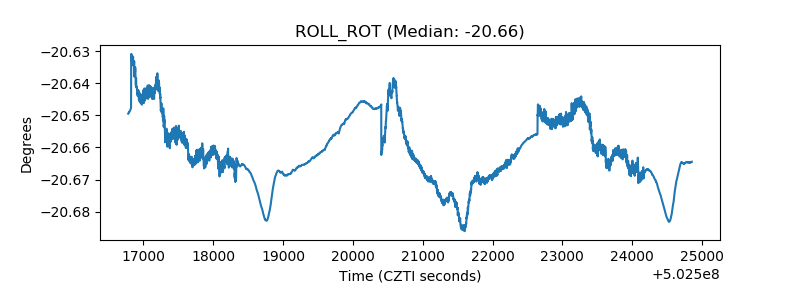

| _ROLL_ROT |  |

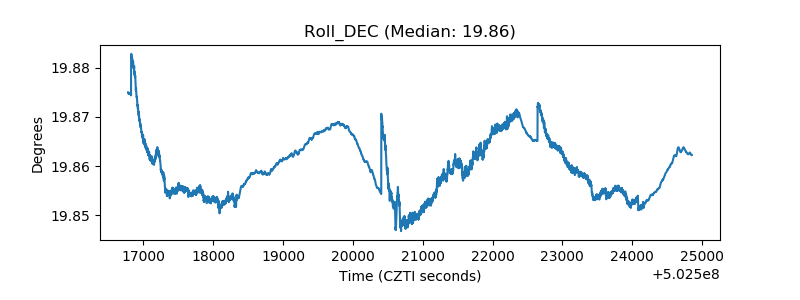

| _Roll_DEC |  |
| _Roll_RA |  |

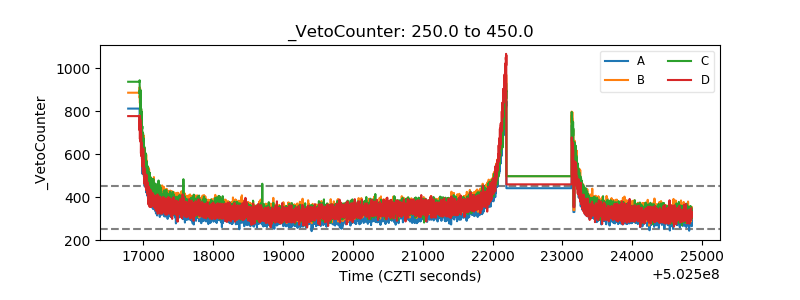

| Veto Counter |  |
