| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_025T01_9000006530_55106cztM0_level2.fits | modeM0/AS1A14_025T01_9000006530_55106cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,198,805,760 | 261,694,080 |
| Size | 1.1 GB | 249.6 MB |
| Events in quadrant A | 8,852,827 | 1,734,298 |
| Events in quadrant B | 9,260,092 | 1,810,786 |
| Events in quadrant C | 10,297,363 | 1,626,471 |
| Events in quadrant D | 14,506,326 | 1,453,297 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 40736 | 4 |
| B | 0 | 41537 | 10 |
| C | 0 | 44815 | 6 |
| D | 0 | 56634 | 10 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 382 | 0 |
| B | 0 | 382 | 0 |
| C | 0 | 382 | 0 |
| D | 0 | 382 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 18835 | 331 | 1.757367% |
| B | 18831 | 710 | 3.770379% |
| C | 18834 | 524 | 2.782202% |
| D | 18834 | 1676 | 8.898800% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

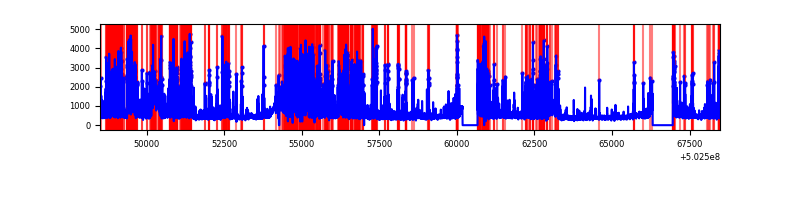

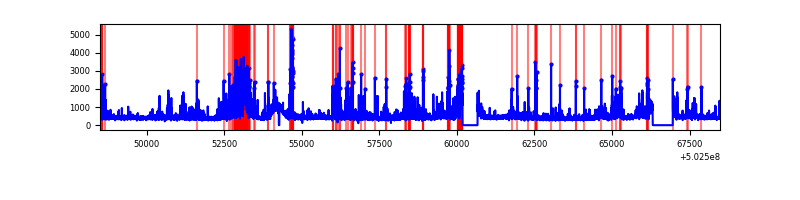

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19992 | 18840 | 120 | 120 | 0.60% | 0.64% |  |
| B | 19992 | 18838 | 380 | 380 | 1.90% | 2.02% |  |
| C | 19993 | 18841 | 303 | 303 | 1.52% | 1.61% |  |
| D | 19993 | 18840 | 1267 | 1267 | 6.34% | 6.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 590912 | 1182.29 | 2025 | 1970 | 498.1 |
| A | 7 | 190 | 143610 | 284.34 | 2025 | 1970 | 498.1 |
| A | 7 | 14 | 102236 | 201.28 | 2025 | 1970 | 498.1 |
| B | 5 | 172 | 1058181 | 2511.11 | 1961 | 1886 | 420.6 |
| B | 2 | 249 | 84402 | 196.16 | 1961 | 1886 | 420.6 |
| B | 10 | 247 | 77903 | 180.71 | 1961 | 1886 | 420.6 |
| C | 13 | 3 | 723373 | 1356.54 | 1964 | 1949 | 531.8 |
| C | 9 | 38 | 670555 | 1257.22 | 1964 | 1949 | 531.8 |
| C | 6 | 223 | 462156 | 865.36 | 1964 | 1949 | 531.8 |
| D | 6 | 239 | 3410319 | 6357.93 | 1904 | 1822 | 536.1 |
| D | 7 | 96 | 819930 | 1526.03 | 1904 | 1822 | 536.1 |
| D | 15 | 94 | 757764 | 1410.07 | 1904 | 1822 | 536.1 |

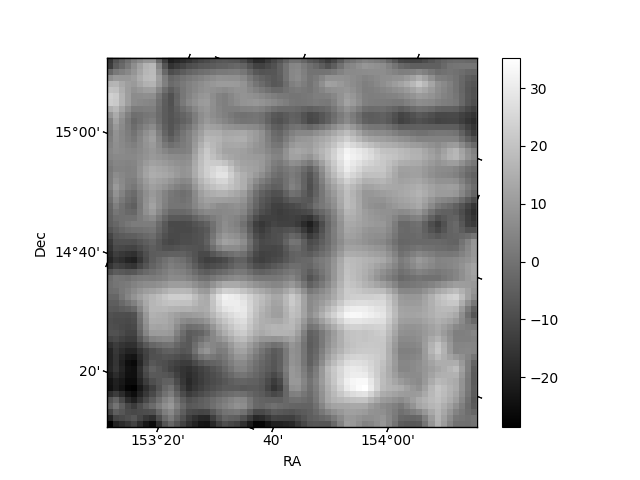

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

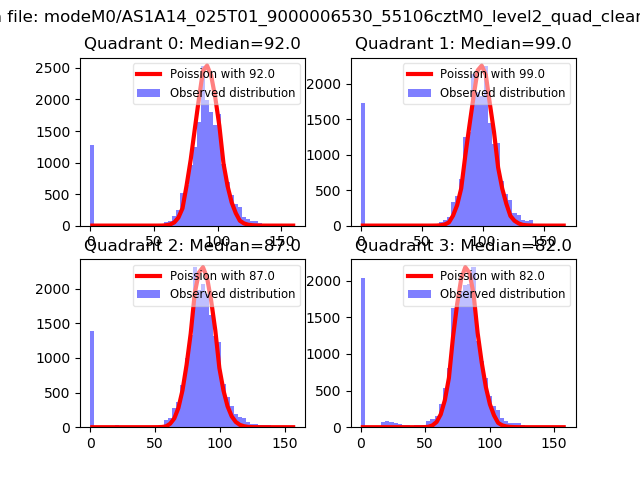

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

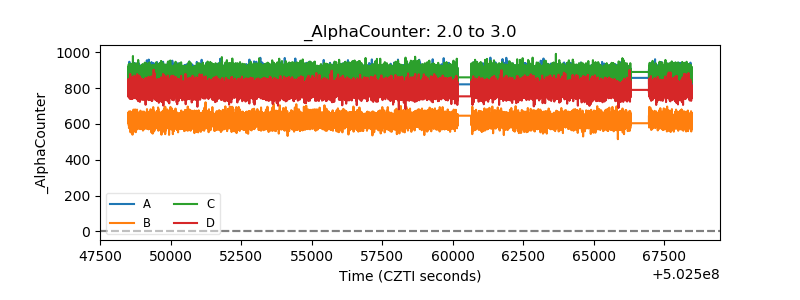

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

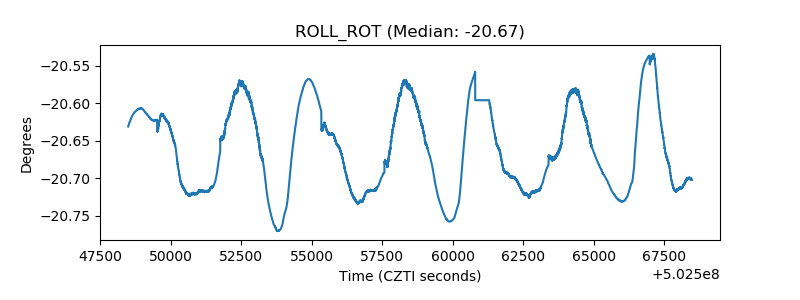

| _ROLL_ROT |  |

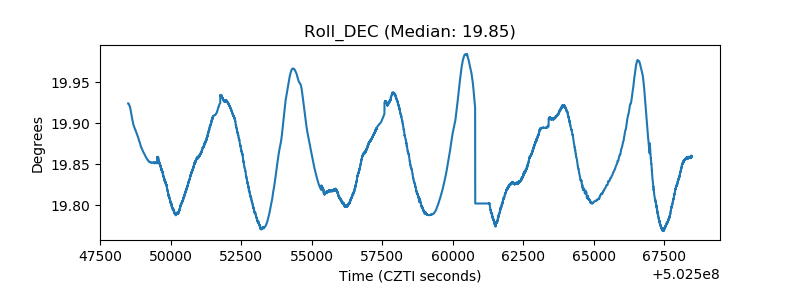

| _Roll_DEC |  |
| _Roll_RA |  |

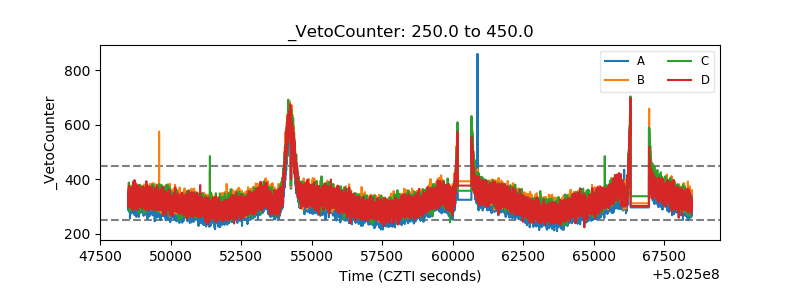

| Veto Counter |  |
