| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T16_9000006532_55115cztM0_level2.fits | modeM0/AS1A14_022T16_9000006532_55115cztM0_level2_quad_clean.evt |
| Size (bytes) | 423,216,000 | 106,548,480 |
| Size | 403.6 MB | 101.6 MB |
| Events in quadrant A | 3,404,273 | 688,436 |
| Events in quadrant B | 3,393,243 | 740,796 |
| Events in quadrant C | 3,937,990 | 658,134 |
| Events in quadrant D | 4,344,513 | 614,295 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 154 | 0 |
| B | 0 | 154 | 0 |
| C | 0 | 154 | 0 |
| D | 0 | 154 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15967 | 5 |
| B | 0 | 15802 | 3 |
| C | 0 | 17493 | 3 |
| D | 0 | 18428 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7526 | 269 | 3.574276% |
| B | 7527 | 254 | 3.374518% |
| C | 7527 | 260 | 3.454231% |
| D | 7527 | 273 | 3.626943% |

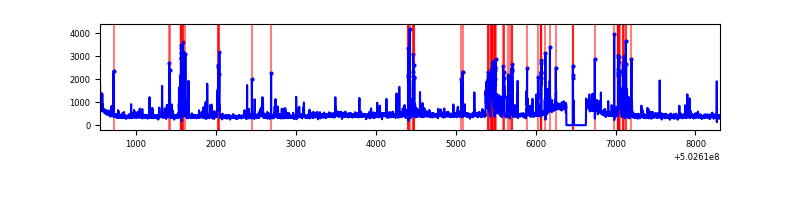

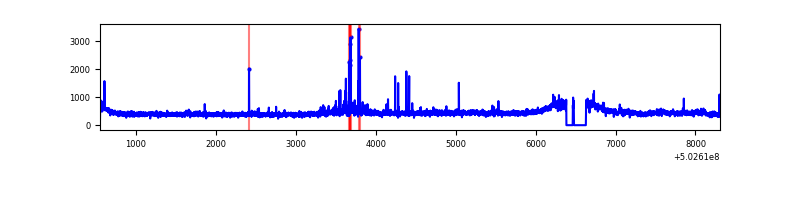

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7757 | 7529 | 25 | 25 | 0.32% | 0.33% |  |
| B | 7757 | 7529 | 8 | 8 | 0.10% | 0.11% |  |
| C | 7757 | 7529 | 91 | 91 | 1.17% | 1.21% |  |
| D | 7757 | 7529 | 100 | 100 | 1.29% | 1.33% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 152825 | 756.95 | 815 | 793 | 200.8 |
| A | 5 | 241 | 30724 | 149.02 | 815 | 793 | 200.8 |
| A | 3 | 14 | 28472 | 137.81 | 815 | 793 | 200.8 |
| B | 0 | 63 | 107239 | 616.75 | 800 | 770 | 172.6 |
| B | 10 | 247 | 55400 | 316.46 | 800 | 770 | 172.6 |
| B | 0 | 182 | 40677 | 231.17 | 800 | 770 | 172.6 |
| C | 6 | 223 | 414540 | 1940.36 | 783 | 776 | 213.2 |
| C | 10 | 22 | 184547 | 861.8 | 783 | 776 | 213.2 |
| C | 14 | 254 | 55664 | 257.4 | 783 | 776 | 213.2 |
| D | 3 | 144 | 427753 | 1932.11 | 787 | 753 | 221.0 |
| D | 15 | 94 | 389081 | 1757.12 | 787 | 753 | 221.0 |
| D | 2 | 252 | 105806 | 475.35 | 787 | 753 | 221.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

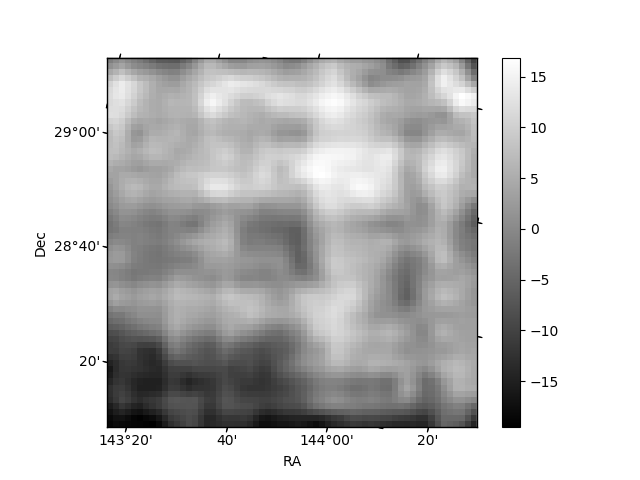

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

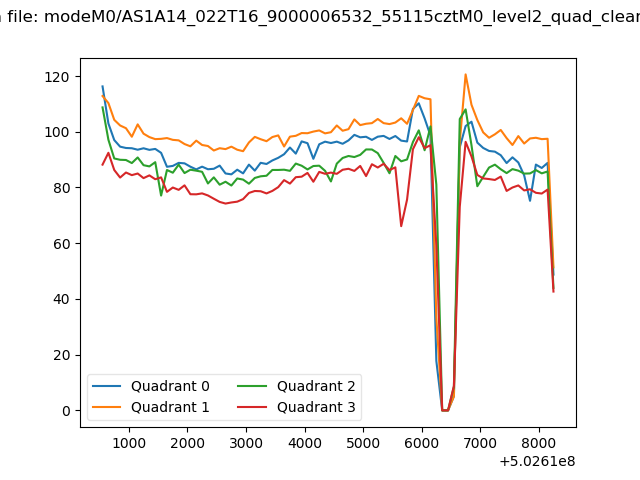

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

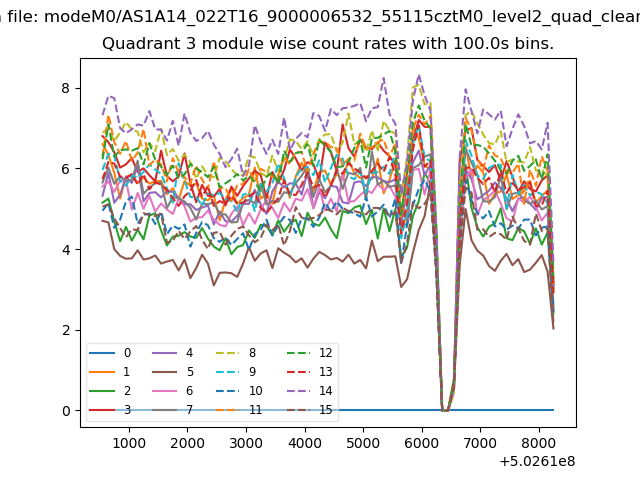

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

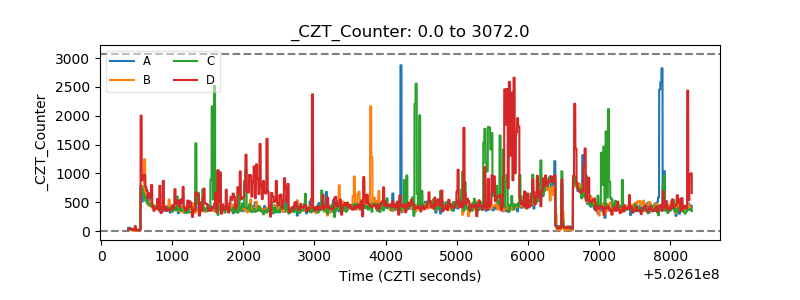

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

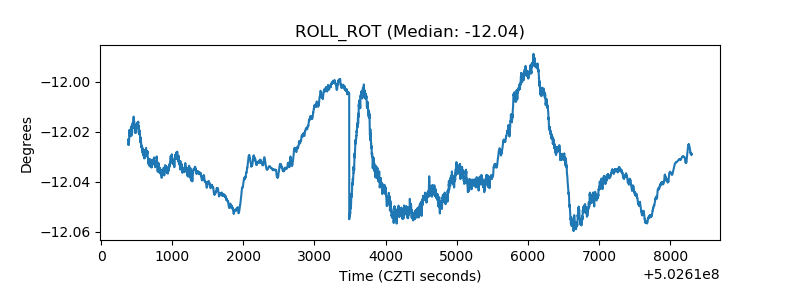

| _ROLL_ROT |  |

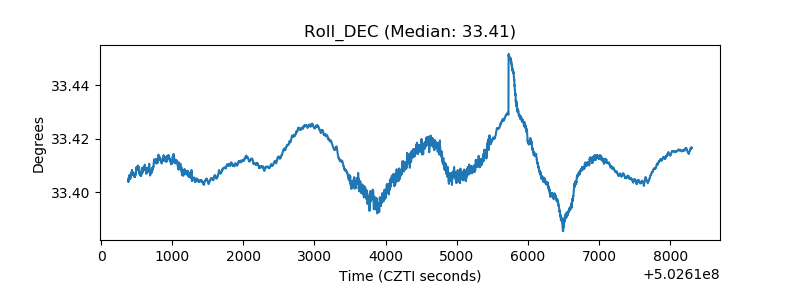

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
