| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T16_9000006532_55129cztM0_level2.fits | modeM0/AS1A14_022T16_9000006532_55129cztM0_level2_quad_clean.evt |
| Size (bytes) | 415,696,320 | 103,285,440 |
| Size | 396.4 MB | 98.5 MB |
| Events in quadrant A | 3,301,471 | 671,461 |
| Events in quadrant B | 3,285,427 | 722,069 |
| Events in quadrant C | 3,585,315 | 638,147 |
| Events in quadrant D | 4,651,730 | 591,463 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15536 | 2 |
| B | 0 | 15418 | 2 |
| C | 0 | 16205 | 2 |
| D | 0 | 19050 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7240 | 152 | 2.099448% |
| B | 7240 | 177 | 2.444751% |
| C | 7240 | 133 | 1.837017% |
| D | 7239 | 322 | 4.448128% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7840 | 7241 | 15 | 15 | 0.19% | 0.21% |  |
| B | 7840 | 7240 | 17 | 17 | 0.22% | 0.23% |  |
| C | 7840 | 7241 | 33 | 33 | 0.42% | 0.46% |  |
| D | 7838 | 7239 | 234 | 234 | 2.99% | 3.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 190 | 121822 | 633.91 | 776 | 754 | 191.0 |
| A | 0 | 8 | 77502 | 401.85 | 776 | 754 | 191.0 |
| A | 13 | 254 | 21685 | 109.59 | 776 | 754 | 191.0 |
| B | 2 | 249 | 126289 | 758.32 | 762 | 733 | 165.6 |
| B | 0 | 182 | 62952 | 375.79 | 762 | 733 | 165.6 |
| B | 5 | 185 | 25602 | 150.2 | 762 | 733 | 165.6 |
| C | 13 | 3 | 126778 | 619.31 | 746 | 740 | 203.5 |
| C | 6 | 223 | 113454 | 553.84 | 746 | 740 | 203.5 |
| C | 15 | 178 | 107249 | 523.35 | 746 | 740 | 203.5 |
| D | 11 | 129 | 886470 | 4237.78 | 737 | 705 | 209.0 |
| D | 15 | 94 | 405737 | 1937.8 | 737 | 705 | 209.0 |
| D | 2 | 252 | 184397 | 878.84 | 737 | 705 | 209.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

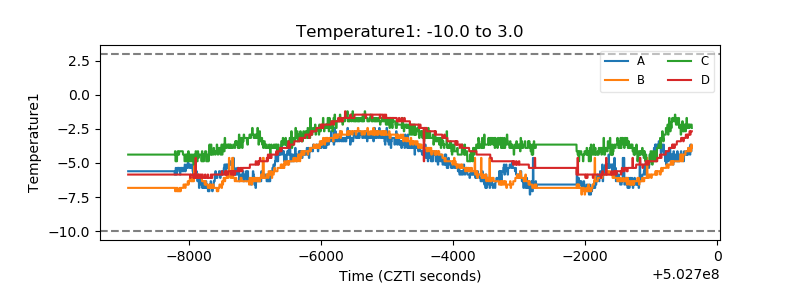

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

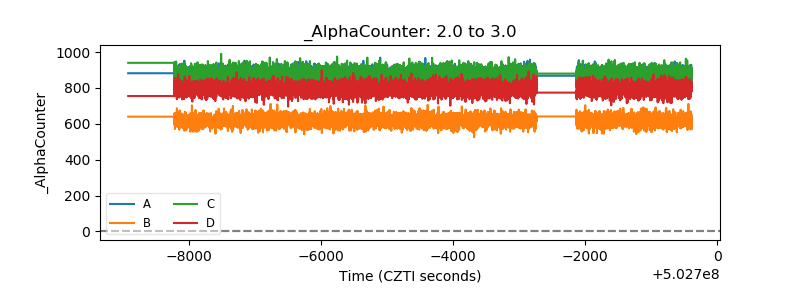

| Alpha Counter |  |

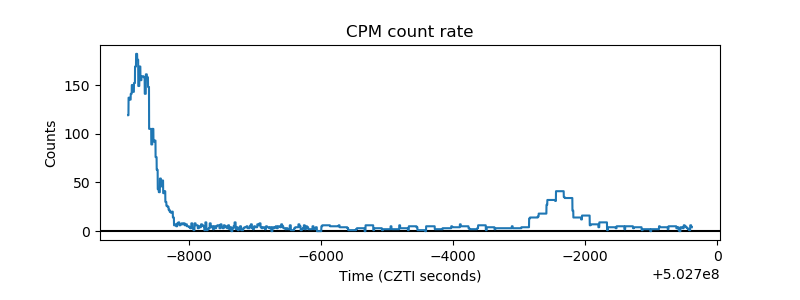

| _CPM_Rate |  |

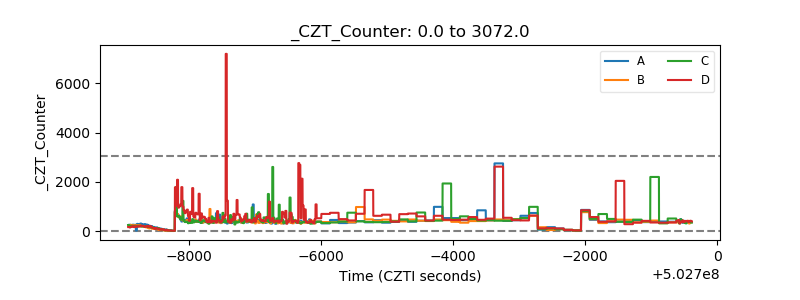

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
