| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T16_9000006532_55130cztM0_level2.fits | modeM0/AS1A14_022T16_9000006532_55130cztM0_level2_quad_clean.evt |
| Size (bytes) | 533,802,240 | 110,312,640 |
| Size | 509.1 MB | 105.2 MB |
| Events in quadrant A | 5,047,853 | 694,576 |
| Events in quadrant B | 3,611,291 | 787,440 |
| Events in quadrant C | 4,514,468 | 687,879 |
| Events in quadrant D | 5,973,434 | 622,480 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20960 | 7 |
| B | 0 | 16949 | 1 |
| C | 0 | 19460 | 14 |
| D | 0 | 23486 | 4 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7881 | 575 | 7.296028% |
| B | 7886 | 202 | 2.561501% |
| C | 7883 | 225 | 2.854243% |
| D | 7885 | 548 | 6.949905% |

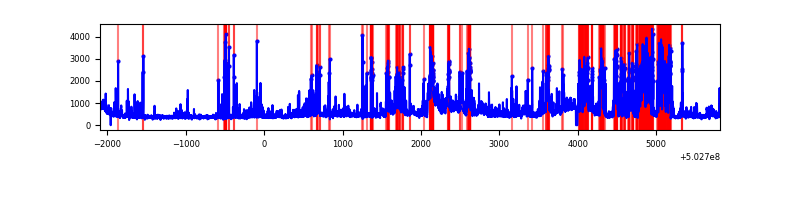

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

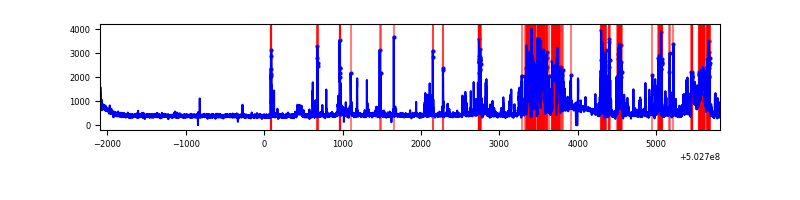

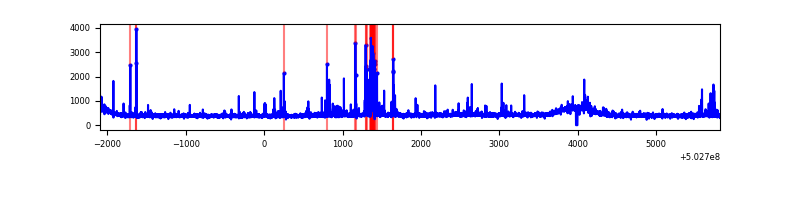

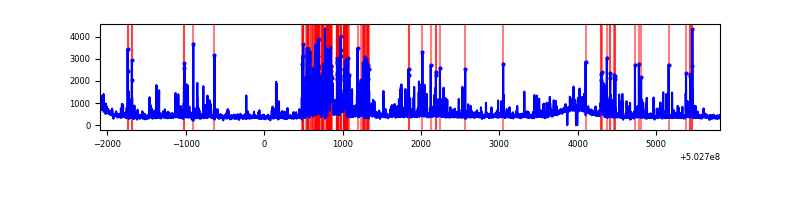

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7906 | 7886 | 385 | 385 | 4.87% | 4.88% |  |
| B | 7906 | 7887 | 41 | 41 | 0.52% | 0.52% |  |
| C | 7906 | 7886 | 169 | 169 | 2.14% | 2.14% |  |
| D | 7907 | 7887 | 500 | 500 | 6.32% | 6.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 190 | 1046885 | 5163.38 | 822 | 798 | 202.6 |
| A | 15 | 32 | 411667 | 2028.01 | 822 | 798 | 202.6 |
| A | 0 | 8 | 298162 | 1467.76 | 822 | 798 | 202.6 |
| B | 2 | 249 | 165096 | 920.92 | 829 | 798 | 178.4 |
| B | 10 | 247 | 50998 | 281.38 | 829 | 798 | 178.4 |
| B | 5 | 185 | 49293 | 271.82 | 829 | 798 | 178.4 |
| C | 13 | 3 | 590615 | 2644.49 | 813 | 806 | 223.0 |
| C | 14 | 254 | 179389 | 800.7 | 813 | 806 | 223.0 |
| C | 15 | 147 | 152034 | 678.05 | 813 | 806 | 223.0 |
| D | 11 | 129 | 1316809 | 5823.26 | 798 | 762 | 226.0 |
| D | 15 | 94 | 997411 | 4409.98 | 798 | 762 | 226.0 |
| D | 8 | 245 | 262181 | 1156.73 | 798 | 762 | 226.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

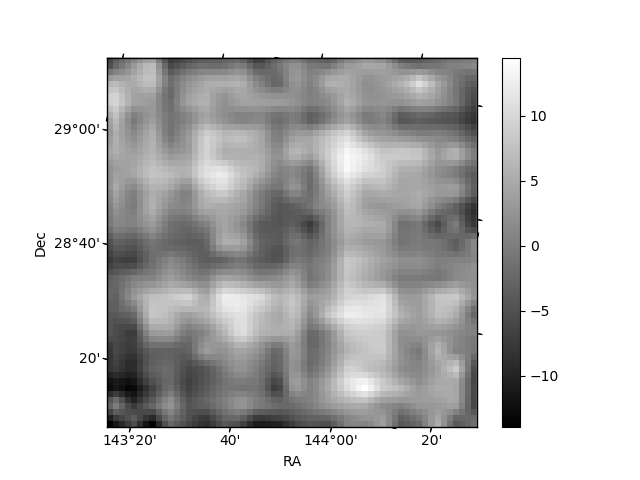

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

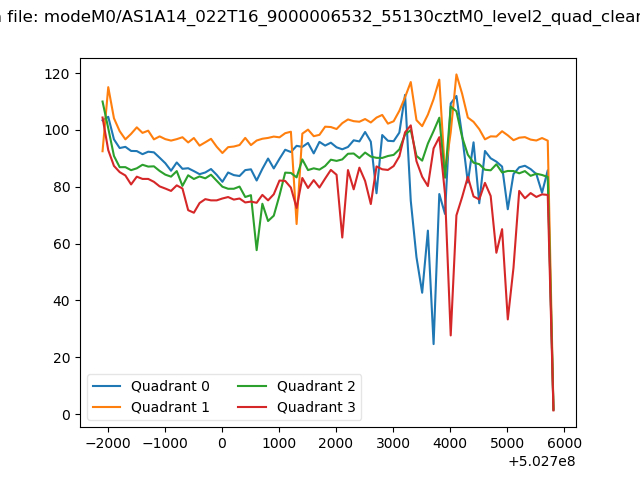

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

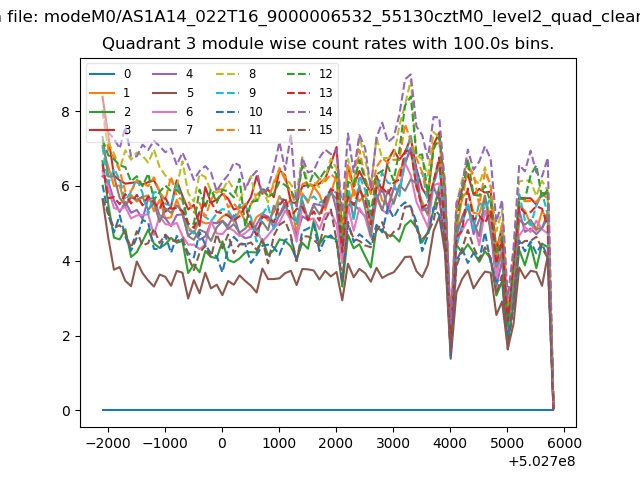

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

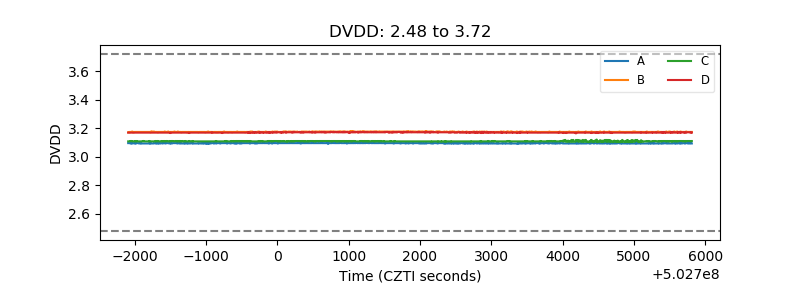

| D_VDD |  |

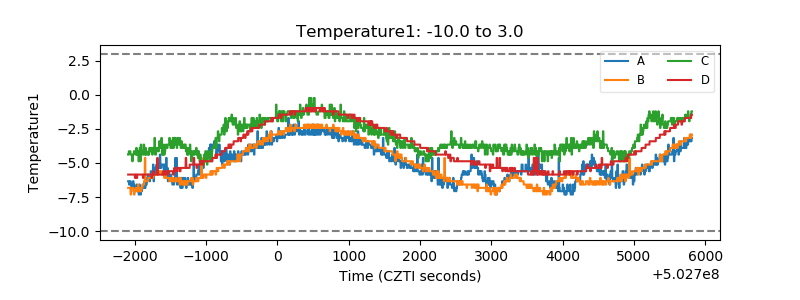

| Temperature 1 |  |

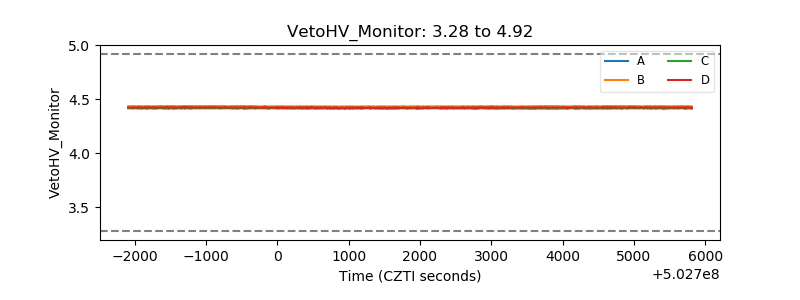

| Veto HV Monitor |  |
| Veto LLD |  |

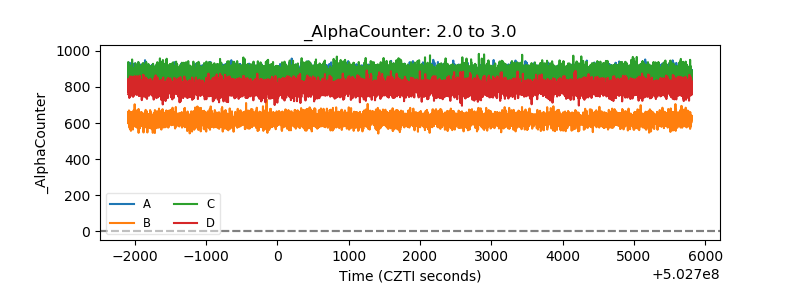

| Alpha Counter |  |

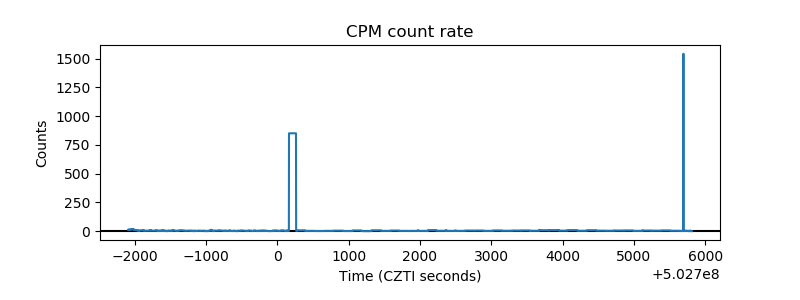

| _CPM_Rate |  |

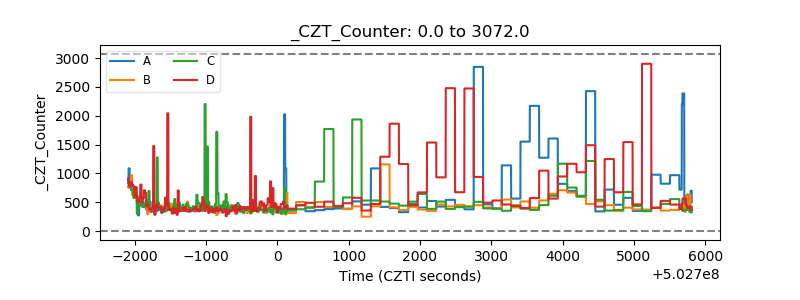

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

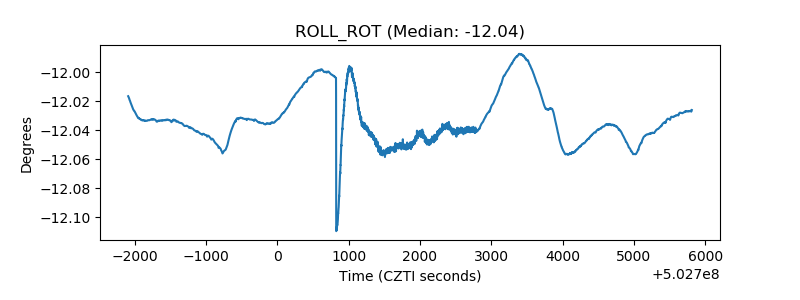

| _ROLL_ROT |  |

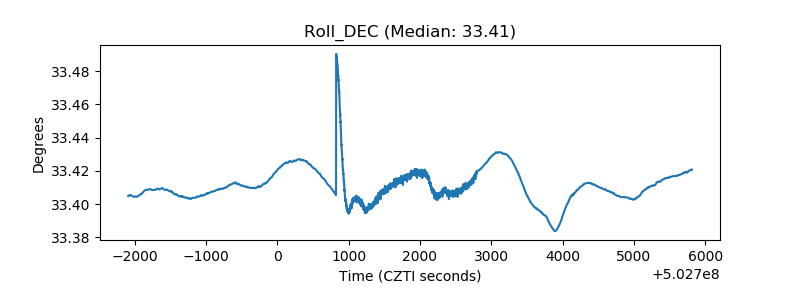

| _Roll_DEC |  |

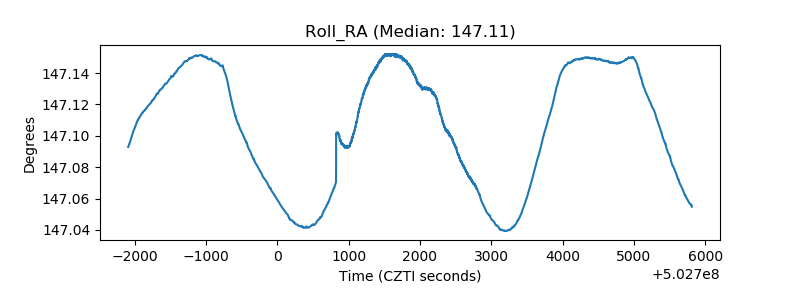

| _Roll_RA |  |
