| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T16_9000006532_55135cztM0_level2.fits | modeM0/AS1A14_022T16_9000006532_55135cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,202,497,920 | 264,758,400 |
| Size | 1.1 GB | 252.5 MB |
| Events in quadrant A | 11,876,054 | 1,691,941 |
| Events in quadrant B | 8,597,204 | 1,842,151 |
| Events in quadrant C | 9,564,816 | 1,637,487 |
| Events in quadrant D | 12,995,212 | 1,528,397 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 388 | 0 |
| B | 0 | 388 | 0 |
| C | 0 | 388 | 0 |
| D | 0 | 388 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49280 | 49 |
| B | 0 | 40019 | 23 |
| C | 0 | 42630 | 62 |
| D | 0 | 52038 | 53 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 19102 | 1037 | 5.428751% |
| B | 19105 | 386 | 2.020414% |
| C | 19081 | 369 | 1.933861% |
| D | 19097 | 876 | 4.587108% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 20228 | 19113 | 632 | 632 | 3.12% | 3.31% |  |
| B | 20229 | 19116 | 15 | 15 | 0.07% | 0.08% |  |
| C | 20229 | 19104 | 115 | 115 | 0.57% | 0.60% |  |
| D | 20228 | 19112 | 653 | 653 | 3.23% | 3.42% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 190 | 1994306 | 4045.71 | 2012 | 1962 | 492.5 |
| A | 12 | 115 | 756233 | 1531.64 | 2012 | 1962 | 492.5 |
| A | 15 | 32 | 568425 | 1150.28 | 2012 | 1962 | 492.5 |
| B | 4 | 21 | 190475 | 432.25 | 2009 | 1926 | 436.2 |
| B | 4 | 81 | 107497 | 242.02 | 2009 | 1926 | 436.2 |
| B | 10 | 247 | 91720 | 205.85 | 2009 | 1926 | 436.2 |
| C | 13 | 3 | 405513 | 752.21 | 1976 | 1959 | 536.5 |
| C | 9 | 38 | 374181 | 693.8 | 1976 | 1959 | 536.5 |
| C | 6 | 223 | 334609 | 620.04 | 1976 | 1959 | 536.5 |
| D | 11 | 129 | 3192029 | 5768.61 | 1964 | 1878 | 553.0 |
| D | 15 | 94 | 297867 | 535.22 | 1964 | 1878 | 553.0 |
| D | 8 | 245 | 279636 | 502.26 | 1964 | 1878 | 553.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

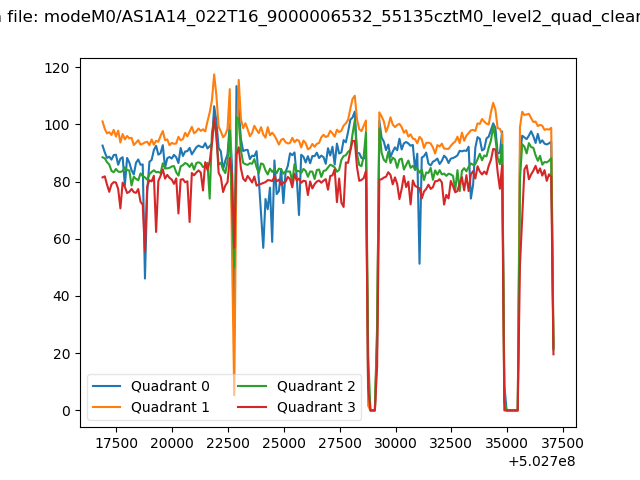

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

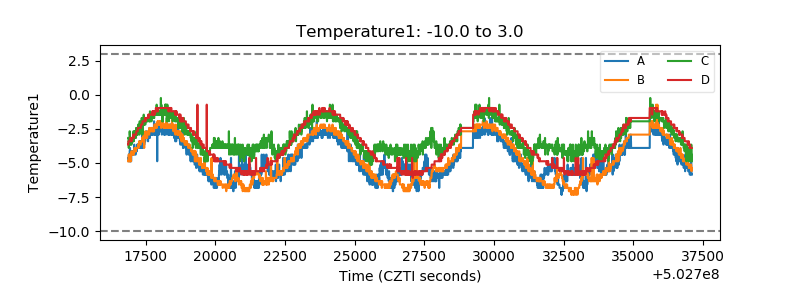

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

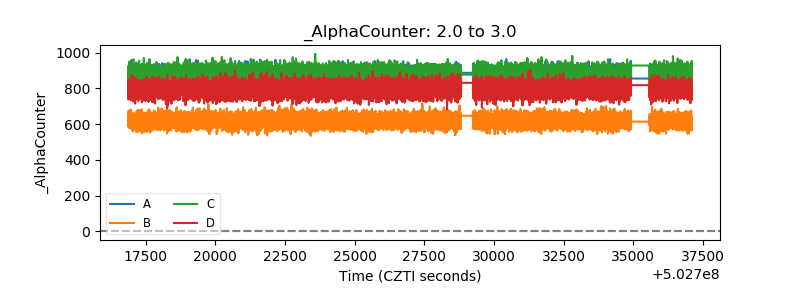

| Alpha Counter |  |

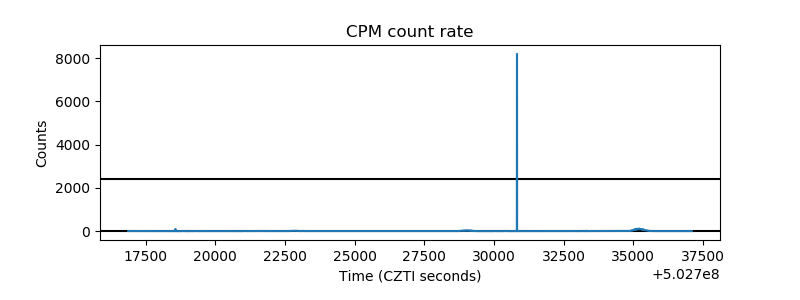

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

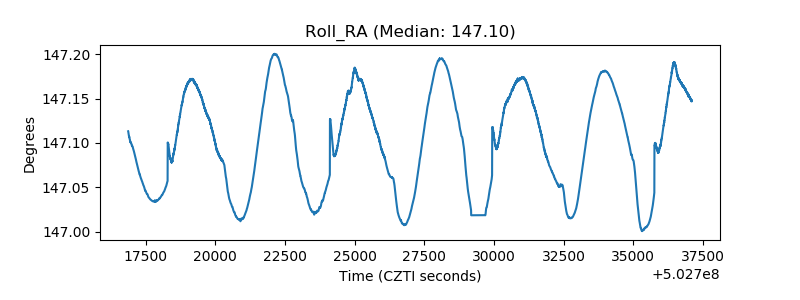

| _Roll_RA |  |
| Veto Counter |  |
