| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T16_9000006532_55139cztM0_level2.fits | modeM0/AS1A14_022T16_9000006532_55139cztM0_level2_quad_clean.evt |
| Size (bytes) | 522,483,840 | 99,181,440 |
| Size | 498.3 MB | 94.6 MB |
| Events in quadrant A | 3,247,530 | 671,357 |
| Events in quadrant B | 3,331,987 | 723,353 |
| Events in quadrant C | 3,296,237 | 638,405 |
| Events in quadrant D | 8,923,286 | 484,584 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14880 | 4 |
| B | 0 | 15085 | 4 |
| C | 0 | 15144 | 2 |
| D | 0 | 31422 | 24 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6972 | 80 | 1.147447% |
| B | 6973 | 93 | 1.333716% |
| C | 6974 | 68 | 0.975050% |
| D | 6971 | 1528 | 21.919380% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9078 | 6975 | 27 | 27 | 0.30% | 0.39% |  |
| B | 9079 | 6976 | 26 | 26 | 0.29% | 0.37% |  |
| C | 9079 | 6976 | 32 | 32 | 0.35% | 0.46% |  |
| D | 9079 | 6973 | 1525 | 1525 | 16.80% | 21.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 32 | 235840 | 1279.09 | 745 | 725 | 183.8 |
| A | 0 | 8 | 72852 | 392.39 | 745 | 725 | 183.8 |
| A | 13 | 254 | 16879 | 87.88 | 745 | 725 | 183.8 |
| B | 4 | 81 | 112363 | 696.44 | 741 | 714 | 160.3 |
| B | 5 | 185 | 88768 | 549.26 | 741 | 714 | 160.3 |
| B | 10 | 247 | 79094 | 488.91 | 741 | 714 | 160.3 |
| C | 6 | 223 | 132054 | 660.82 | 727 | 720 | 198.7 |
| C | 13 | 3 | 83264 | 415.33 | 727 | 720 | 198.7 |
| C | 12 | 249 | 60687 | 301.73 | 727 | 720 | 198.7 |
| D | 11 | 129 | 5893594 | 31843.05 | 646 | 617 | 185.1 |
| D | 11 | 176 | 168791 | 908.74 | 646 | 617 | 185.1 |
| D | 3 | 12 | 150932 | 812.24 | 646 | 617 | 185.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

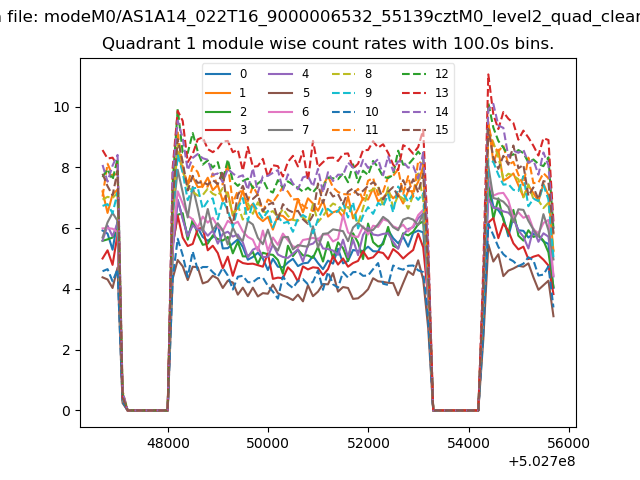

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

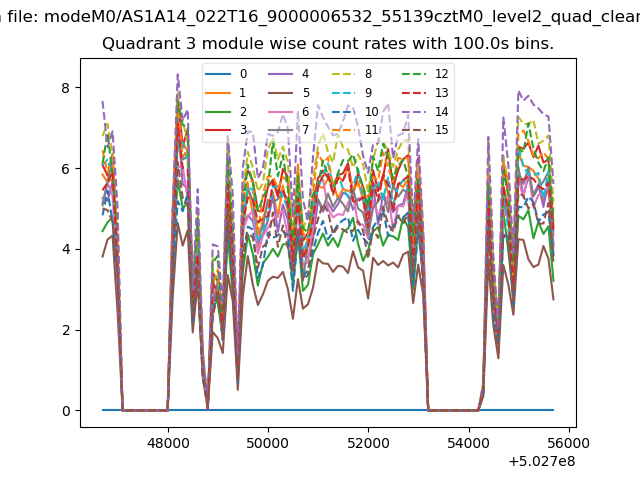

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

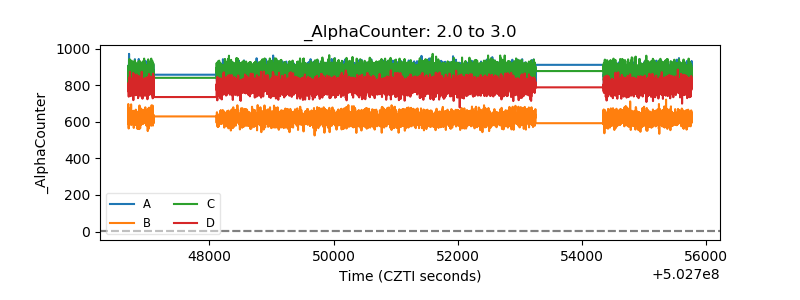

| Alpha Counter |  |

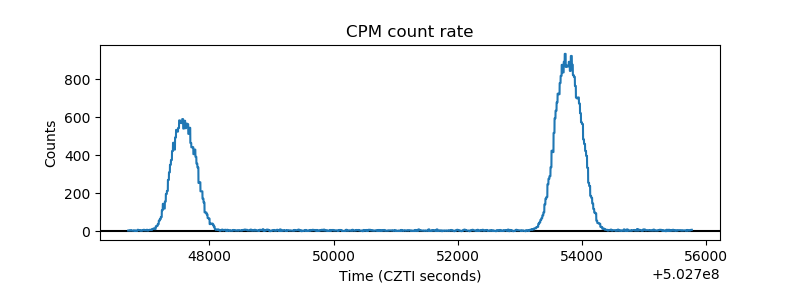

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

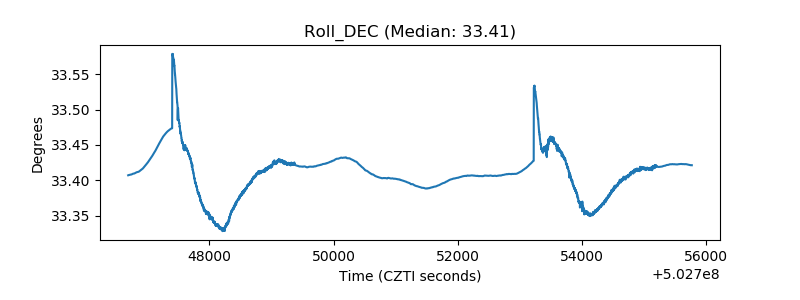

| _Roll_DEC |  |

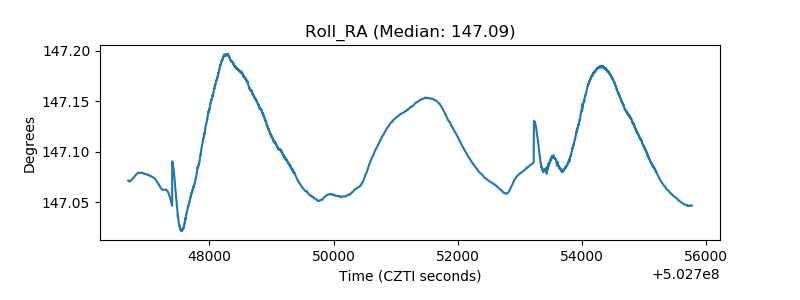

| _Roll_RA |  |
| Veto Counter |  |
