| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T16_9000006532_55141cztM0_level2.fits | modeM0/AS1A14_022T16_9000006532_55141cztM0_level2_quad_clean.evt |
| Size (bytes) | 450,722,880 | 99,518,400 |
| Size | 429.8 MB | 94.9 MB |
| Events in quadrant A | 3,634,830 | 649,239 |
| Events in quadrant B | 3,004,135 | 721,098 |
| Events in quadrant C | 3,350,295 | 629,865 |
| Events in quadrant D | 6,171,147 | 543,344 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16053 | 2 |
| B | 0 | 14115 | 2 |
| C | 0 | 15150 | 2 |
| D | 0 | 23223 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6738 | 208 | 3.086969% |
| B | 6738 | 35 | 0.519442% |
| C | 6738 | 56 | 0.831107% |
| D | 6738 | 656 | 9.735827% |

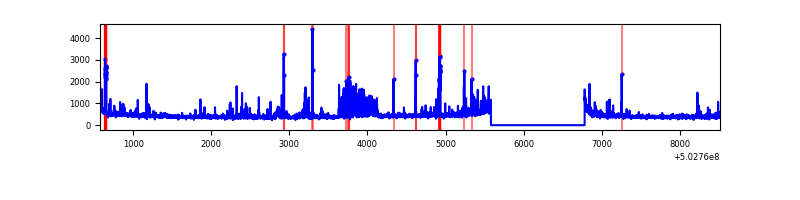

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7938 | 6739 | 142 | 142 | 1.79% | 2.11% |  |
| B | 7938 | 6739 | 10 | 10 | 0.13% | 0.15% |  |
| C | 7938 | 6739 | 44 | 44 | 0.55% | 0.65% |  |
| D | 7938 | 6739 | 644 | 644 | 8.11% | 9.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 32 | 558659 | 3144.2 | 706 | 688 | 177.5 |
| A | 0 | 8 | 136632 | 766.05 | 706 | 688 | 177.5 |
| A | 4 | 206 | 102455 | 573.46 | 706 | 688 | 177.5 |
| B | 5 | 185 | 71814 | 465.67 | 711 | 687 | 152.7 |
| B | 4 | 81 | 37511 | 241.09 | 711 | 687 | 152.7 |
| B | 10 | 247 | 23301 | 148.05 | 711 | 687 | 152.7 |
| C | 9 | 38 | 339704 | 1772.63 | 693 | 688 | 191.3 |
| C | 6 | 223 | 58539 | 302.49 | 693 | 688 | 191.3 |
| C | 14 | 254 | 47856 | 246.63 | 693 | 688 | 191.3 |
| D | 11 | 129 | 3056515 | 16549.32 | 649 | 619 | 184.7 |
| D | 11 | 176 | 261645 | 1413.6 | 649 | 619 | 184.7 |
| D | 12 | 6 | 84130 | 452.26 | 649 | 619 | 184.7 |

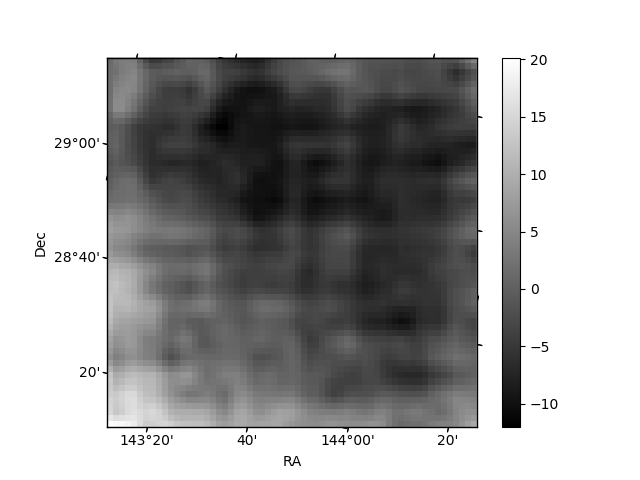

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

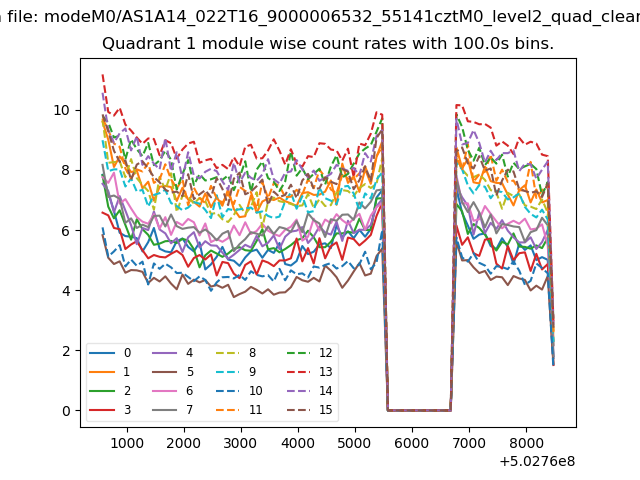

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

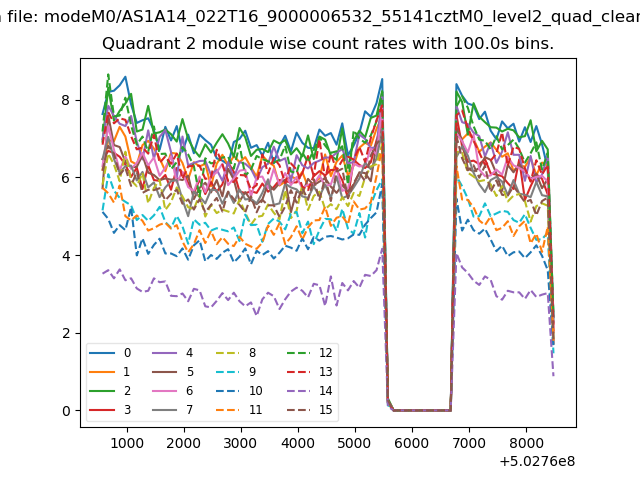

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

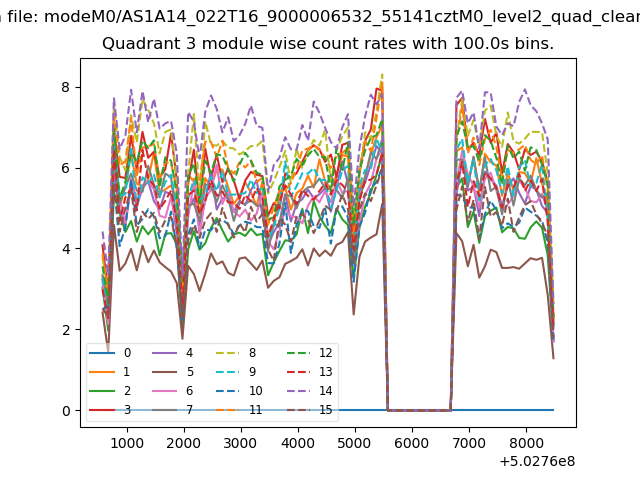

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

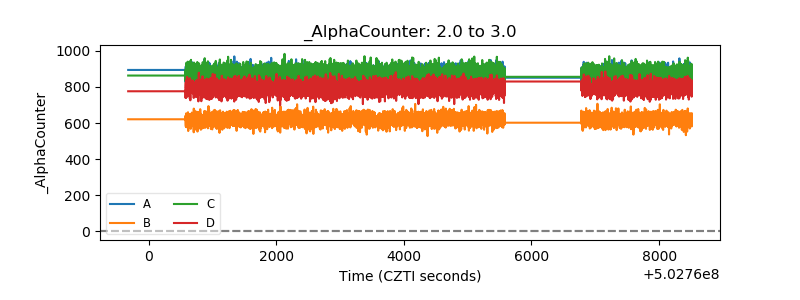

| Alpha Counter |  |

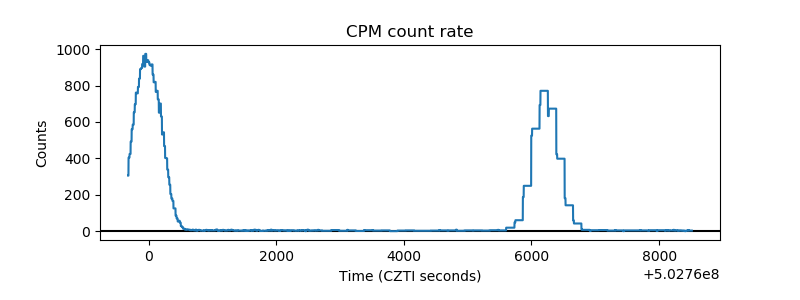

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

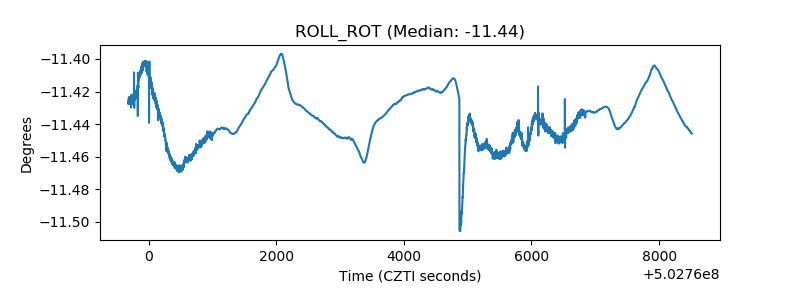

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
