| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T16_9000006532_55144cztM0_level2.fits | modeM0/AS1A14_022T16_9000006532_55144cztM0_level2_quad_clean.evt |
| Size (bytes) | 515,917,440 | 87,301,440 |
| Size | 492.0 MB | 83.3 MB |
| Events in quadrant A | 5,771,767 | 533,419 |
| Events in quadrant B | 3,213,786 | 634,047 |
| Events in quadrant C | 3,189,202 | 569,837 |
| Events in quadrant D | 6,420,111 | 454,726 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 2 |
| B | 0 | 136 | 2 |
| C | 0 | 135 | 1 |
| D | 0 | 136 | 4 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22142 | 313 |
| B | 0 | 14800 | 383 |
| C | 0 | 14635 | 245 |
| D | 0 | 24116 | 425 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6462 | 897 | 13.881151% |
| B | 6461 | 234 | 3.621730% |
| C | 6477 | 81 | 1.250579% |
| D | 6467 | 1130 | 17.473326% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6920 | 6487 | 721 | 721 | 10.42% | 11.11% |  |
| B | 6920 | 6484 | 52 | 52 | 0.75% | 0.80% |  |
| C | 6939 | 6504 | 17 | 17 | 0.24% | 0.26% |  |
| D | 6912 | 6491 | 965 | 965 | 13.96% | 14.87% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 78 | 2722712 | 16794.7 | 657 | 642 | 162.1 |
| A | 15 | 32 | 235759 | 1450.63 | 657 | 642 | 162.1 |
| A | 0 | 8 | 181670 | 1116.91 | 657 | 642 | 162.1 |
| B | 4 | 81 | 424741 | 2888.51 | 680 | 654 | 146.8 |
| B | 0 | 182 | 32044 | 213.8 | 680 | 654 | 146.8 |
| B | 12 | 111 | 18357 | 120.58 | 680 | 654 | 146.8 |
| C | 1 | 16 | 178281 | 955.98 | 675 | 669 | 185.8 |
| C | 6 | 223 | 98744 | 527.88 | 675 | 669 | 185.8 |
| C | 14 | 254 | 59339 | 315.79 | 675 | 669 | 185.8 |
| D | 11 | 129 | 3317050 | 19163.03 | 618 | 591 | 173.1 |
| D | 11 | 176 | 171210 | 985.86 | 618 | 591 | 173.1 |
| D | 2 | 249 | 149448 | 860.12 | 618 | 591 | 173.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

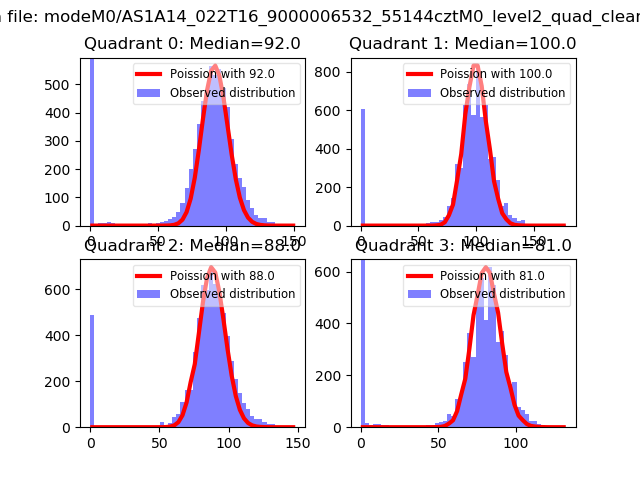

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

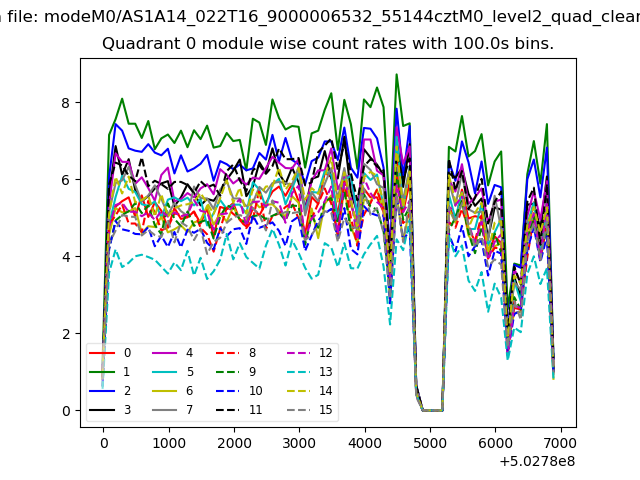

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

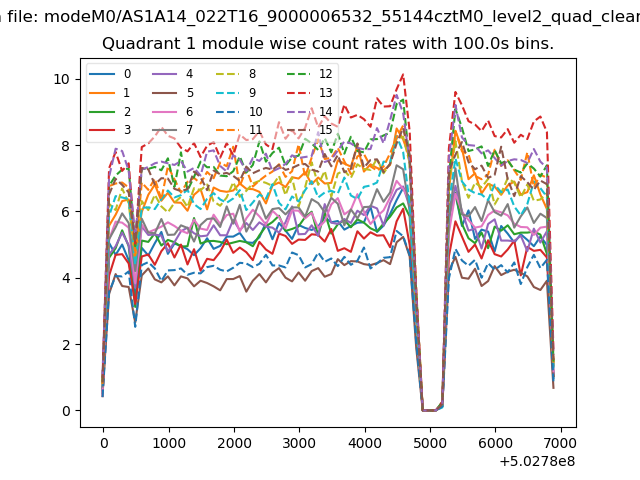

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

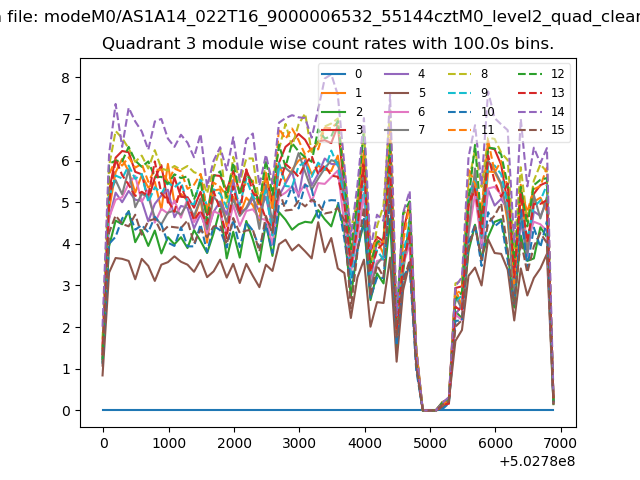

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

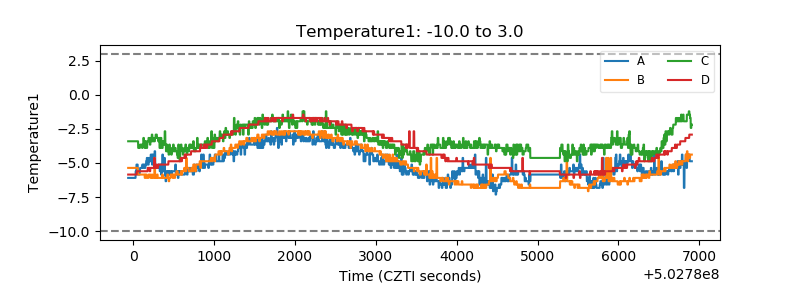

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

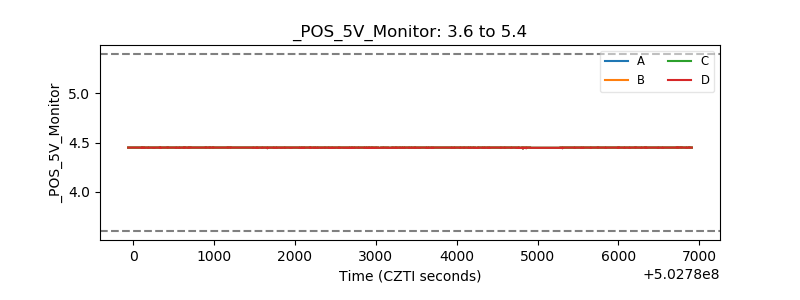

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

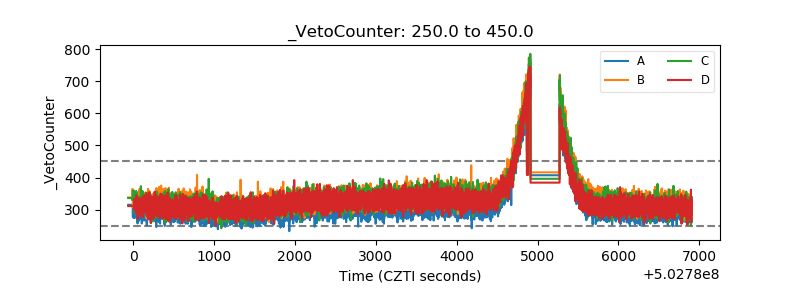

| Veto Counter |  |
