| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T16_9000006532_55153cztM0_level2.fits | modeM0/AS1A14_022T16_9000006532_55153cztM0_level2_quad_clean.evt |
| Size (bytes) | 570,988,800 | 89,769,600 |
| Size | 544.5 MB | 85.6 MB |
| Events in quadrant A | 5,728,164 | 575,110 |
| Events in quadrant B | 4,983,814 | 593,012 |
| Events in quadrant C | 4,671,282 | 575,741 |
| Events in quadrant D | 5,244,041 | 516,404 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21585 | 2 |
| B | 0 | 19792 | 2 |
| C | 0 | 18428 | 2 |
| D | 0 | 20329 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6556 | 684 | 10.433191% |
| B | 6556 | 832 | 12.690665% |
| C | 6556 | 294 | 4.484442% |
| D | 6556 | 687 | 10.478951% |

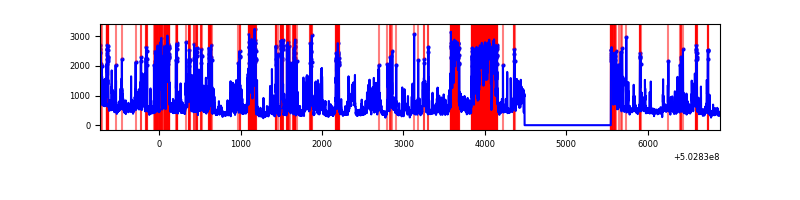

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7616 | 6557 | 635 | 635 | 8.34% | 9.68% |  |
| B | 7616 | 6556 | 669 | 669 | 8.78% | 10.20% |  |
| C | 7616 | 6556 | 262 | 262 | 3.44% | 4.00% |  |
| D | 7616 | 6556 | 660 | 660 | 8.67% | 10.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 78 | 2812296 | 16733.39 | 671 | 654 | 168.0 |
| A | 0 | 8 | 285505 | 1695.28 | 671 | 654 | 168.0 |
| A | 13 | 254 | 12967 | 73.28 | 671 | 654 | 168.0 |
| B | 2 | 249 | 2163156 | 15336.57 | 655 | 630 | 141.0 |
| B | 0 | 197 | 81872 | 576.17 | 655 | 630 | 141.0 |
| B | 5 | 185 | 38641 | 269.57 | 655 | 630 | 141.0 |
| C | 13 | 3 | 724059 | 3895.63 | 670 | 665 | 185.7 |
| C | 9 | 38 | 628947 | 3383.43 | 670 | 665 | 185.7 |
| C | 10 | 22 | 246287 | 1322.72 | 670 | 665 | 185.7 |
| D | 11 | 129 | 2213758 | 11928.19 | 648 | 619 | 185.5 |
| D | 3 | 12 | 227814 | 1224.52 | 648 | 619 | 185.5 |
| D | 7 | 129 | 58049 | 309.53 | 648 | 619 | 185.5 |

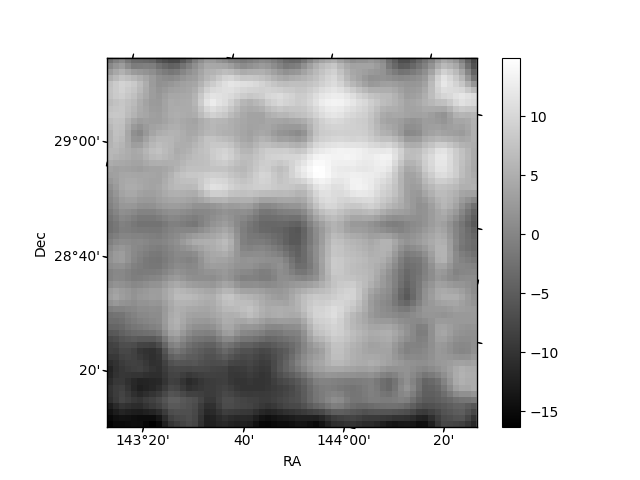

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

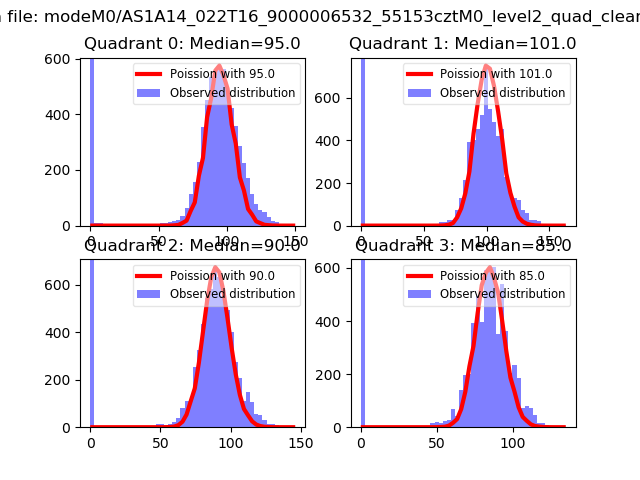

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

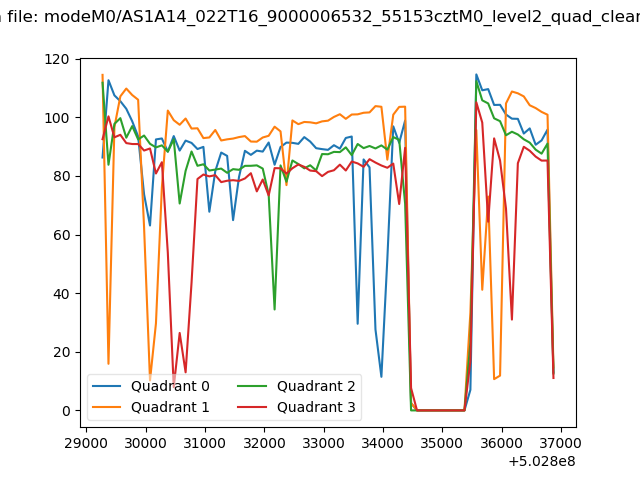

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

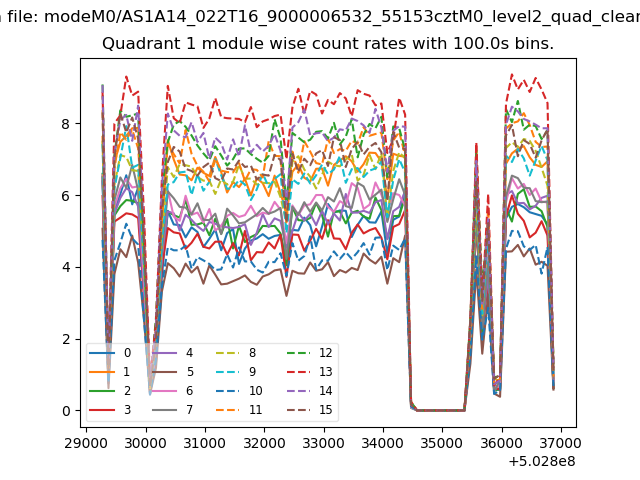

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

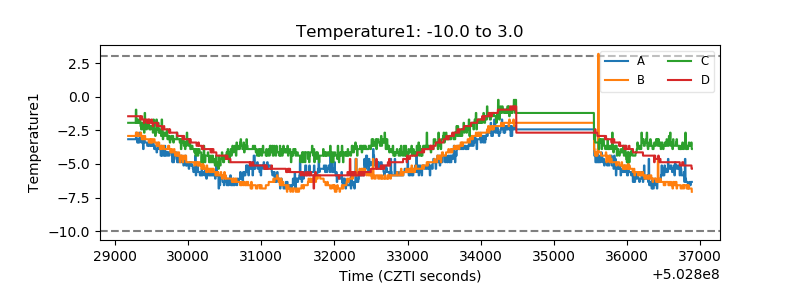

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

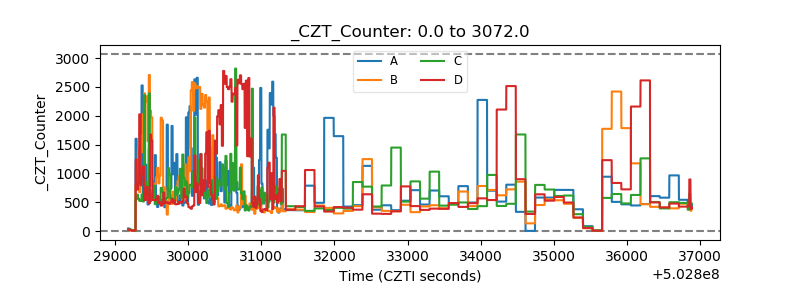

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
