| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T16_9000006532_55168cztM0_level2.fits | modeM0/AS1A14_022T16_9000006532_55168cztM0_level2_quad_clean.evt |
| Size (bytes) | 408,084,480 | 90,794,880 |
| Size | 389.2 MB | 86.6 MB |
| Events in quadrant A | 4,569,361 | 580,438 |
| Events in quadrant B | 2,800,904 | 643,289 |
| Events in quadrant C | 3,975,212 | 552,493 |
| Events in quadrant D | 3,274,328 | 537,070 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17945 | 2 |
| B | 0 | 13187 | 1 |
| C | 0 | 16299 | 1 |
| D | 0 | 14334 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6250 | 311 | 4.976000% |
| B | 6250 | 40 | 0.640000% |
| C | 6250 | 258 | 4.128000% |
| D | 6251 | 59 | 0.943849% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7346 | 6251 | 306 | 306 | 4.17% | 4.90% |  |
| B | 7346 | 6251 | 10 | 10 | 0.14% | 0.16% |  |
| C | 7346 | 6251 | 187 | 187 | 2.55% | 2.99% |  |
| D | 7347 | 6252 | 63 | 63 | 0.86% | 1.01% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 78 | 1427235 | 8879.48 | 647 | 631 | 160.7 |
| A | 12 | 115 | 373077 | 2318.18 | 647 | 631 | 160.7 |
| A | 0 | 8 | 188993 | 1172.4 | 647 | 631 | 160.7 |
| B | 2 | 249 | 118473 | 847.86 | 652 | 628 | 139.0 |
| B | 5 | 185 | 49550 | 351.98 | 652 | 628 | 139.0 |
| B | 0 | 182 | 19663 | 136.95 | 652 | 628 | 139.0 |
| C | 1 | 16 | 573417 | 3301.61 | 628 | 624 | 173.5 |
| C | 15 | 199 | 301508 | 1734.31 | 628 | 624 | 173.5 |
| C | 6 | 13 | 117756 | 675.16 | 628 | 624 | 173.5 |
| D | 11 | 129 | 543353 | 2992.87 | 635 | 607 | 181.3 |
| D | 3 | 12 | 89359 | 489.41 | 635 | 607 | 181.3 |
| D | 5 | 173 | 50140 | 273.14 | 635 | 607 | 181.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

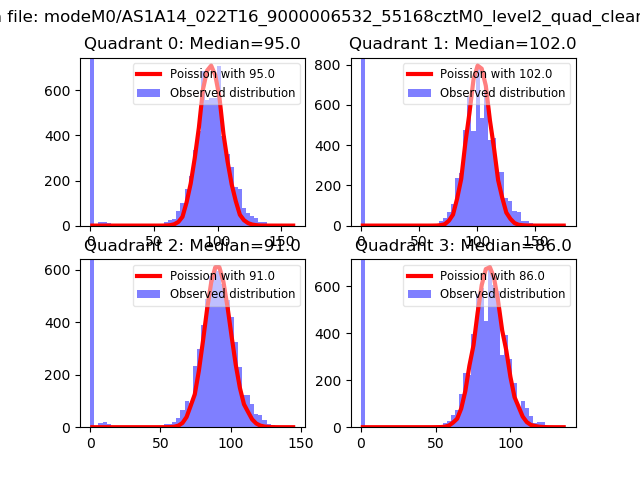

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

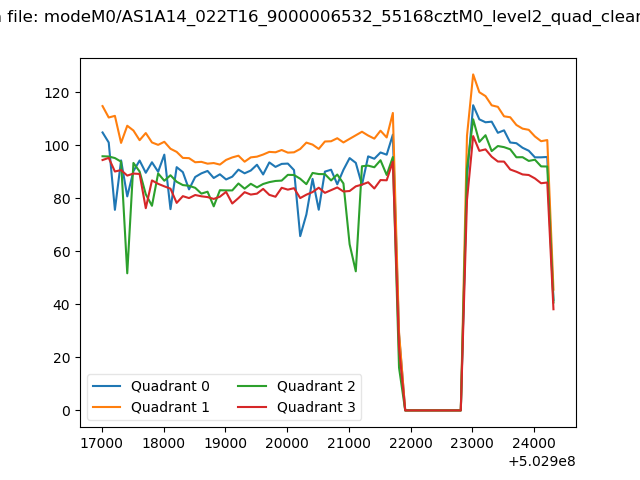

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

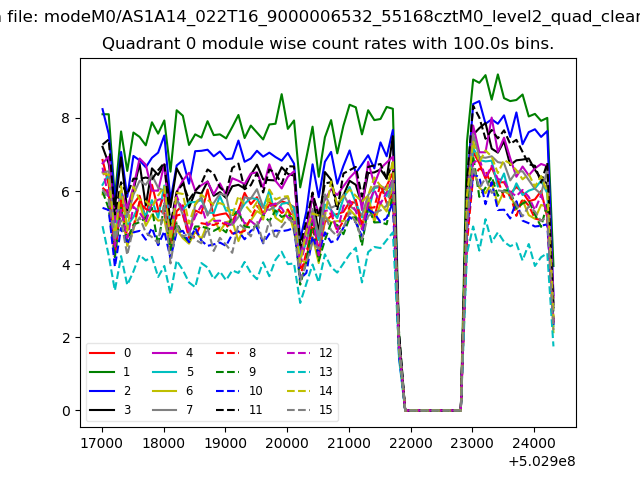

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

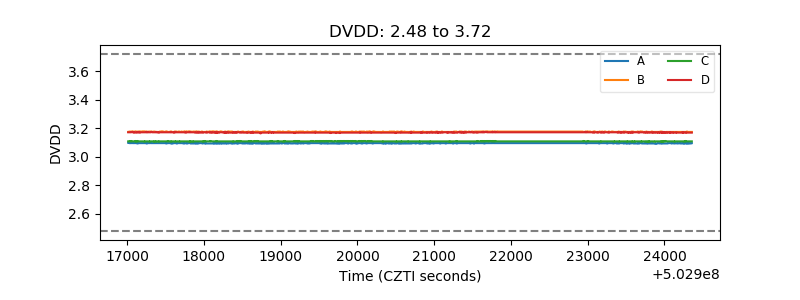

| D_VDD |  |
| Temperature 1 |  |

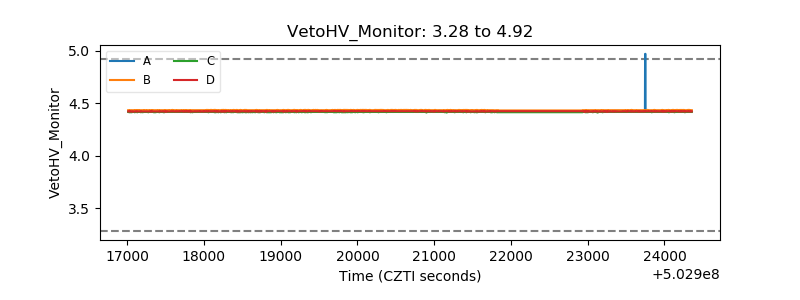

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

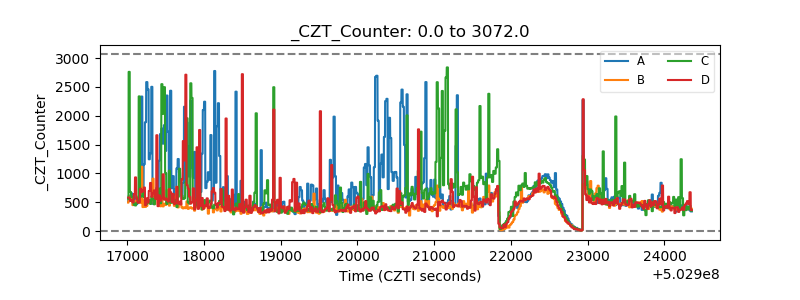

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

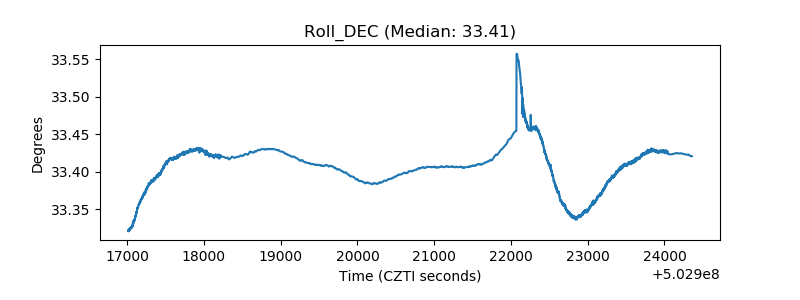

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
