| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T16_9000006532_55186cztM0_level2.fits | modeM0/AS1A14_022T16_9000006532_55186cztM0_level2_quad_clean.evt |
| Size (bytes) | 397,442,880 | 101,537,280 |
| Size | 379.0 MB | 96.8 MB |
| Events in quadrant A | 3,165,221 | 662,485 |
| Events in quadrant B | 3,005,371 | 717,050 |
| Events in quadrant C | 3,545,326 | 630,379 |
| Events in quadrant D | 4,454,235 | 579,576 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14757 | 2 |
| B | 0 | 14454 | 2 |
| C | 0 | 15705 | 2 |
| D | 0 | 18524 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6962 | 73 | 1.048549% |
| B | 6962 | 77 | 1.106004% |
| C | 6962 | 100 | 1.436369% |
| D | 6962 | 279 | 4.007469% |

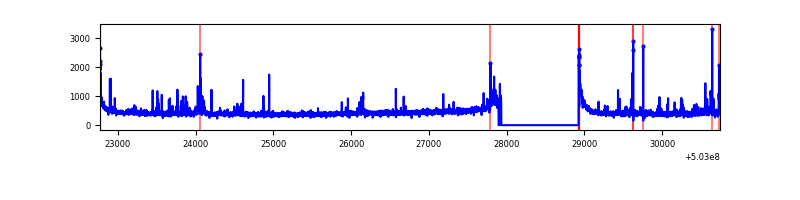

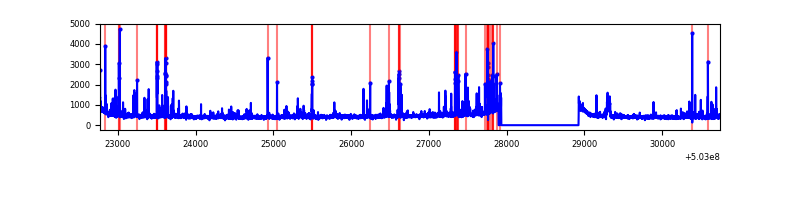

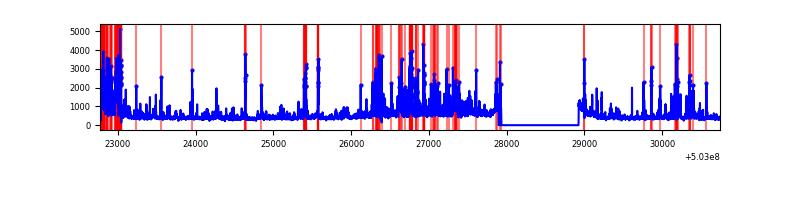

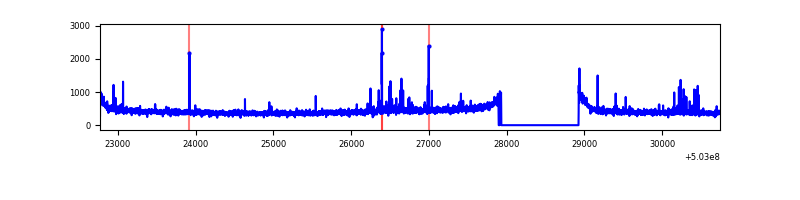

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7972 | 6964 | 16 | 16 | 0.20% | 0.23% |  |
| B | 7972 | 6964 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7972 | 6964 | 58 | 58 | 0.73% | 0.83% |  |
| D | 7972 | 6964 | 217 | 217 | 2.72% | 3.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 78 | 158152 | 872.7 | 733 | 715 | 180.4 |
| A | 4 | 249 | 105426 | 580.43 | 733 | 715 | 180.4 |
| A | 4 | 3 | 28003 | 151.26 | 733 | 715 | 180.4 |
| B | 10 | 247 | 62706 | 390.77 | 732 | 706 | 158.7 |
| B | 2 | 249 | 31473 | 193.92 | 732 | 706 | 158.7 |
| B | 12 | 111 | 19290 | 117.13 | 732 | 706 | 158.7 |
| C | 1 | 16 | 179212 | 907.85 | 712 | 707 | 196.6 |
| C | 6 | 13 | 110557 | 558.68 | 712 | 707 | 196.6 |
| C | 13 | 3 | 81778 | 412.31 | 712 | 707 | 196.6 |
| D | 2 | 249 | 876043 | 4464.82 | 694 | 664 | 196.1 |
| D | 11 | 129 | 548466 | 2794.03 | 694 | 664 | 196.1 |
| D | 11 | 176 | 60176 | 303.54 | 694 | 664 | 196.1 |

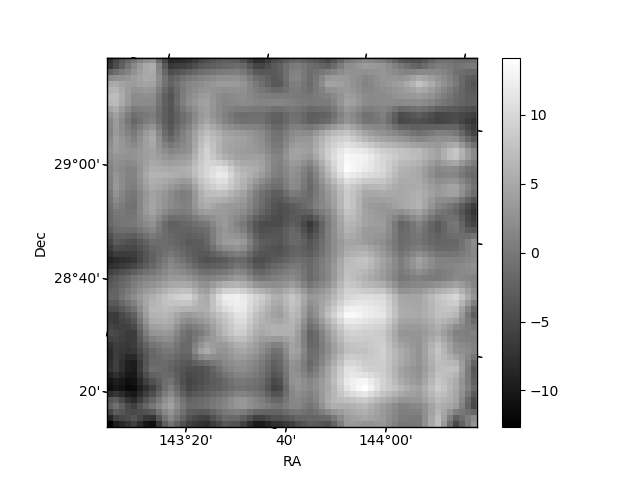

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

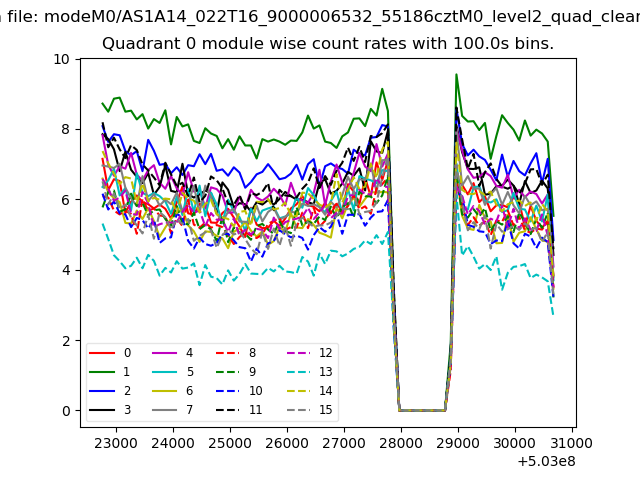

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

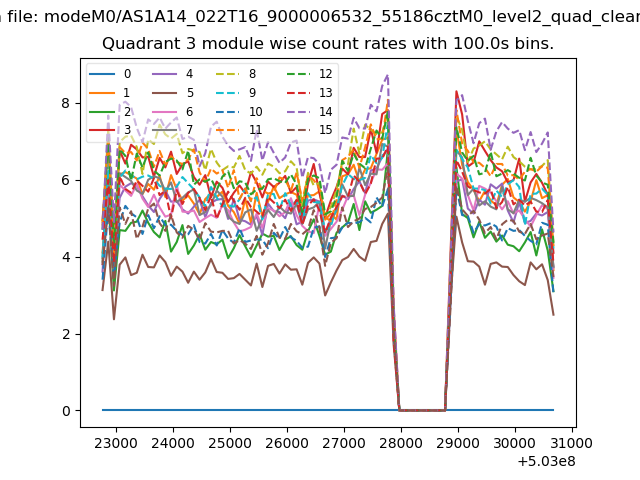

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

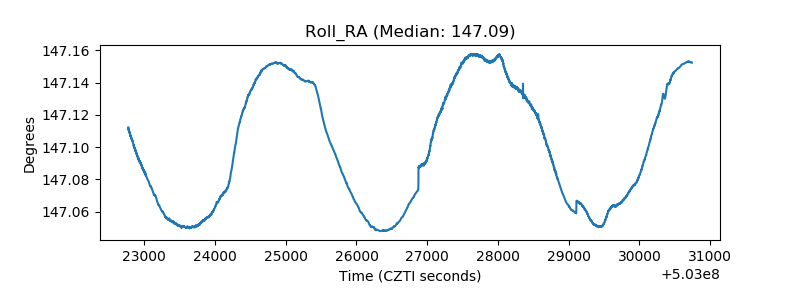

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
