| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T16_9000006532_55187cztM0_level2.fits | modeM0/AS1A14_022T16_9000006532_55187cztM0_level2_quad_clean.evt |
| Size (bytes) | 413,948,160 | 103,714,560 |
| Size | 394.8 MB | 98.9 MB |
| Events in quadrant A | 4,078,980 | 665,042 |
| Events in quadrant B | 3,251,303 | 724,764 |
| Events in quadrant C | 3,592,858 | 641,157 |
| Events in quadrant D | 3,837,606 | 606,149 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17313 | 2 |
| B | 0 | 15392 | 3 |
| C | 0 | 16100 | 2 |
| D | 0 | 16812 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7226 | 187 | 2.587877% |
| B | 7225 | 133 | 1.840830% |
| C | 7225 | 100 | 1.384083% |
| D | 7225 | 84 | 1.162630% |

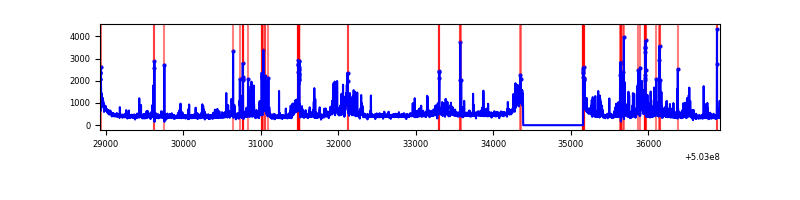

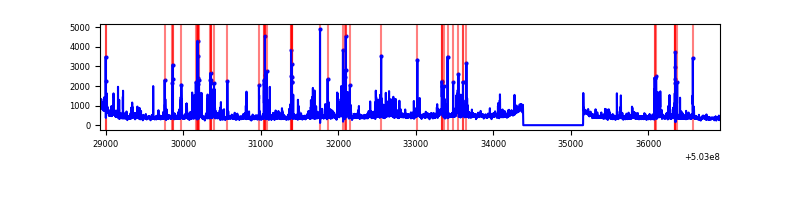

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8001 | 7227 | 82 | 82 | 1.02% | 1.13% |  |
| B | 8000 | 7226 | 26 | 26 | 0.33% | 0.36% |  |
| C | 8000 | 7226 | 63 | 63 | 0.79% | 0.87% |  |
| D | 8000 | 7226 | 61 | 61 | 0.76% | 0.84% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 78 | 693937 | 3681.12 | 756 | 736 | 188.3 |
| A | 4 | 249 | 295796 | 1566.86 | 756 | 736 | 188.3 |
| A | 4 | 206 | 35779 | 186.09 | 756 | 736 | 188.3 |
| B | 2 | 249 | 157526 | 960.2 | 753 | 726 | 163.3 |
| B | 10 | 247 | 57801 | 349.51 | 753 | 726 | 163.3 |
| B | 0 | 182 | 20689 | 122.25 | 753 | 726 | 163.3 |
| C | 1 | 16 | 181363 | 884.46 | 739 | 734 | 204.2 |
| C | 10 | 22 | 142091 | 692.17 | 739 | 734 | 204.2 |
| C | 12 | 252 | 113047 | 549.95 | 739 | 734 | 204.2 |
| D | 11 | 129 | 290446 | 1399.34 | 731 | 700 | 207.1 |
| D | 2 | 249 | 268591 | 1293.79 | 731 | 700 | 207.1 |
| D | 11 | 176 | 170294 | 819.06 | 731 | 700 | 207.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

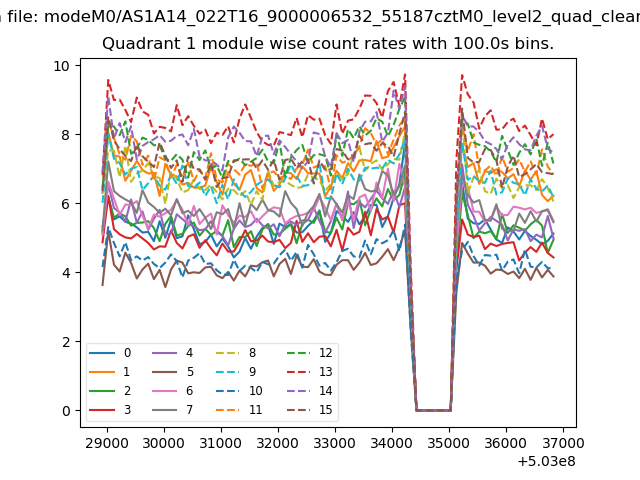

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

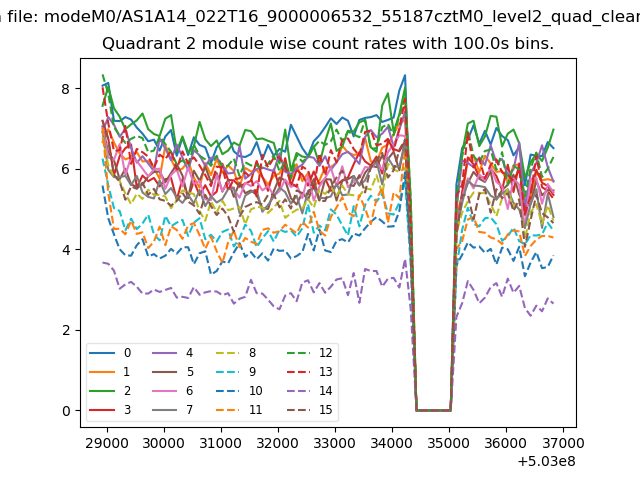

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

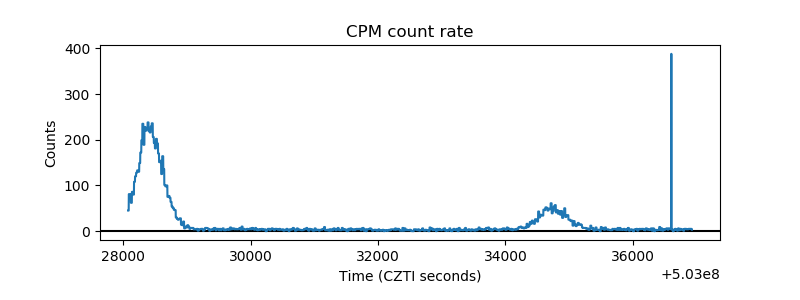

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

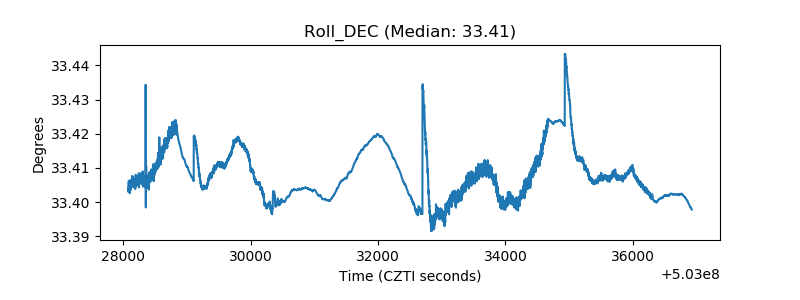

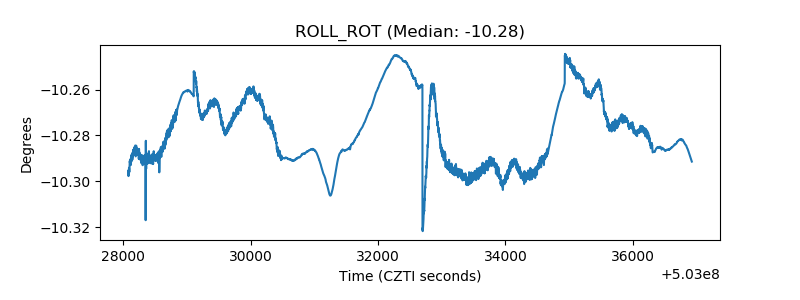

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

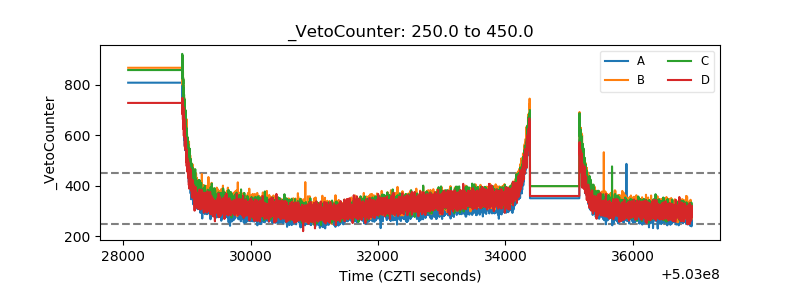

| Veto Counter |  |
