| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T16_9000006532_55196cztM0_level2.fits | modeM0/AS1A14_022T16_9000006532_55196cztM0_level2_quad_clean.evt |
| Size (bytes) | 523,442,880 | 87,799,680 |
| Size | 499.2 MB | 83.7 MB |
| Events in quadrant A | 7,548,329 | 463,294 |
| Events in quadrant B | 2,809,190 | 651,116 |
| Events in quadrant C | 4,008,419 | 568,583 |
| Events in quadrant D | 4,509,760 | 525,812 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26994 | 7 |
| B | 0 | 13240 | 1 |
| C | 0 | 16787 | 1 |
| D | 0 | 18093 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6439 | 1671 | 25.951235% |
| B | 6439 | 44 | 0.683336% |
| C | 6440 | 169 | 2.624224% |
| D | 6440 | 373 | 5.791925% |

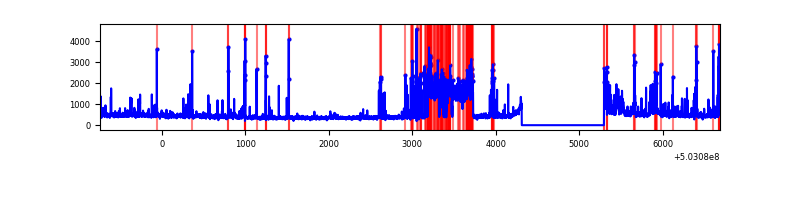

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7424 | 6440 | 1389 | 1389 | 18.71% | 21.57% |  |
| B | 7424 | 6440 | 8 | 8 | 0.11% | 0.12% |  |
| C | 7425 | 6441 | 176 | 176 | 2.37% | 2.73% |  |
| D | 7425 | 6441 | 272 | 272 | 3.66% | 4.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 3144169 | 21076.69 | 600 | 586 | 149.1 |
| A | 3 | 45 | 1575384 | 10558.5 | 600 | 586 | 149.1 |
| A | 0 | 8 | 293735 | 1965.47 | 600 | 586 | 149.1 |
| B | 10 | 247 | 70935 | 483.98 | 675 | 652 | 145.2 |
| B | 2 | 249 | 27214 | 182.91 | 675 | 652 | 145.2 |
| B | 0 | 182 | 21315 | 142.29 | 675 | 652 | 145.2 |
| C | 1 | 16 | 675137 | 3702.09 | 659 | 652 | 182.2 |
| C | 13 | 3 | 246872 | 1351.44 | 659 | 652 | 182.2 |
| C | 14 | 254 | 165580 | 905.25 | 659 | 652 | 182.2 |
| D | 2 | 249 | 741577 | 4008.4 | 652 | 623 | 184.9 |
| D | 11 | 129 | 314414 | 1697.54 | 652 | 623 | 184.9 |
| D | 6 | 239 | 238347 | 1286.03 | 652 | 623 | 184.9 |

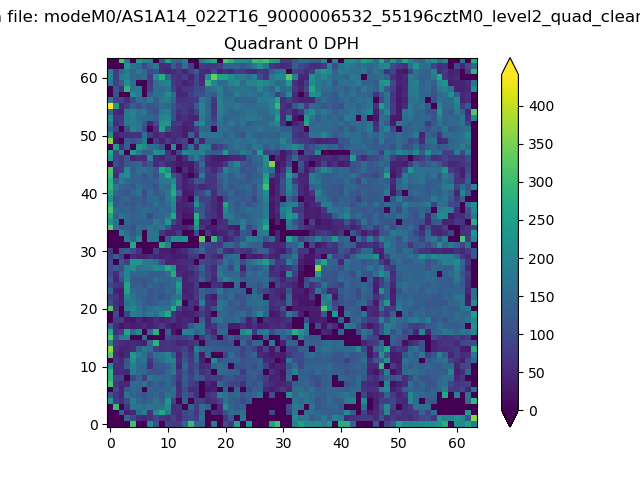

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

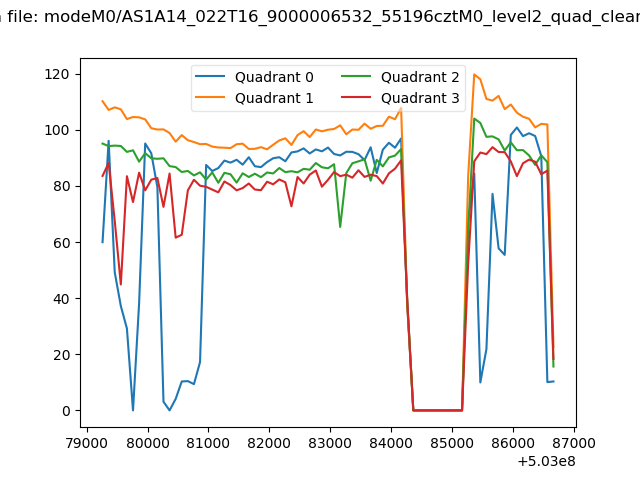

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

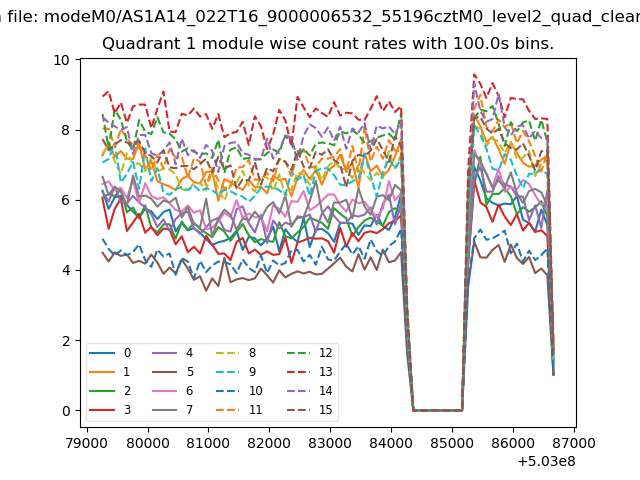

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

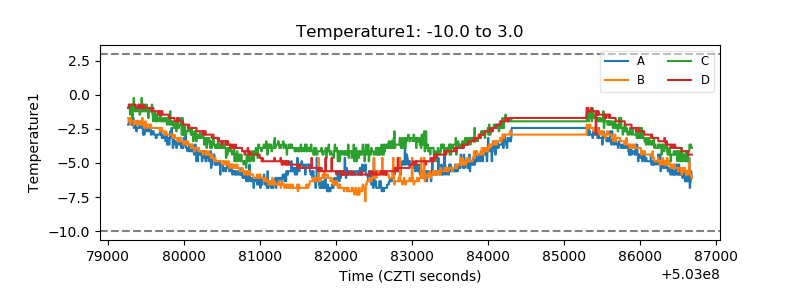

| Temperature 1 |  |
| Veto HV Monitor |  |

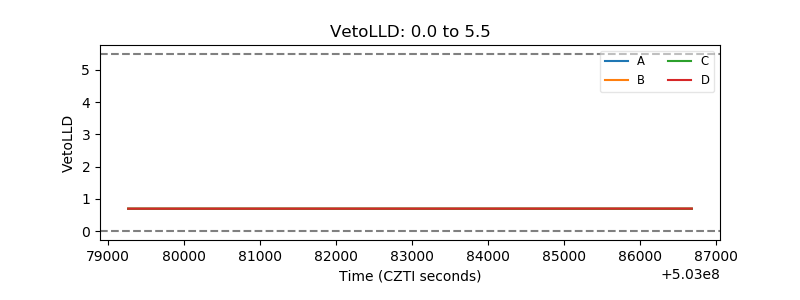

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

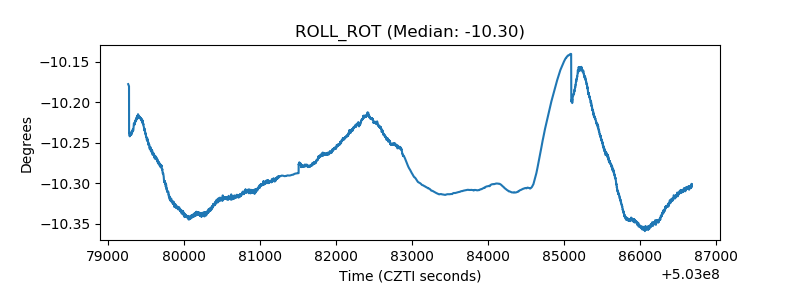

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

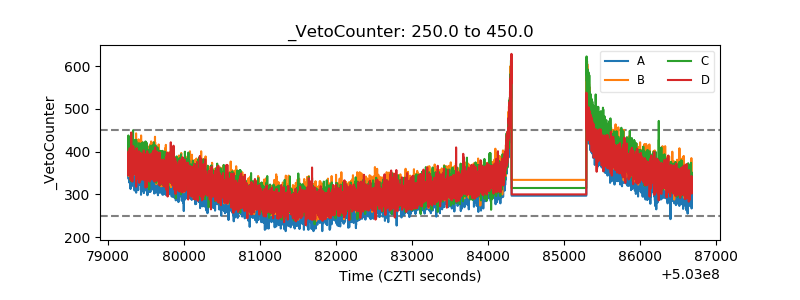

| Veto Counter |  |
