| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T16_9000006532_55199cztM0_level2.fits | modeM0/AS1A14_022T16_9000006532_55199cztM0_level2_quad_clean.evt |
| Size (bytes) | 449,642,880 | 105,192,000 |
| Size | 428.8 MB | 100.3 MB |
| Events in quadrant A | 4,001,191 | 690,004 |
| Events in quadrant B | 3,203,679 | 757,198 |
| Events in quadrant C | 3,555,106 | 663,292 |
| Events in quadrant D | 5,336,474 | 583,918 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16893 | 2 |
| B | 0 | 14793 | 2 |
| C | 0 | 15800 | 2 |
| D | 0 | 20949 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7043 | 147 | 2.087179% |
| B | 7043 | 73 | 1.036490% |
| C | 7044 | 80 | 1.135718% |
| D | 7044 | 553 | 7.850653% |

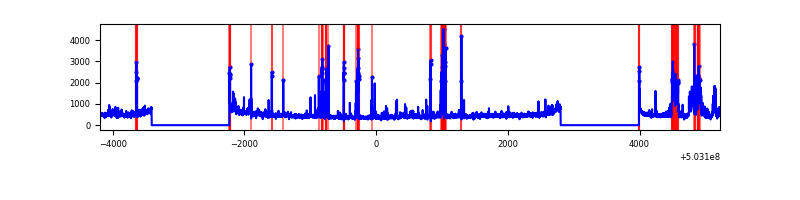

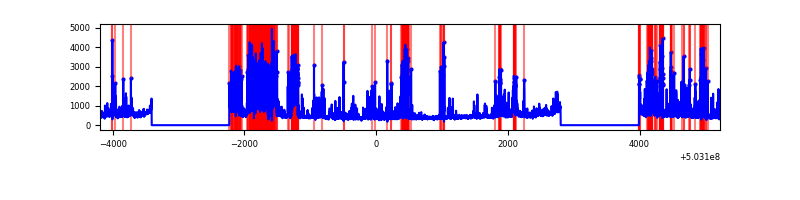

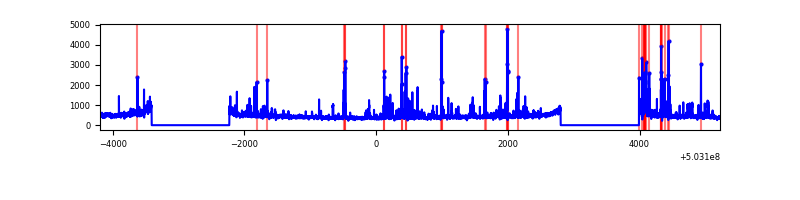

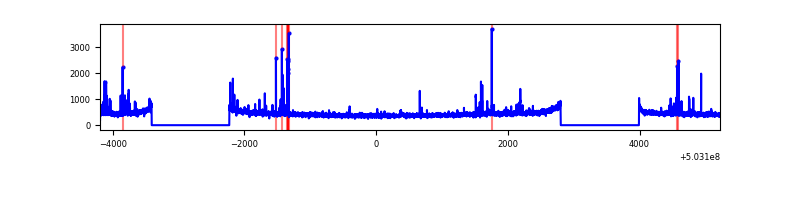

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9413 | 7045 | 120 | 120 | 1.27% | 1.70% |  |
| B | 9413 | 7045 | 12 | 12 | 0.13% | 0.17% |  |
| C | 9414 | 7046 | 42 | 42 | 0.45% | 0.60% |  |
| D | 9414 | 7046 | 448 | 448 | 4.76% | 6.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 115 | 509732 | 2691.56 | 764 | 747 | 189.1 |
| A | 0 | 8 | 251266 | 1324.77 | 764 | 747 | 189.1 |
| A | 4 | 249 | 92185 | 483.53 | 764 | 747 | 189.1 |
| B | 4 | 81 | 87562 | 523.21 | 764 | 734 | 166.0 |
| B | 10 | 247 | 41624 | 246.39 | 764 | 734 | 166.0 |
| B | 5 | 185 | 35760 | 211.06 | 764 | 734 | 166.0 |
| C | 13 | 3 | 178533 | 865.95 | 749 | 742 | 205.3 |
| C | 1 | 16 | 154518 | 748.98 | 749 | 742 | 205.3 |
| C | 14 | 254 | 139848 | 677.53 | 749 | 742 | 205.3 |
| D | 2 | 249 | 942729 | 4622.7 | 720 | 689 | 203.8 |
| D | 11 | 129 | 785151 | 3849.44 | 720 | 689 | 203.8 |
| D | 7 | 96 | 400433 | 1961.59 | 720 | 689 | 203.8 |

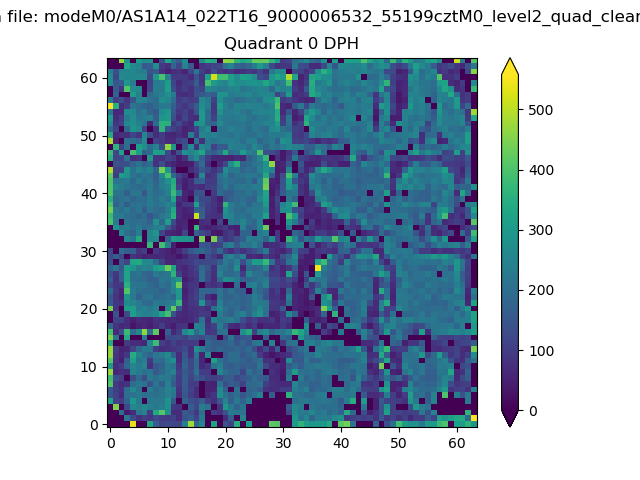

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

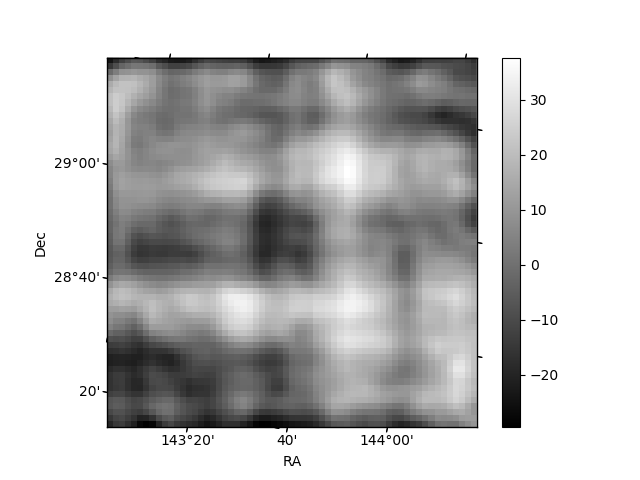

| Plot type | Count rate plots | Images |
|---|---|---|

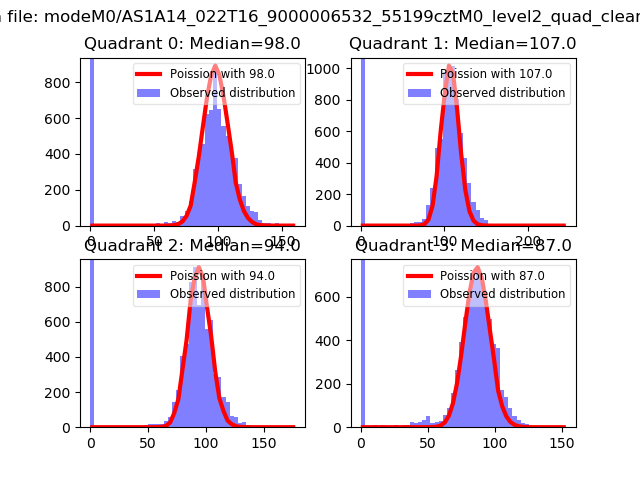

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

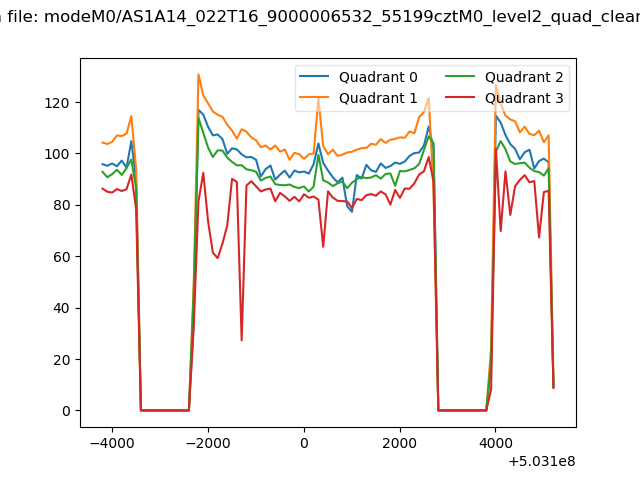

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

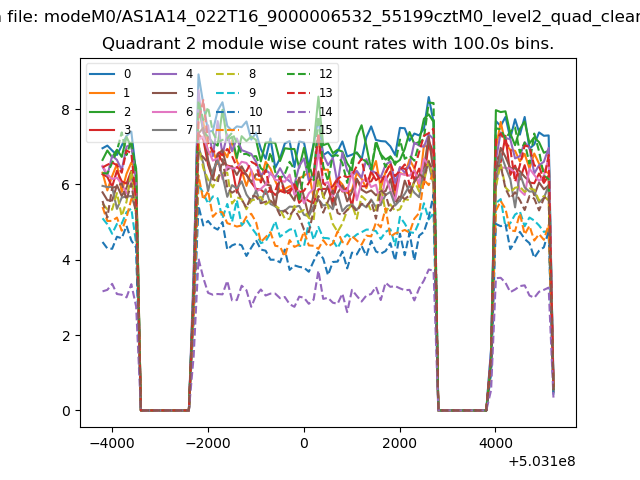

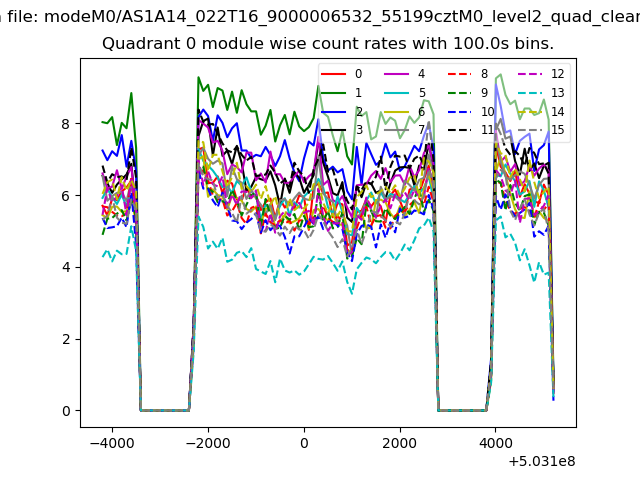

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

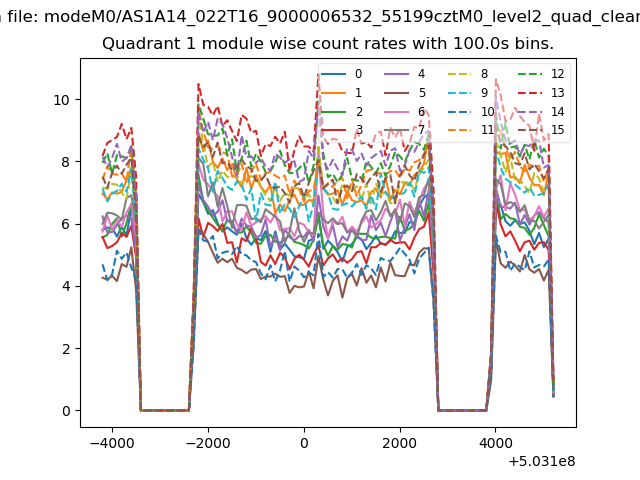

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

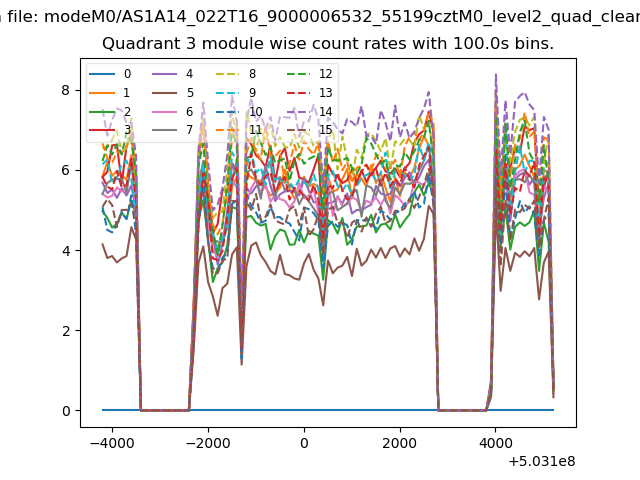

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

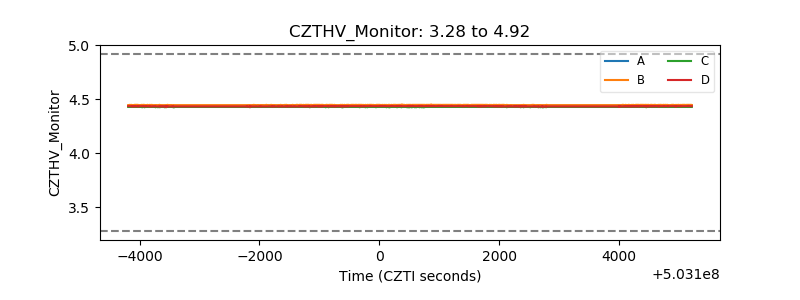

| CZT HV Monitor |  |

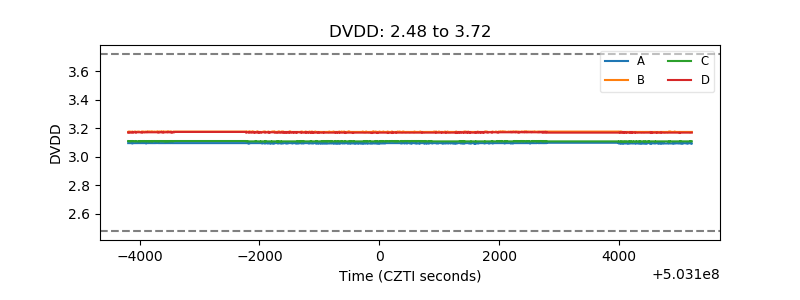

| D_VDD |  |

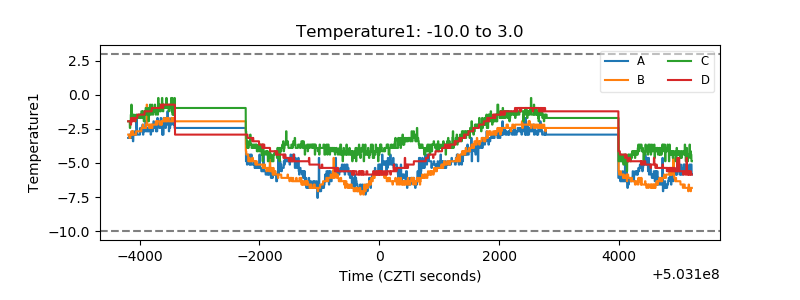

| Temperature 1 |  |

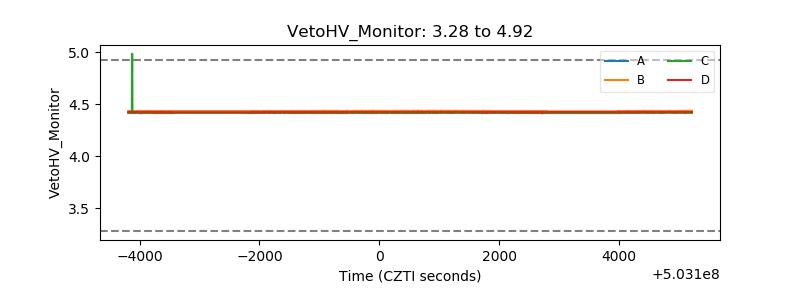

| Veto HV Monitor |  |
| Veto LLD |  |

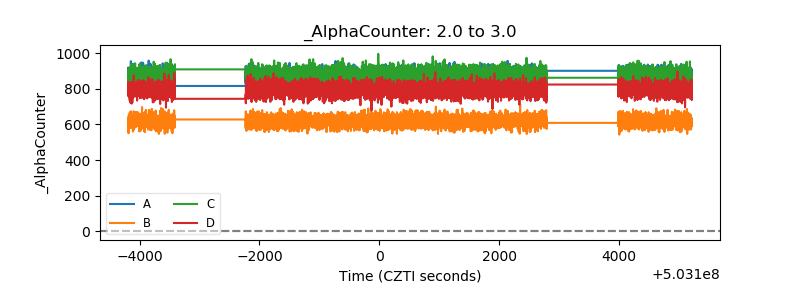

| Alpha Counter |  |

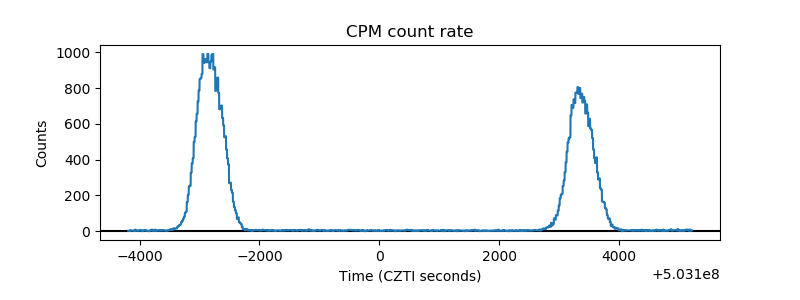

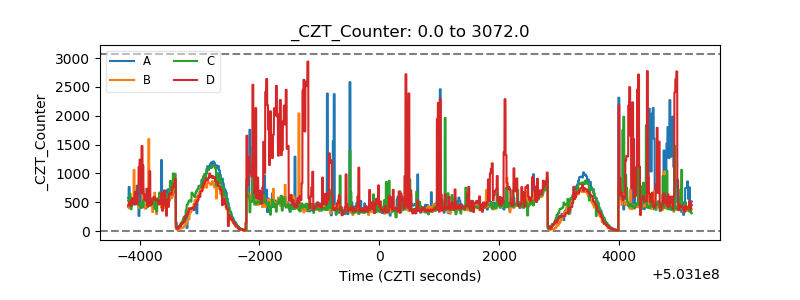

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

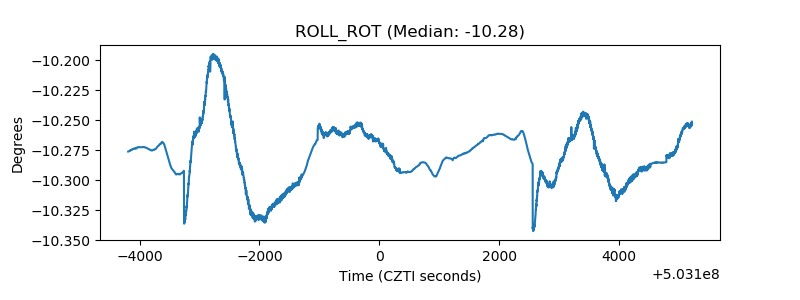

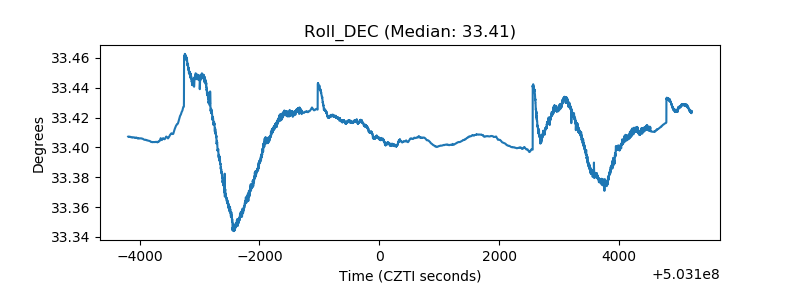

| _ROLL_ROT |  |
| _Roll_DEC |  |

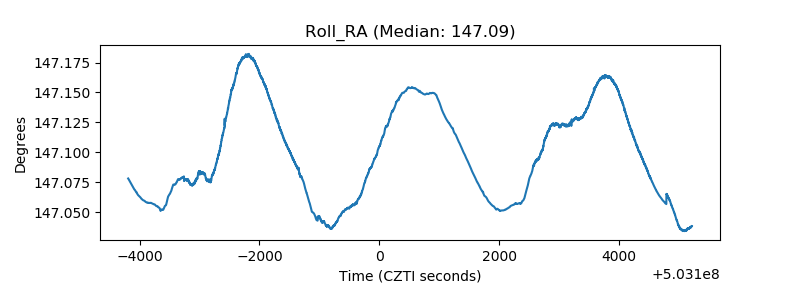

| _Roll_RA |  |

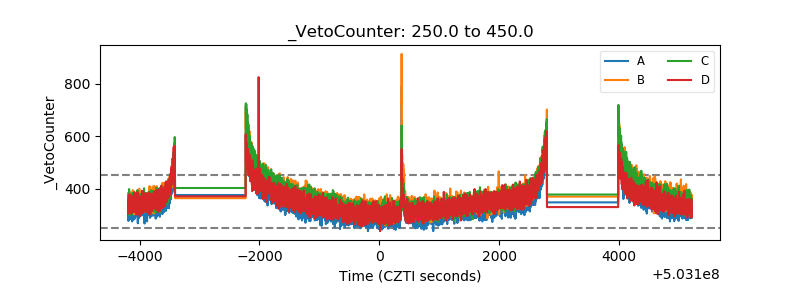

| Veto Counter |  |
