| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T16_9000006532_55202cztM0_level2.fits | modeM0/AS1A14_022T16_9000006532_55202cztM0_level2_quad_clean.evt |
| Size (bytes) | 530,043,840 | 130,377,600 |
| Size | 505.5 MB | 124.3 MB |
| Events in quadrant A | 4,122,893 | 894,519 |
| Events in quadrant B | 3,752,201 | 899,992 |
| Events in quadrant C | 3,946,212 | 838,045 |
| Events in quadrant D | 7,174,062 | 756,719 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 164 | 0 |
| B | 0 | 164 | 0 |
| C | 0 | 164 | 0 |
| D | 0 | 164 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18312 | 2 |
| B | 0 | 17442 | 2 |
| C | 0 | 18102 | 2 |
| D | 0 | 27314 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8043 | 216 | 2.685565% |
| B | 8043 | 248 | 3.083427% |
| C | 8044 | 117 | 1.454500% |
| D | 8044 | 987 | 12.270015% |

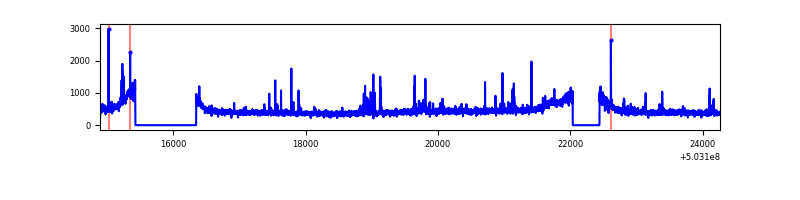

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9368 | 8045 | 20 | 20 | 0.21% | 0.25% |  |
| B | 9368 | 8045 | 3 | 3 | 0.03% | 0.04% |  |
| C | 9369 | 8046 | 28 | 28 | 0.30% | 0.35% |  |
| D | 9369 | 8046 | 726 | 726 | 7.75% | 9.02% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 161422 | 661.02 | 942 | 918 | 242.8 |
| A | 3 | 45 | 78871 | 321.04 | 942 | 918 | 242.8 |
| A | 0 | 8 | 74854 | 304.5 | 942 | 918 | 242.8 |
| B | 10 | 247 | 56091 | 278.19 | 907 | 877 | 198.5 |
| B | 4 | 81 | 50846 | 251.76 | 907 | 877 | 198.5 |
| B | 12 | 111 | 23886 | 115.93 | 907 | 877 | 198.5 |
| C | 13 | 3 | 239344 | 928.35 | 902 | 893 | 256.9 |
| C | 6 | 13 | 53532 | 204.94 | 902 | 893 | 256.9 |
| C | 12 | 250 | 36029 | 136.79 | 902 | 893 | 256.9 |
| D | 2 | 249 | 1681038 | 6437.58 | 882 | 842 | 261.0 |
| D | 11 | 129 | 1044267 | 3997.82 | 882 | 842 | 261.0 |
| D | 8 | 160 | 353351 | 1350.62 | 882 | 842 | 261.0 |

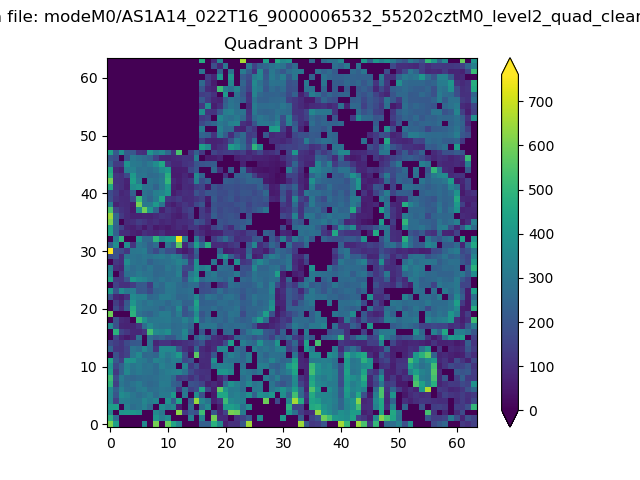

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

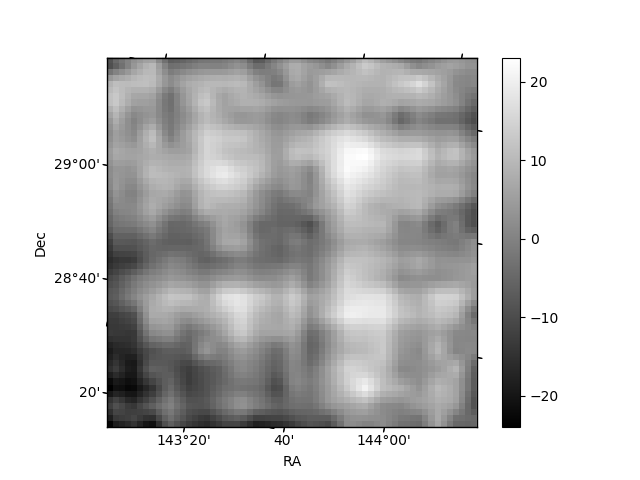

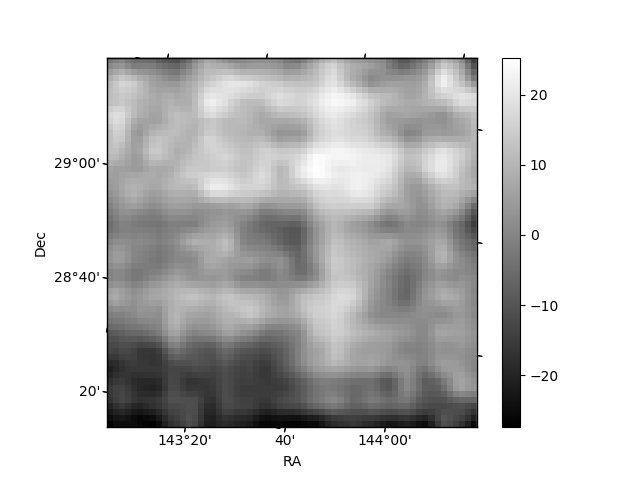

| Plot type | Count rate plots | Images |
|---|---|---|

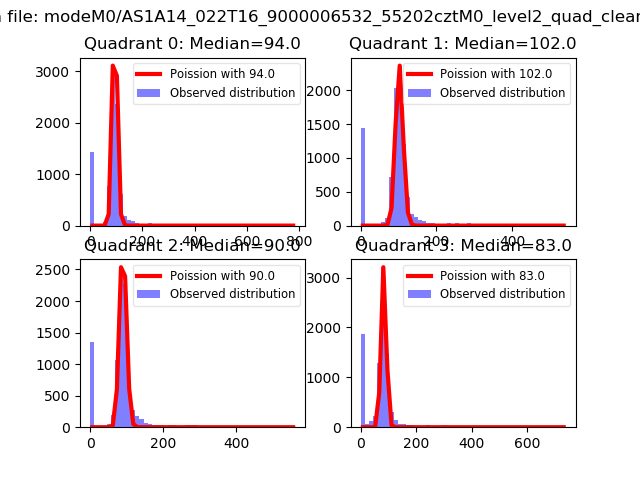

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

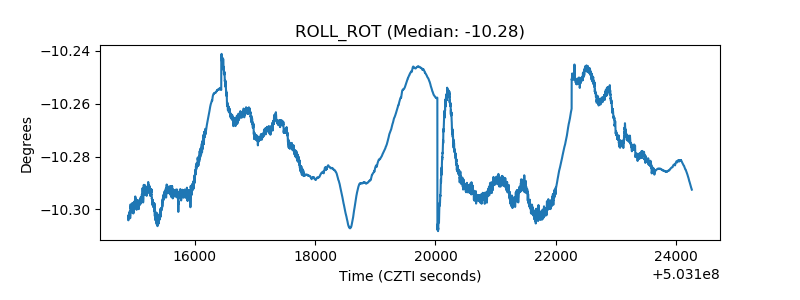

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

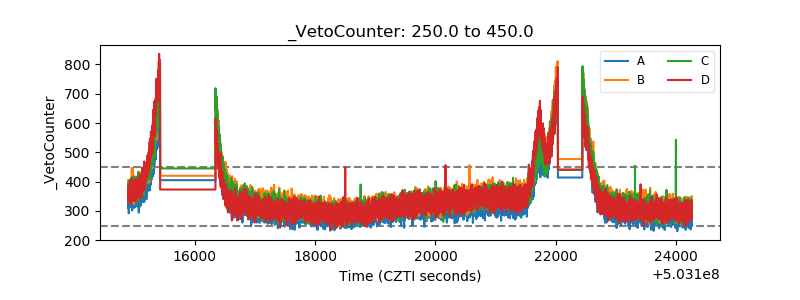

| Veto Counter |  |
