| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T16_9000006532_55214cztM0_level2.fits | modeM0/AS1A14_022T16_9000006532_55214cztM0_level2_quad_clean.evt |
| Size (bytes) | 504,964,800 | 105,387,840 |
| Size | 481.6 MB | 100.5 MB |
| Events in quadrant A | 3,535,772 | 701,746 |
| Events in quadrant B | 3,601,100 | 755,014 |
| Events in quadrant C | 5,095,380 | 638,217 |
| Events in quadrant D | 5,900,115 | 594,171 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15931 | 2 |
| B | 0 | 16108 | 2 |
| C | 0 | 20406 | 2 |
| D | 0 | 22674 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7202 | 117 | 1.624549% |
| B | 7203 | 158 | 2.193530% |
| C | 7203 | 503 | 6.983201% |
| D | 7203 | 545 | 7.566292% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

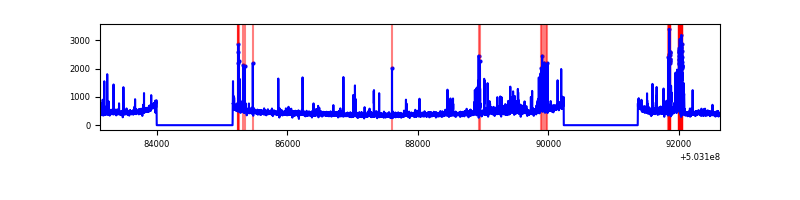

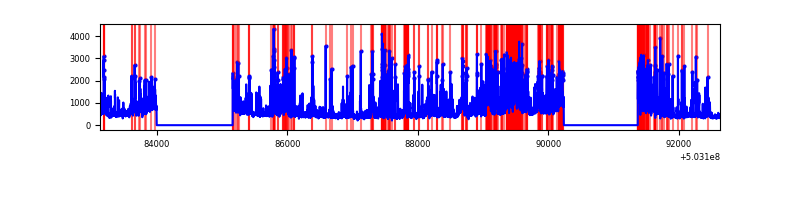

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9502 | 7204 | 68 | 68 | 0.72% | 0.94% |  |
| B | 9503 | 7205 | 65 | 65 | 0.68% | 0.90% |  |
| C | 9503 | 7205 | 434 | 434 | 4.57% | 6.02% |  |
| D | 9503 | 7205 | 437 | 437 | 4.60% | 6.07% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 313781 | 1610.96 | 781 | 761 | 194.3 |
| A | 4 | 205 | 42205 | 213.29 | 781 | 761 | 194.3 |
| A | 4 | 3 | 30903 | 155.13 | 781 | 761 | 194.3 |
| B | 5 | 172 | 267322 | 1601.31 | 777 | 748 | 166.5 |
| B | 10 | 247 | 93547 | 557.44 | 777 | 748 | 166.5 |
| B | 4 | 81 | 85978 | 511.98 | 777 | 748 | 166.5 |
| C | 10 | 22 | 532355 | 2592.92 | 747 | 742 | 205.0 |
| C | 13 | 3 | 469589 | 2286.78 | 747 | 742 | 205.0 |
| C | 12 | 254 | 441042 | 2147.54 | 747 | 742 | 205.0 |
| D | 11 | 129 | 2095005 | 9973.92 | 736 | 705 | 210.0 |
| D | 2 | 249 | 666022 | 3168.51 | 736 | 705 | 210.0 |
| D | 3 | 12 | 77670 | 366.54 | 736 | 705 | 210.0 |

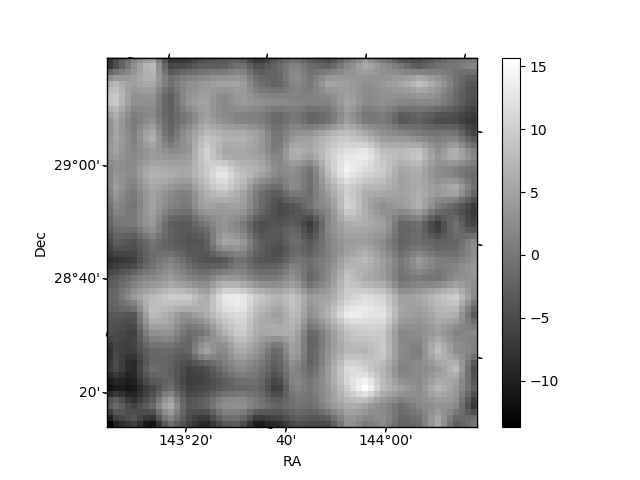

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

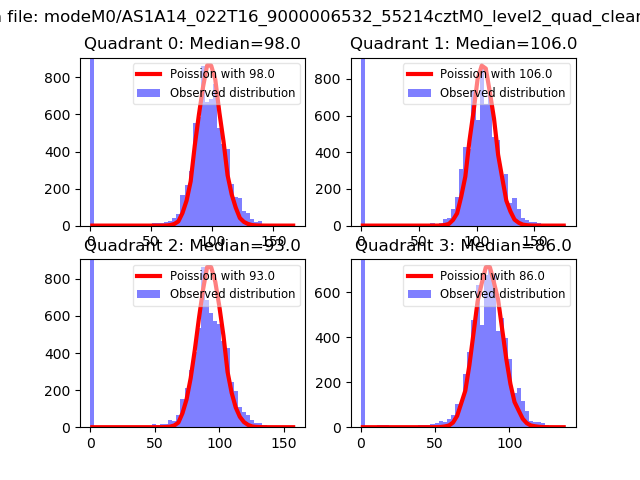

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

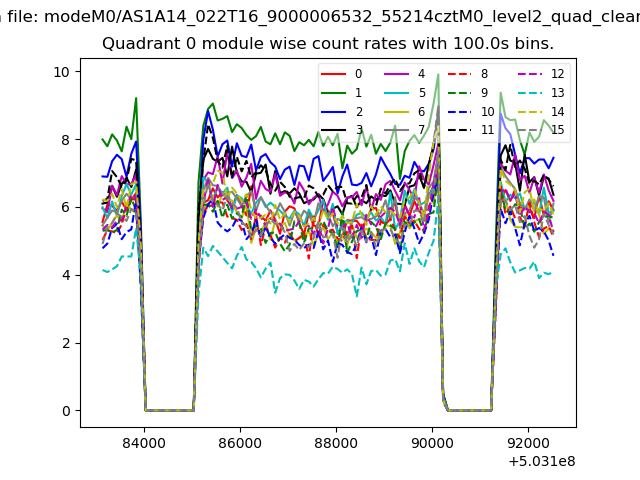

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

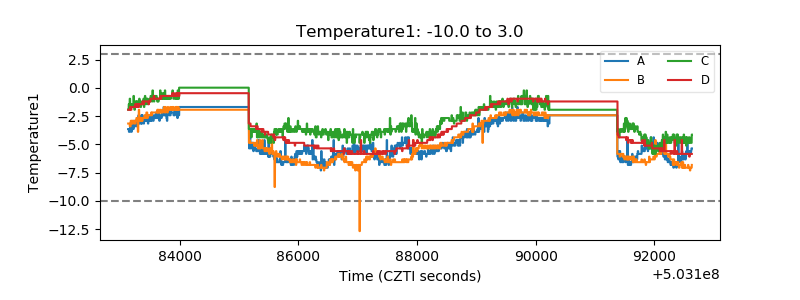

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

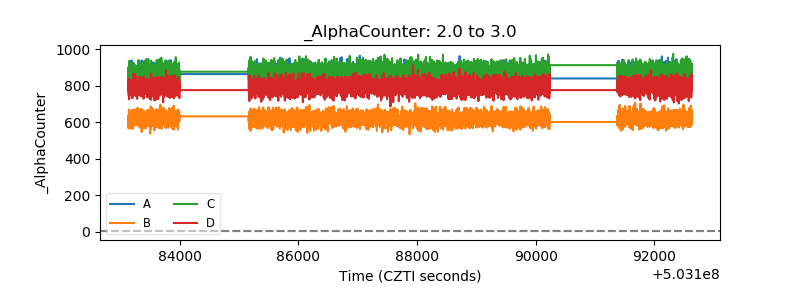

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

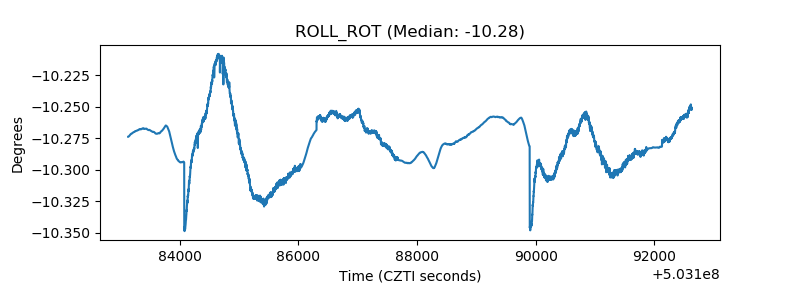

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
