| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_022T16_9000006532_55216cztM0_level2.fits | modeM0/AS1A14_022T16_9000006532_55216cztM0_level2_quad_clean.evt |
| Size (bytes) | 501,353,280 | 101,229,120 |
| Size | 478.1 MB | 96.5 MB |
| Events in quadrant A | 3,225,504 | 675,972 |
| Events in quadrant B | 3,075,459 | 719,341 |
| Events in quadrant C | 5,741,898 | 599,600 |
| Events in quadrant D | 5,959,290 | 571,914 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15241 | 2 |
| B | 0 | 14896 | 2 |
| C | 0 | 22246 | 2 |
| D | 0 | 22896 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7160 | 53 | 0.740223% |
| B | 7160 | 102 | 1.424581% |
| C | 7160 | 613 | 8.561453% |
| D | 7160 | 482 | 6.731844% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7905 | 7161 | 20 | 20 | 0.25% | 0.28% |  |
| B | 7905 | 7161 | 4 | 4 | 0.05% | 0.06% |  |
| C | 7905 | 7161 | 554 | 554 | 7.01% | 7.74% |  |
| D | 7905 | 7161 | 438 | 438 | 5.54% | 6.12% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 154563 | 824.03 | 757 | 738 | 186.7 |
| A | 3 | 45 | 47862 | 252.44 | 757 | 738 | 186.7 |
| A | 4 | 3 | 21086 | 109.0 | 757 | 738 | 186.7 |
| B | 0 | 182 | 31298 | 189.25 | 748 | 719 | 161.6 |
| B | 5 | 185 | 26134 | 157.29 | 748 | 719 | 161.6 |
| B | 4 | 81 | 21433 | 128.2 | 748 | 719 | 161.6 |
| C | 12 | 254 | 1511996 | 7755.2 | 709 | 705 | 194.9 |
| C | 14 | 254 | 904617 | 4638.43 | 709 | 705 | 194.9 |
| C | 15 | 193 | 139085 | 710.1 | 709 | 705 | 194.9 |
| D | 11 | 129 | 2634531 | 13107.18 | 709 | 678 | 200.9 |
| D | 2 | 249 | 231592 | 1149.13 | 709 | 678 | 200.9 |
| D | 2 | 207 | 82994 | 409.64 | 709 | 678 | 200.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

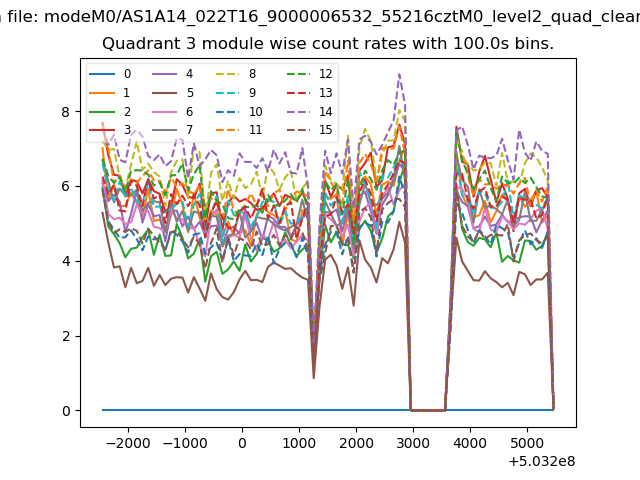

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

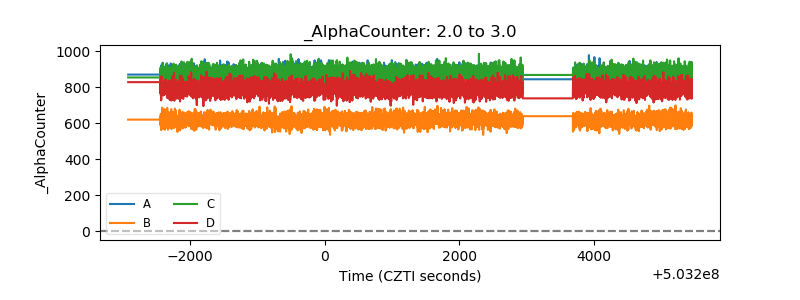

| Alpha Counter |  |
| _CPM_Rate |  |

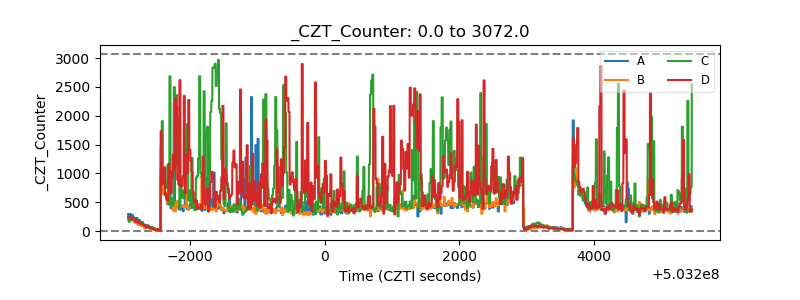

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

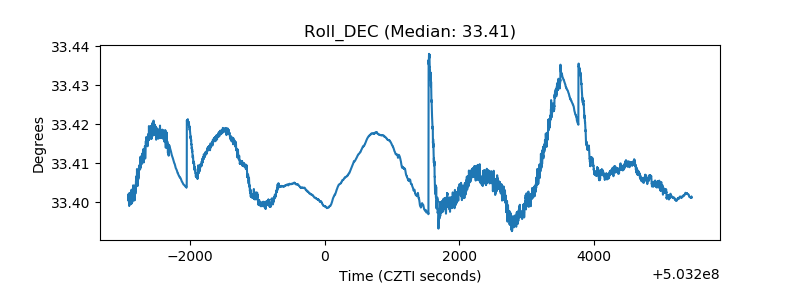

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
