| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_009T01_9000006534_55285cztM0_level2.fits | modeM0/AS1A14_009T01_9000006534_55285cztM0_level2_quad_clean.evt |
| Size (bytes) | 408,487,680 | 92,232,000 |
| Size | 389.6 MB | 88.0 MB |
| Events in quadrant A | 2,877,912 | 616,326 |
| Events in quadrant B | 3,968,519 | 610,810 |
| Events in quadrant C | 3,562,861 | 578,459 |
| Events in quadrant D | 4,220,680 | 546,970 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13208 | 1 |
| B | 0 | 16339 | 1 |
| C | 0 | 15413 | 1 |
| D | 0 | 16875 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6306 | 72 | 1.141770% |
| B | 6307 | 500 | 7.927699% |
| C | 6307 | 203 | 3.218646% |
| D | 6306 | 252 | 3.996194% |

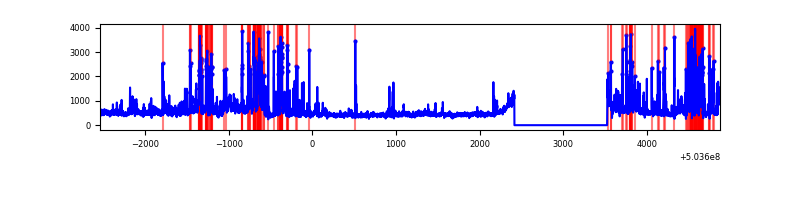

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7417 | 6308 | 21 | 21 | 0.28% | 0.33% |  |
| B | 7418 | 6309 | 353 | 353 | 4.76% | 5.60% |  |
| C | 7418 | 6309 | 127 | 127 | 1.71% | 2.01% |  |
| D | 7417 | 6308 | 215 | 215 | 2.90% | 3.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 111177 | 671.0 | 670 | 652 | 164.7 |
| A | 7 | 7 | 52697 | 315.97 | 670 | 652 | 164.7 |
| A | 4 | 3 | 43902 | 262.57 | 670 | 652 | 164.7 |
| B | 10 | 14 | 1179893 | 8615.66 | 631 | 610 | 136.9 |
| B | 0 | 199 | 130231 | 946.99 | 631 | 610 | 136.9 |
| B | 2 | 249 | 71382 | 517.05 | 631 | 610 | 136.9 |
| C | 13 | 3 | 496397 | 2772.13 | 649 | 644 | 178.8 |
| C | 3 | 248 | 237379 | 1323.76 | 649 | 644 | 178.8 |
| C | 10 | 22 | 111382 | 619.22 | 649 | 644 | 178.8 |
| D | 11 | 129 | 714602 | 3875.41 | 649 | 620 | 184.2 |
| D | 7 | 70 | 356252 | 1930.33 | 649 | 620 | 184.2 |
| D | 5 | 38 | 172621 | 933.6 | 649 | 620 | 184.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

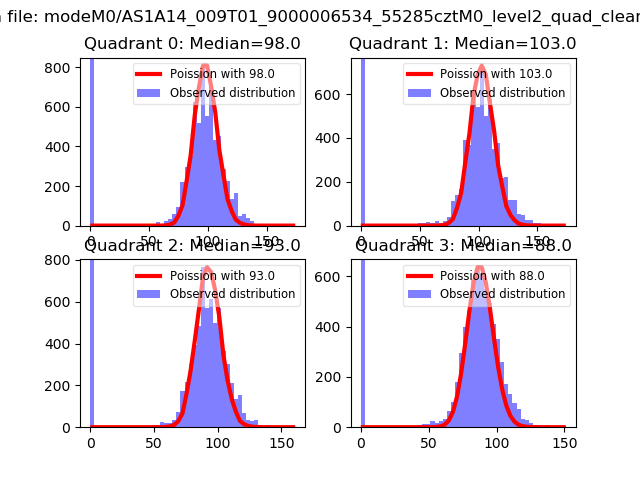

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

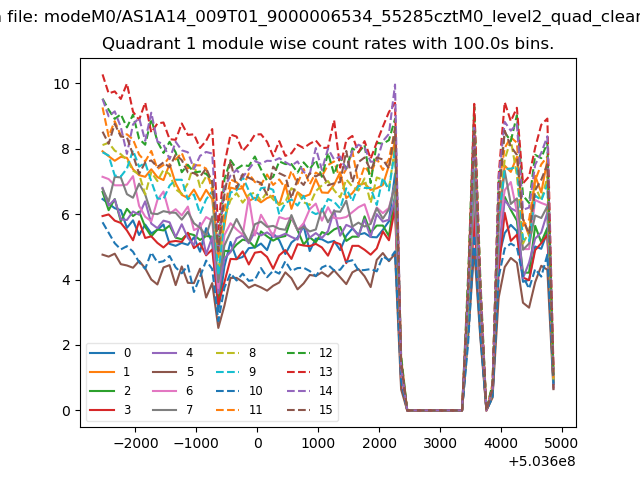

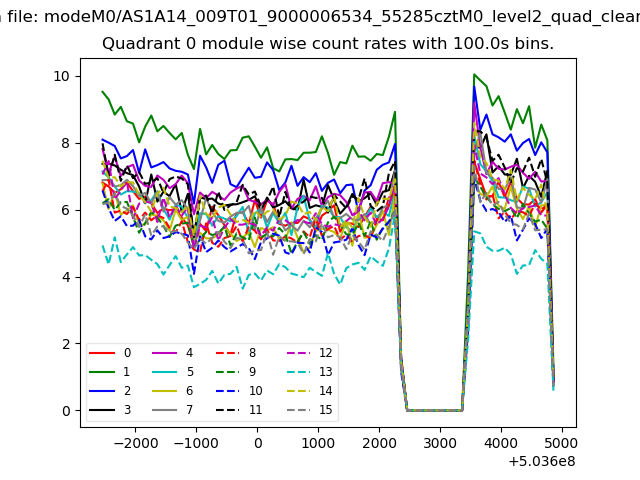

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

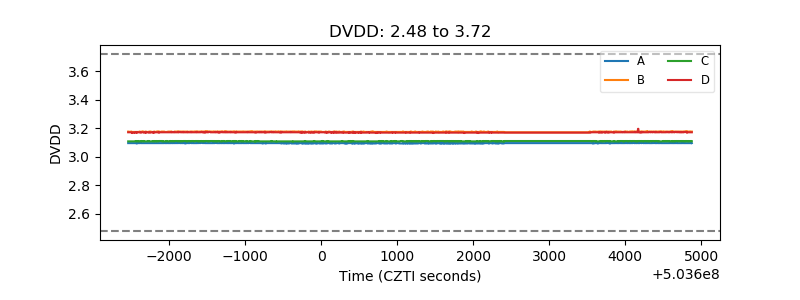

| D_VDD |  |

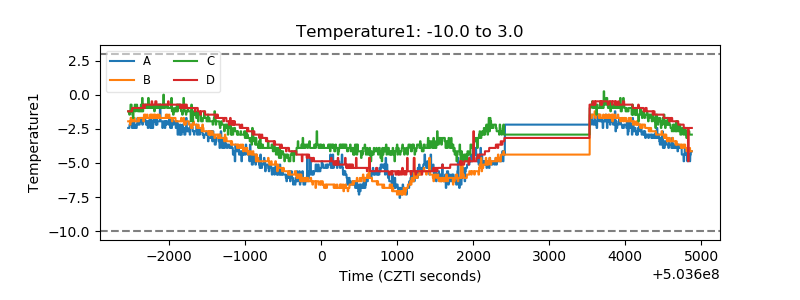

| Temperature 1 |  |
| Veto HV Monitor |  |

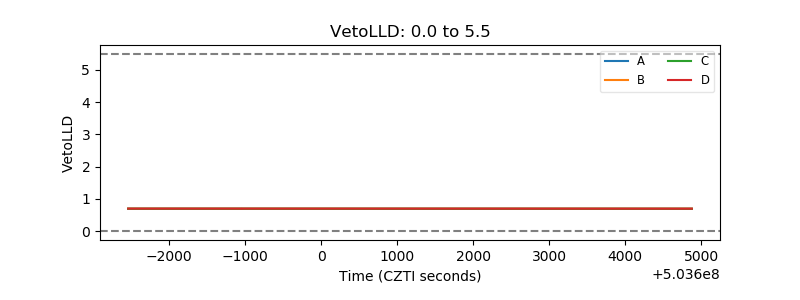

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
