| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A14_009T01_9000006534_55286cztM0_level2.fits | modeM0/AS1A14_009T01_9000006534_55286cztM0_level2_quad_clean.evt |
| Size (bytes) | 408,202,560 | 93,795,840 |
| Size | 389.3 MB | 89.5 MB |
| Events in quadrant A | 2,908,618 | 626,881 |
| Events in quadrant B | 3,721,771 | 628,741 |
| Events in quadrant C | 3,307,672 | 597,669 |
| Events in quadrant D | 4,680,123 | 545,240 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13367 | 3 |
| B | 0 | 15782 | 3 |
| C | 0 | 14478 | 3 |
| D | 0 | 18340 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6322 | 43 | 0.680165% |
| B | 6322 | 431 | 6.817463% |
| C | 6322 | 107 | 1.692502% |
| D | 6322 | 378 | 5.979121% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

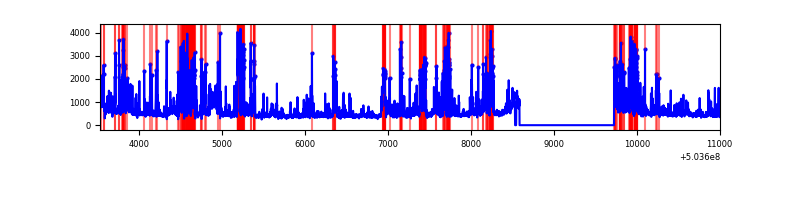

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7478 | 6325 | 18 | 18 | 0.24% | 0.28% |  |
| B | 7478 | 6325 | 324 | 324 | 4.33% | 5.12% |  |
| C | 7478 | 6325 | 72 | 72 | 0.96% | 1.14% |  |
| D | 7478 | 6325 | 313 | 313 | 4.19% | 4.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 8 | 95534 | 567.06 | 676 | 660 | 167.3 |
| A | 4 | 205 | 56100 | 331.36 | 676 | 660 | 167.3 |
| A | 4 | 3 | 48320 | 284.86 | 676 | 660 | 167.3 |
| B | 10 | 14 | 920055 | 6775.25 | 638 | 614 | 135.7 |
| B | 0 | 199 | 144063 | 1057.06 | 638 | 614 | 135.7 |
| B | 5 | 185 | 56796 | 414.0 | 638 | 614 | 135.7 |
| C | 13 | 3 | 479364 | 2603.91 | 664 | 654 | 183.8 |
| C | 12 | 2 | 62585 | 336.87 | 664 | 654 | 183.8 |
| C | 14 | 254 | 41423 | 221.76 | 664 | 654 | 183.8 |
| D | 11 | 129 | 1124297 | 6139.39 | 648 | 619 | 183.0 |
| D | 11 | 176 | 285585 | 1556.96 | 648 | 619 | 183.0 |
| D | 7 | 70 | 266798 | 1454.31 | 648 | 619 | 183.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

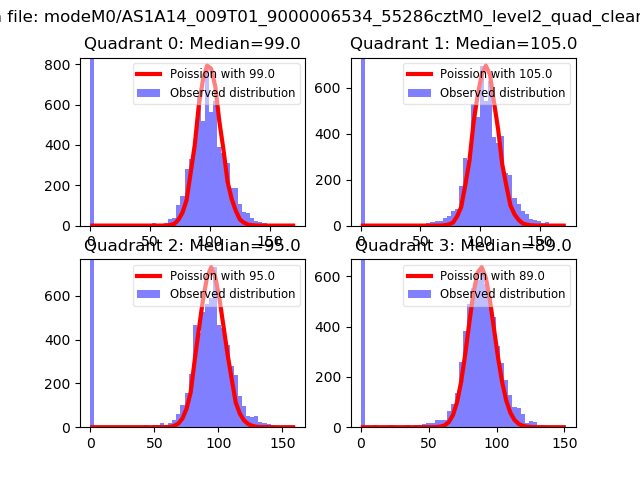

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

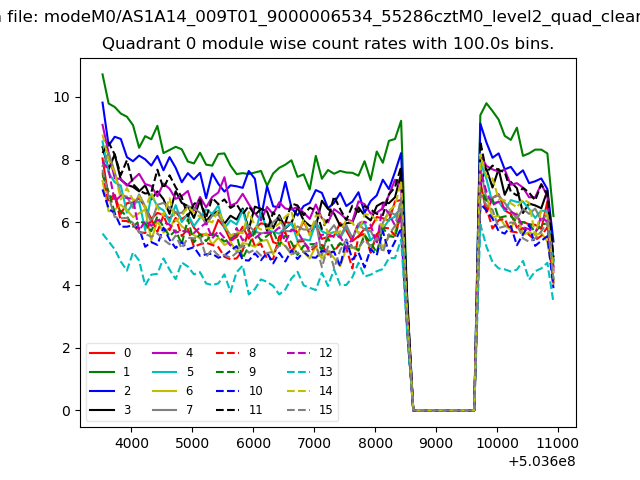

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

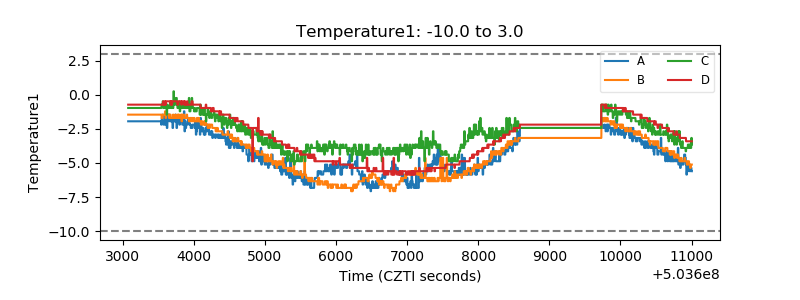

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

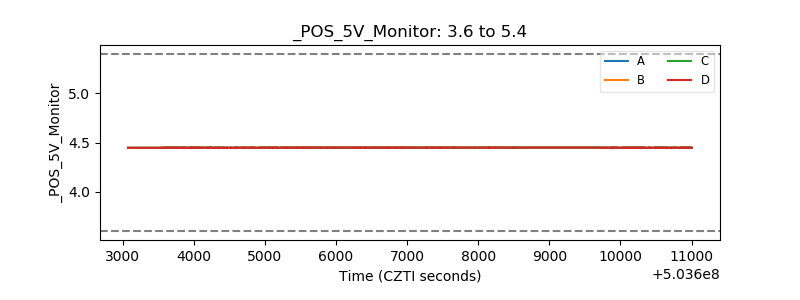

| +5 Volts monitor |  |

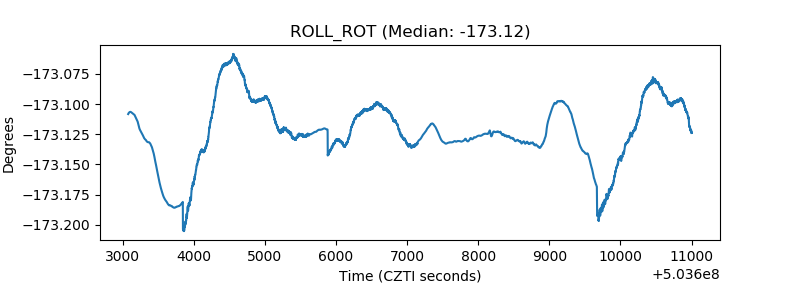

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

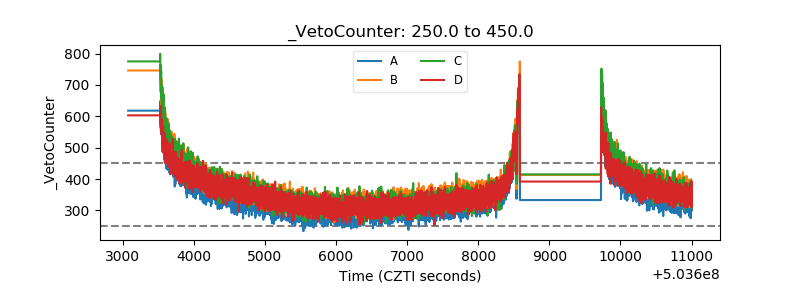

| Veto Counter |  |
